Trailer Lamp Control Module Replacement

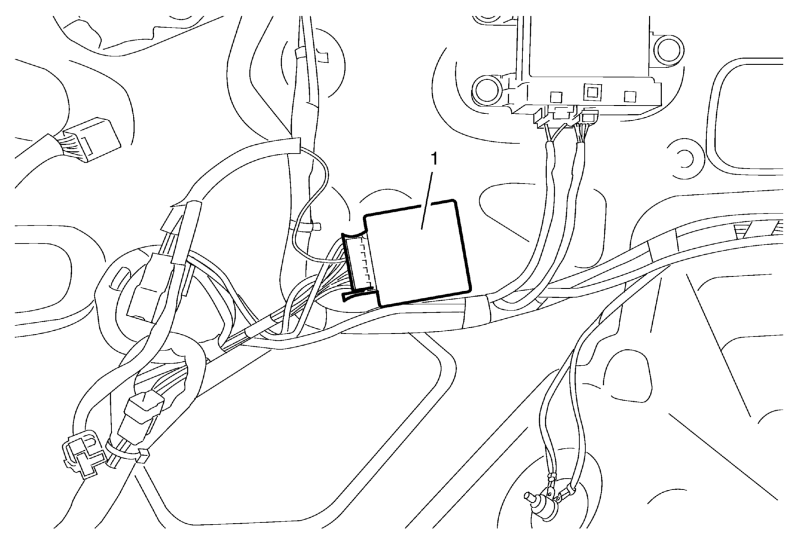

Fig 1: Trailer Lamp Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (without Start/Stop System) . Remove the body side trim panel - left side. Refer to Body Side Trim Panel Replacement - Left Side .
1	Trailer Lamp Control Module Procedures Disconnect the electrical connectors. After repair, refer to Control Module References for programming and set up information.

Callout

Component Name

Preliminary Procedures

Trailer Lamp Control Module

Procedures

Disconnect the electrical connectors.
After repair, refer to Control Module References for programming and set up information.
