Tail Lamp Bulb Replacement

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

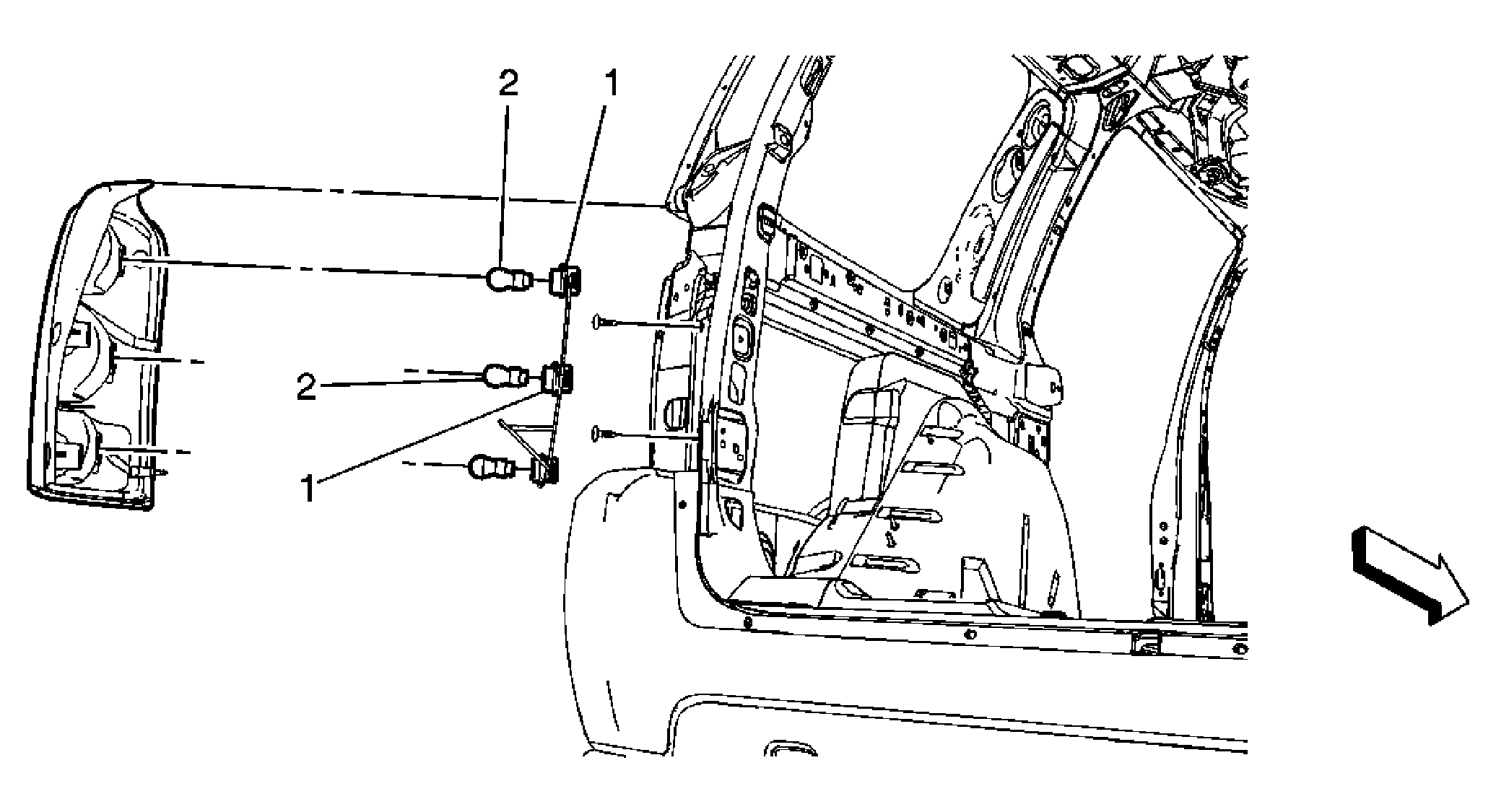

Fig 1: Tail Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove either the LR or RR tail Lamp assembly. Refer to Tail Lamp Replacement .
1	Tail Lamp Bulb Sockets Tip: Turn the bulb sockets counter-clockwise and remove from the lamp assembly.
2	Tail Lamp Bulbs (Qty: 2)
