Moveable Window Wiring Schematics
>>
Moveable Windows
Moveable Windows

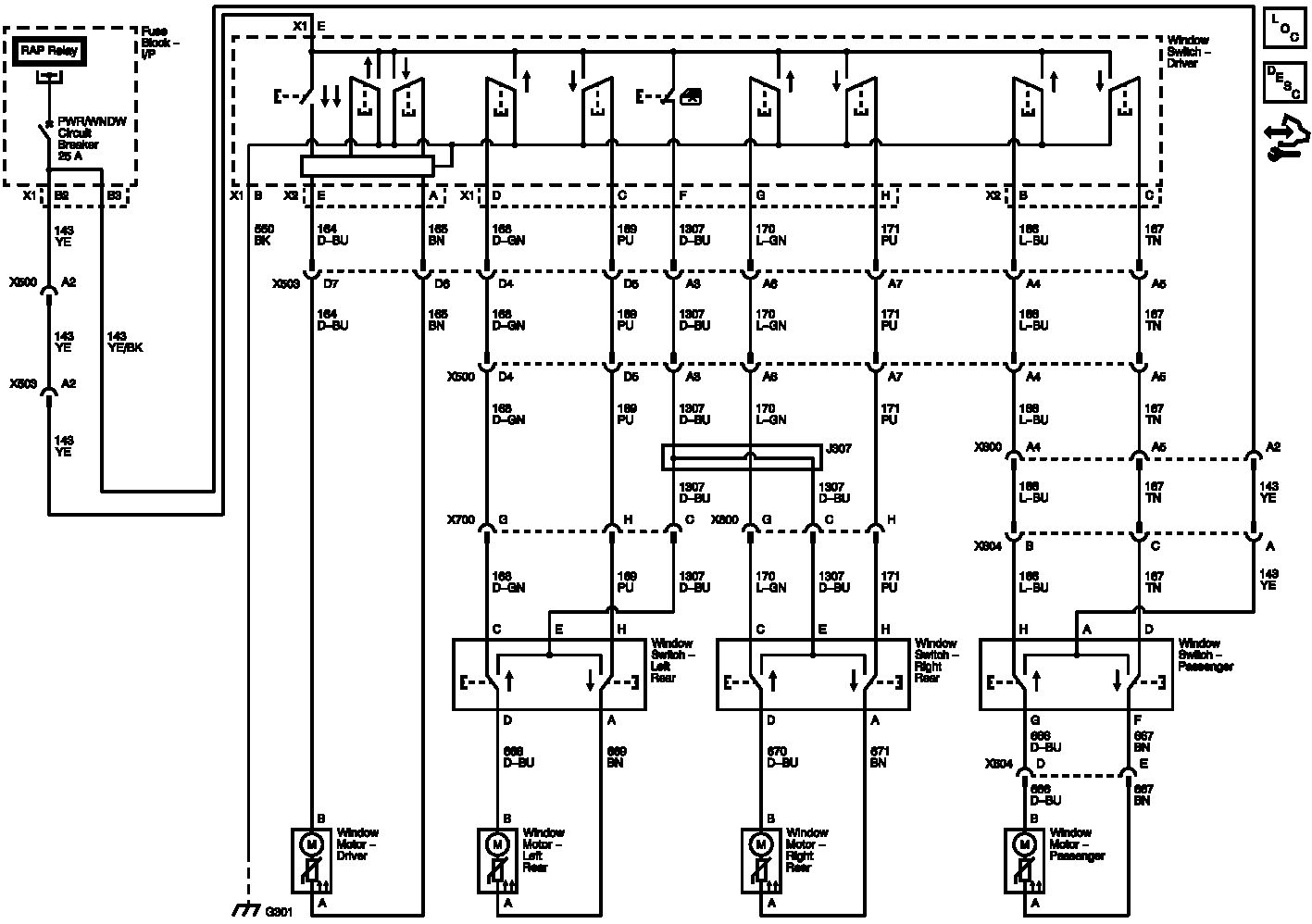

Fig 1: Moveable Windows Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
