Installation Procedure

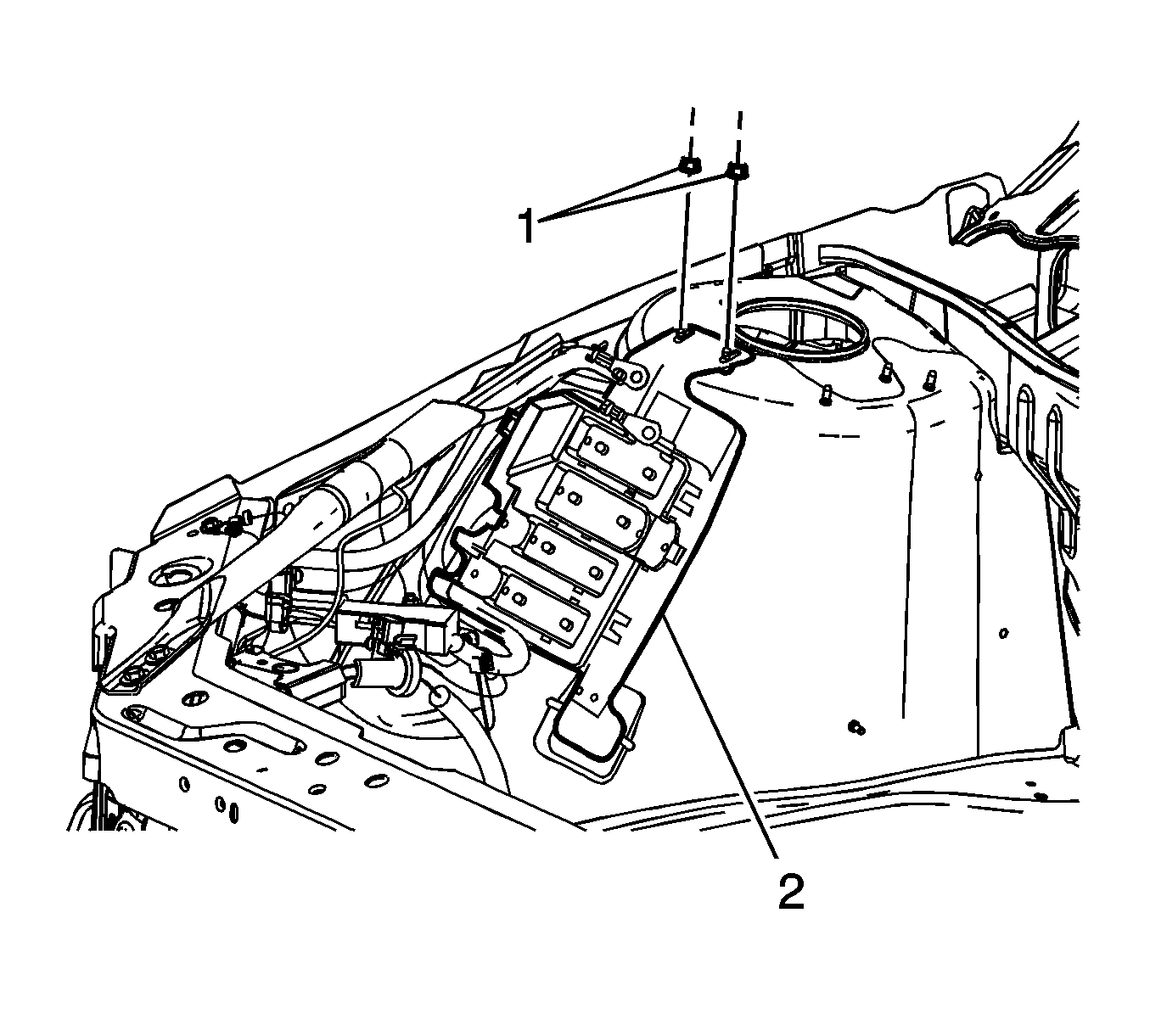

    Fig 1: Identifying Fasteners & Electrical Center Bracket
    GM1592792Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install fasteners (1) securing the electrical center (2) to vehicle.

    Tighten

    Tighten the fasteners to 10 N.m (86 lb in).

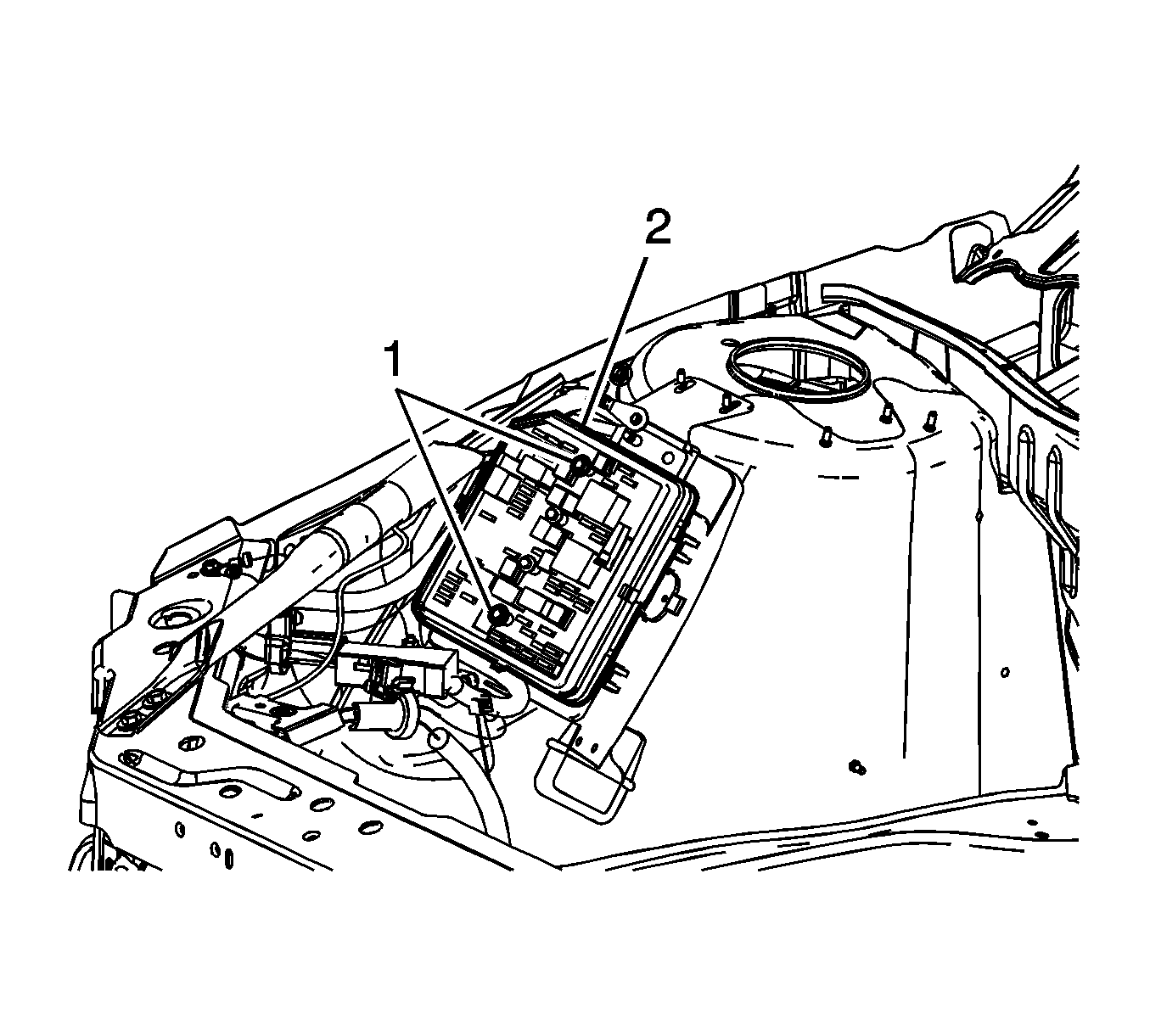

    2. Fig 2: Identifying Fasteners & Electrical Center Board
    GM1592791Courtesy of GENERAL MOTORS COMPANY
  2. Install the fasteners (1) securing the electrical center board (2).

    Tighten

    Tighten the fasteners to 7 N.m (62 lb in).

  3. Connect the positive battery cable. Refer to Battery Positive and Negative Cable Replacement .

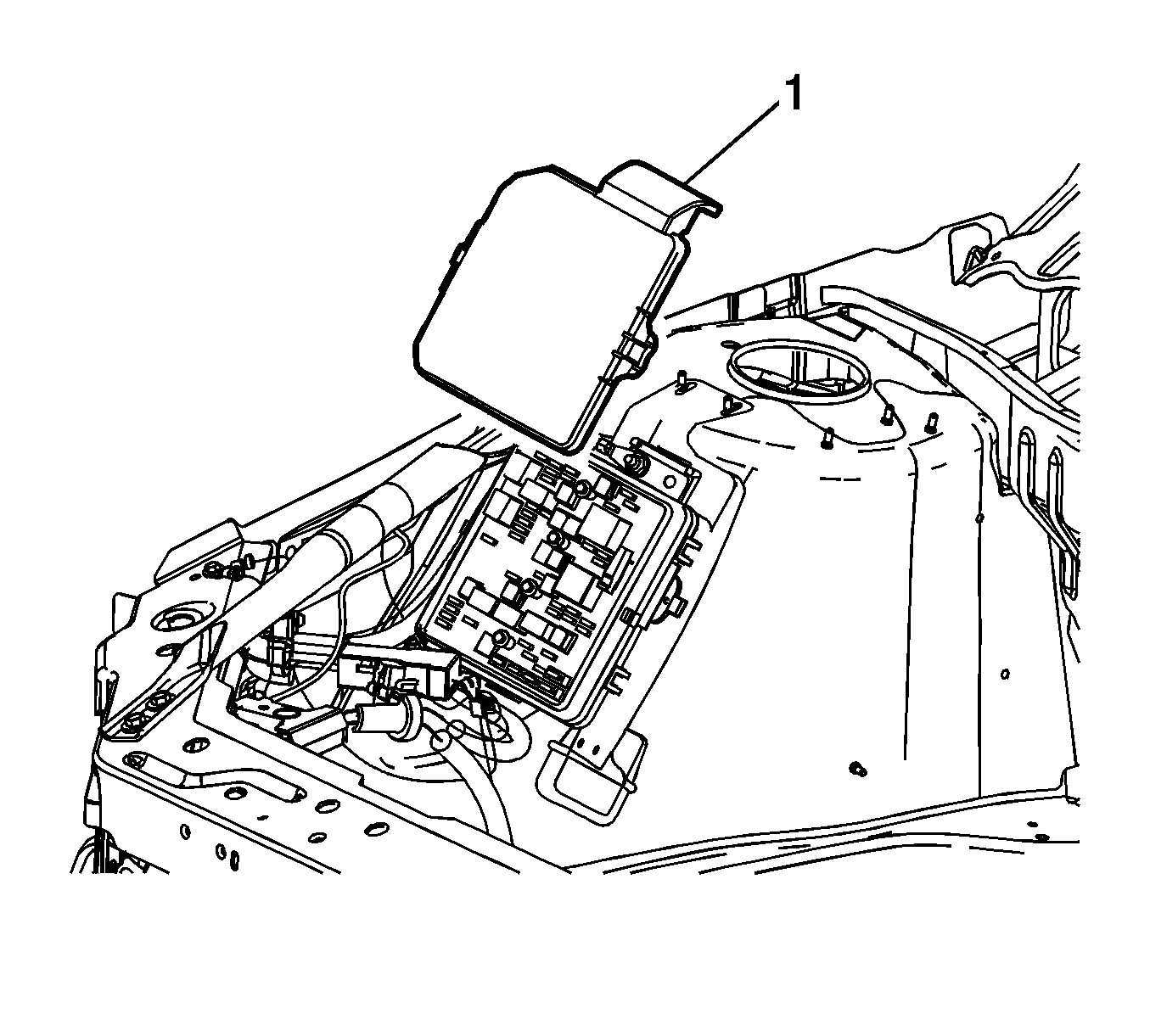

    4. Fig 3: Identifying Electrical Center Cover
    GM1592786Courtesy of GENERAL MOTORS COMPANY
  4. Install the electrical center cover (1).
