Child Restraint Tether Anchor Replacement (Impala)

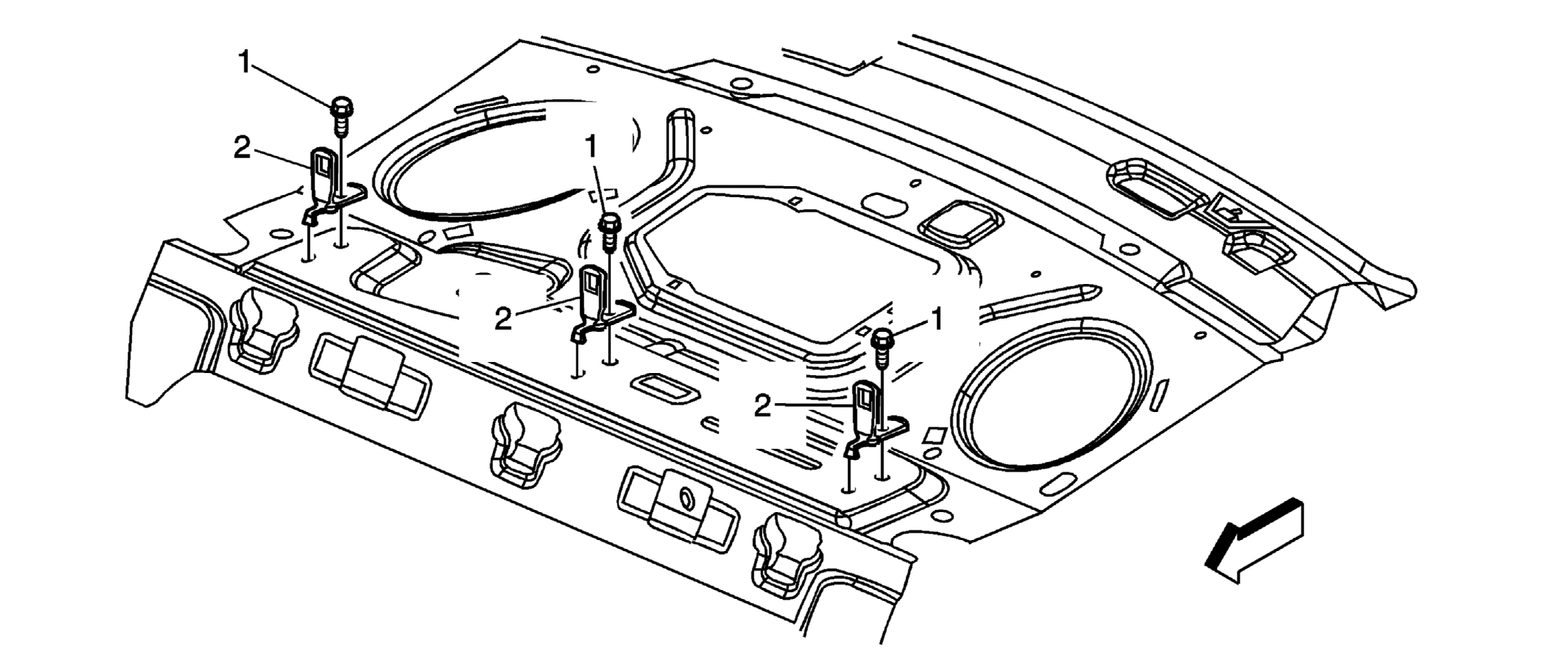

Fig 1: Child Restraint Tether Anchor (Impala)

Courtesy of GENERAL MOTORS COMPANY

Child Restraint Tether Anchor Replacement (Impala)

Callout	Component Name
Preliminary Procedure  Remove the trim panel, rear window shelf. Refer to Rear Window Shelf Trim Panel Replacement .
1	Child Seat Restraint System Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten  24 N.m (18 lb ft)
2	Child Seat Restraint System Bracket
