Steering Wheel Inflatable Restraint Module Replacement

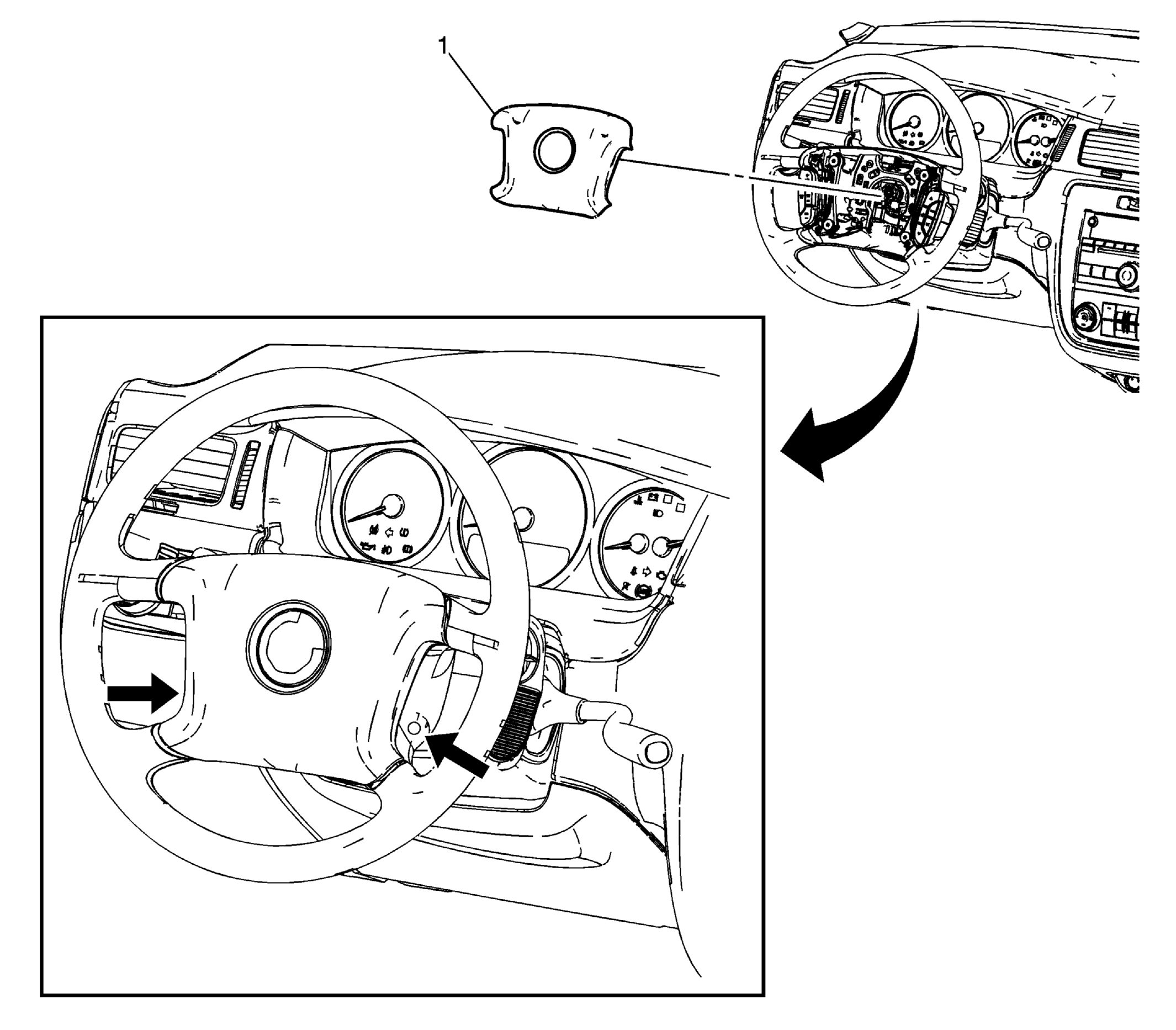

Fig 1: Steering Wheel Inflatable Restraint Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . WARNING: Refer to SIR Inflator Module Handling and Storage Warning . Preliminary Procedure Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
1	Inflatable Restraint Steering Wheel Module Assembly TIP: Insert a small blunt-ended tool through the access openings, on the left and right of the steering wheel, push on the blunt-ended tool to release the steering wheel inflator from the steering wheel.
