Installation Procedure

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

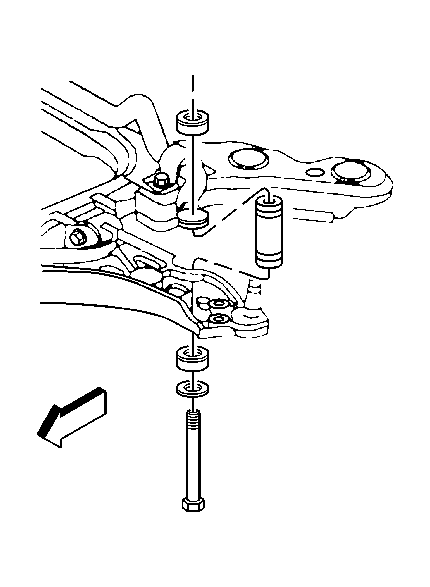

    Fig 1: Removing/Installing Stabilizer Shaft Link Bolt
    GM155688Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FUEL TANK STRAP FASTENER NOTICE .
  1. Loosely install the stabilizer link components.

    Tighten:  Tighten the stabilizer link nuts to 17 N.m (13 lb ft).

  2. Install the front wheels and tires. Refer to Tire and Wheel Removal and Installation .
  3. Lower the vehicle.
