Secondary Air Injection Pump Hose Replacement

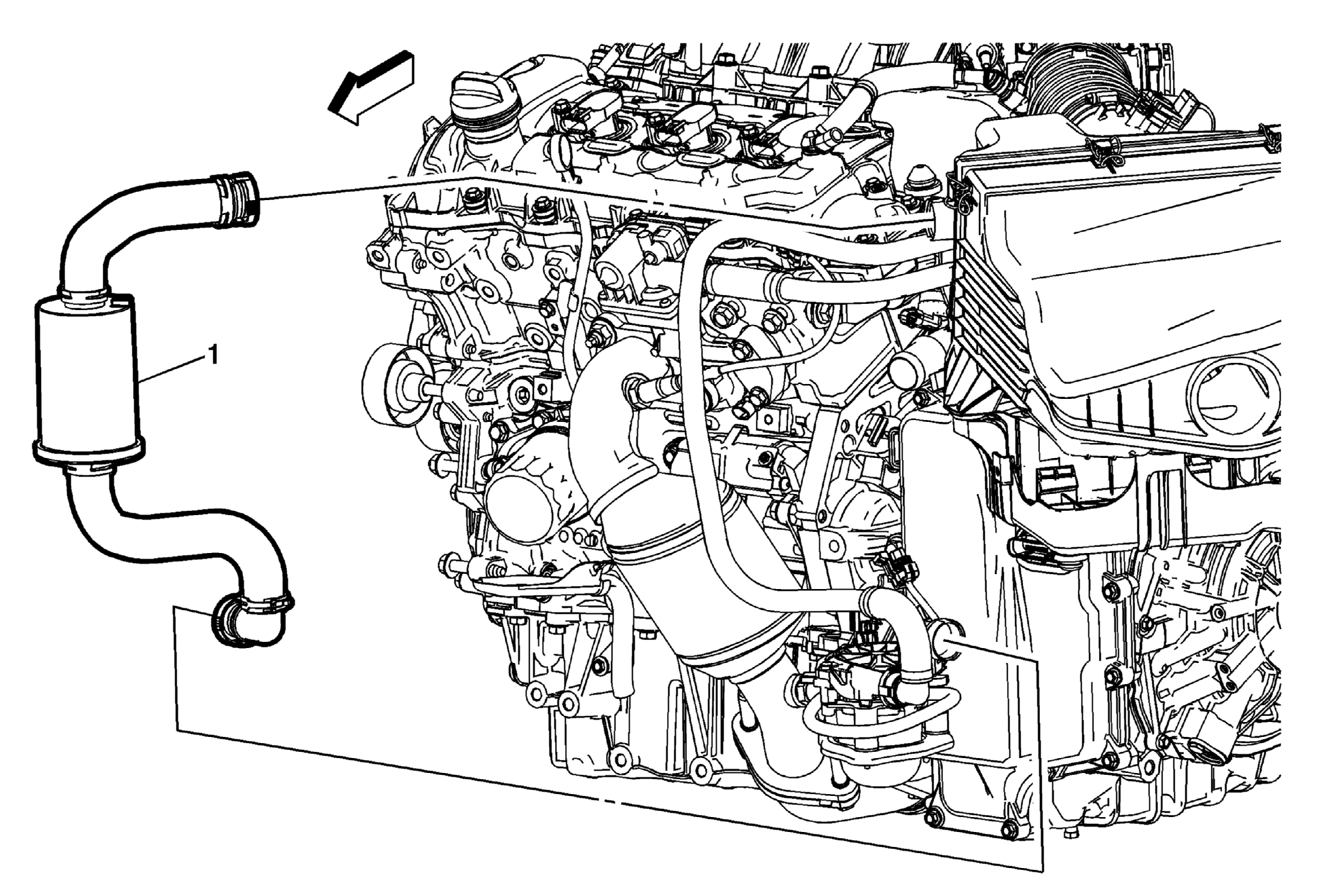

Fig 1: Secondary Air Injection Pump Hose
GM2640779Courtesy of GENERAL MOTORS COMPANY
Secondary Air Injection Pump Hose Replacement

Callout Component Name
Preliminary Procedures
Revove the radiator air lower baffel and deflector. Refer to Radiator Air Lower Baffle and Deflector Replacement
1 Secondary Air Injection Pump Inlet Hose.
Procedure
Disconnect the quick connect fittings by squeezing both sides.
