Installation Procedure

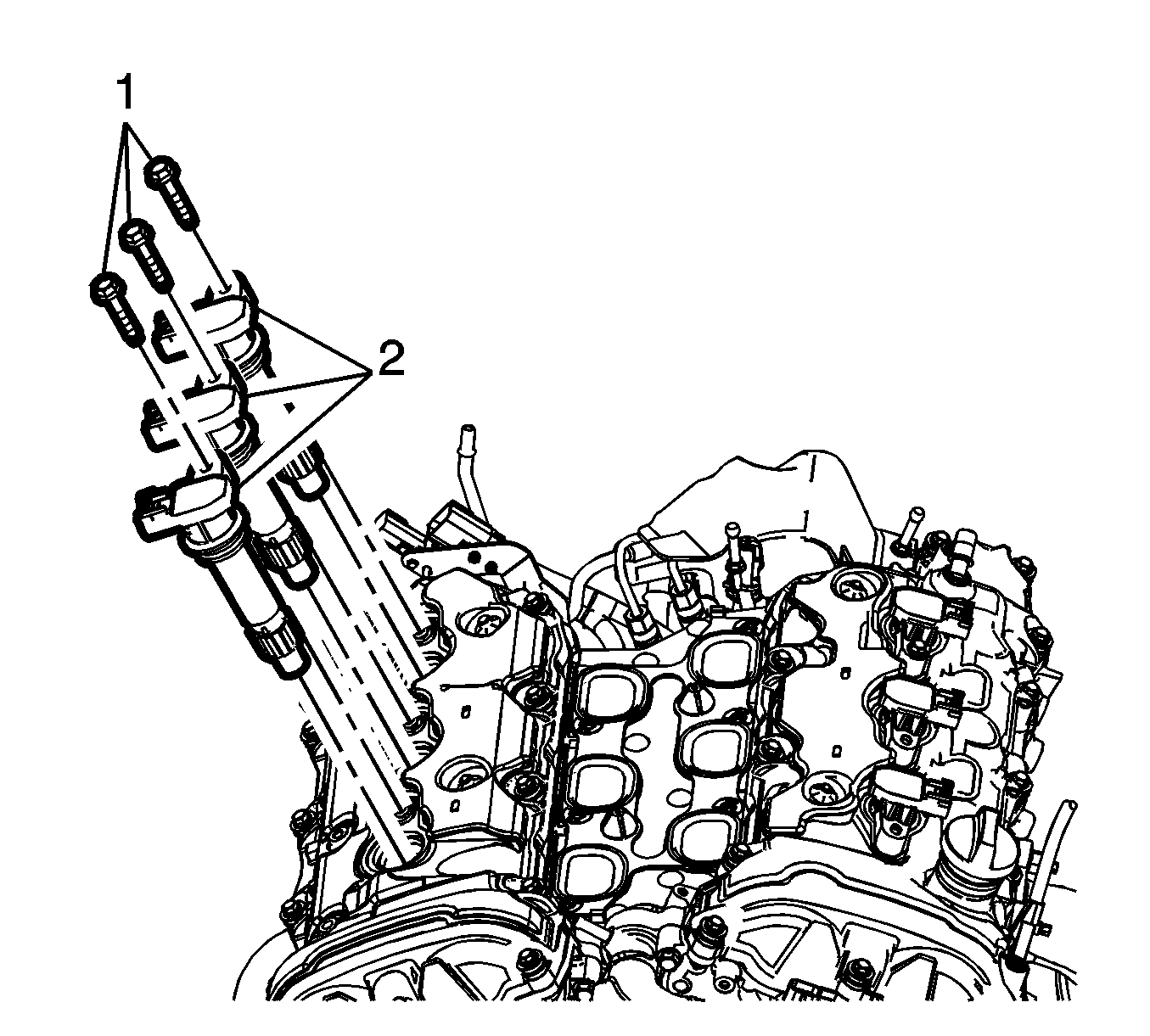

    Fig 1: Ignition Coils And Bolts
    GM2614951Courtesy of GENERAL MOTORS COMPANY
  1. Install the ignition coil(s) (2).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the ignition coil bolt(s) (1)and tighten to 10 N.m (89 lb in).

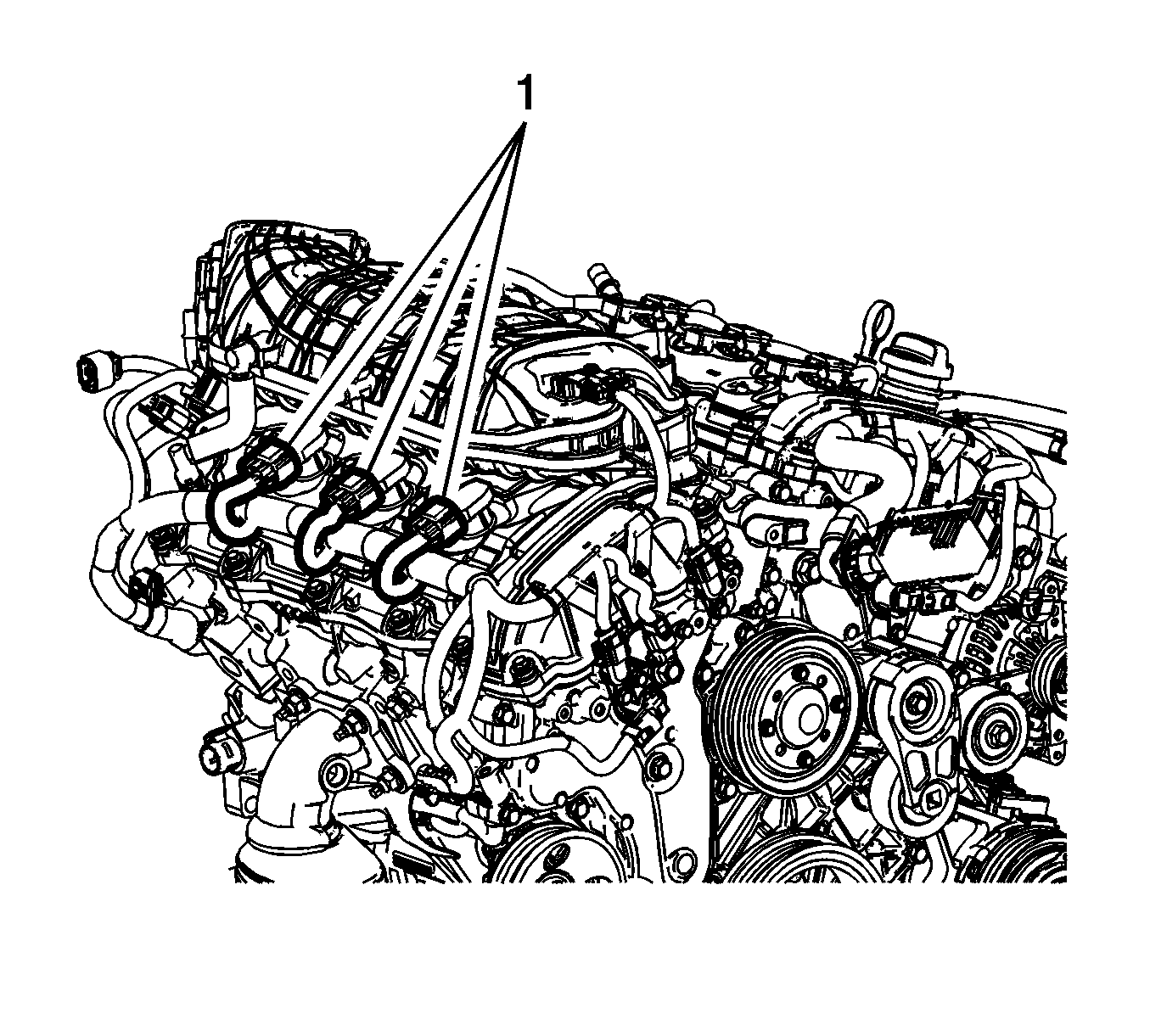

    3. Fig 2: Engine Wiring Harness Electrical Connectors
    GM2614990Courtesy of GENERAL MOTORS COMPANY
  3. Connect the engine wiring harness electrical connector(s) (1) to the ignition coil(s).
  4. Install the intake manifold. Refer to Intake Manifold Replacement .
