Installation Procedure

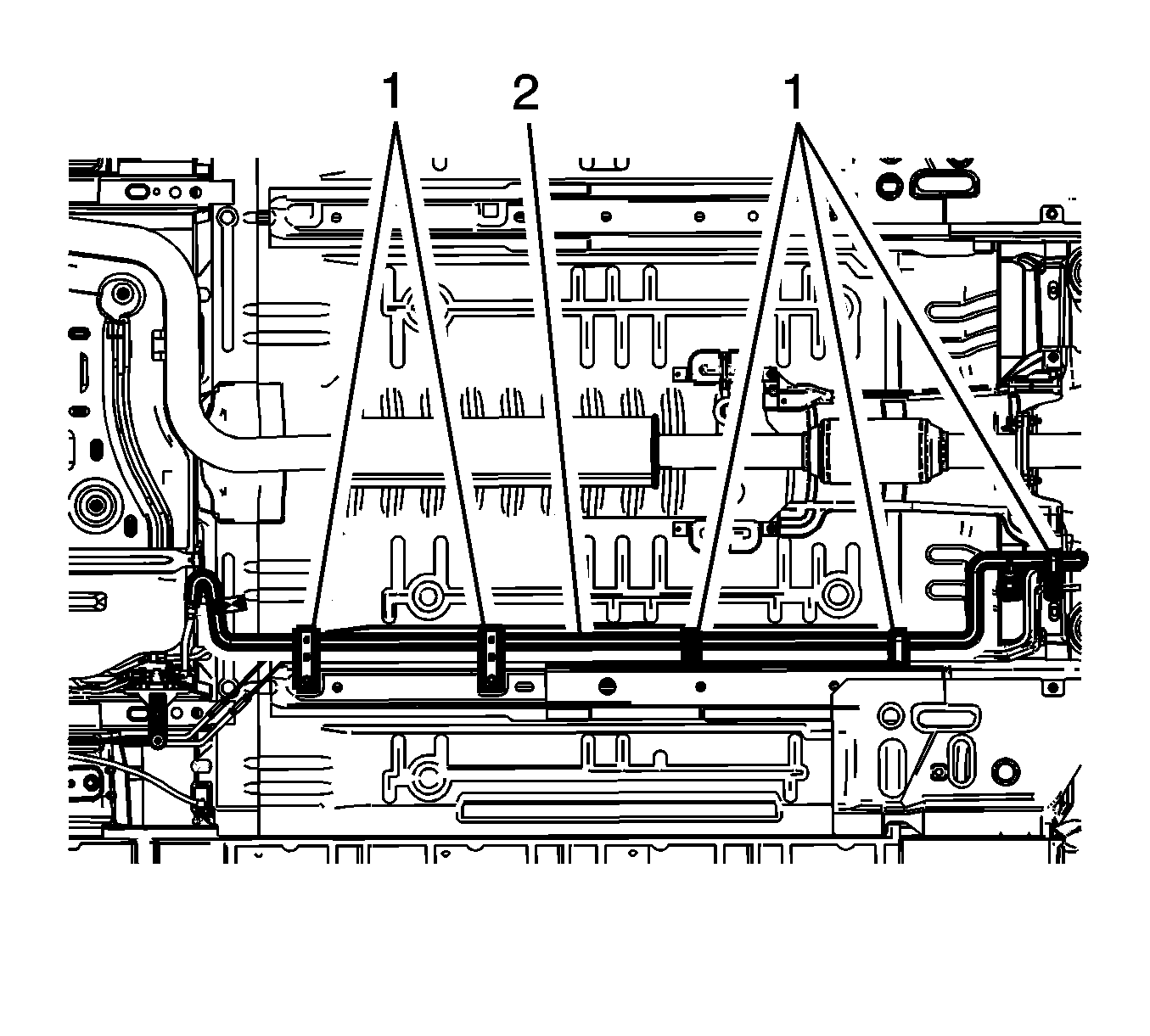

    Fig 1: Fuel Line And Retainers
    GM2640771Courtesy of GENERAL MOTORS COMPANY
  1. Connect the fuel line (1) from the retainers (2). Refer to Plastic Collar Quick Connect Fitting Service .
  2. Lower the vehicle.

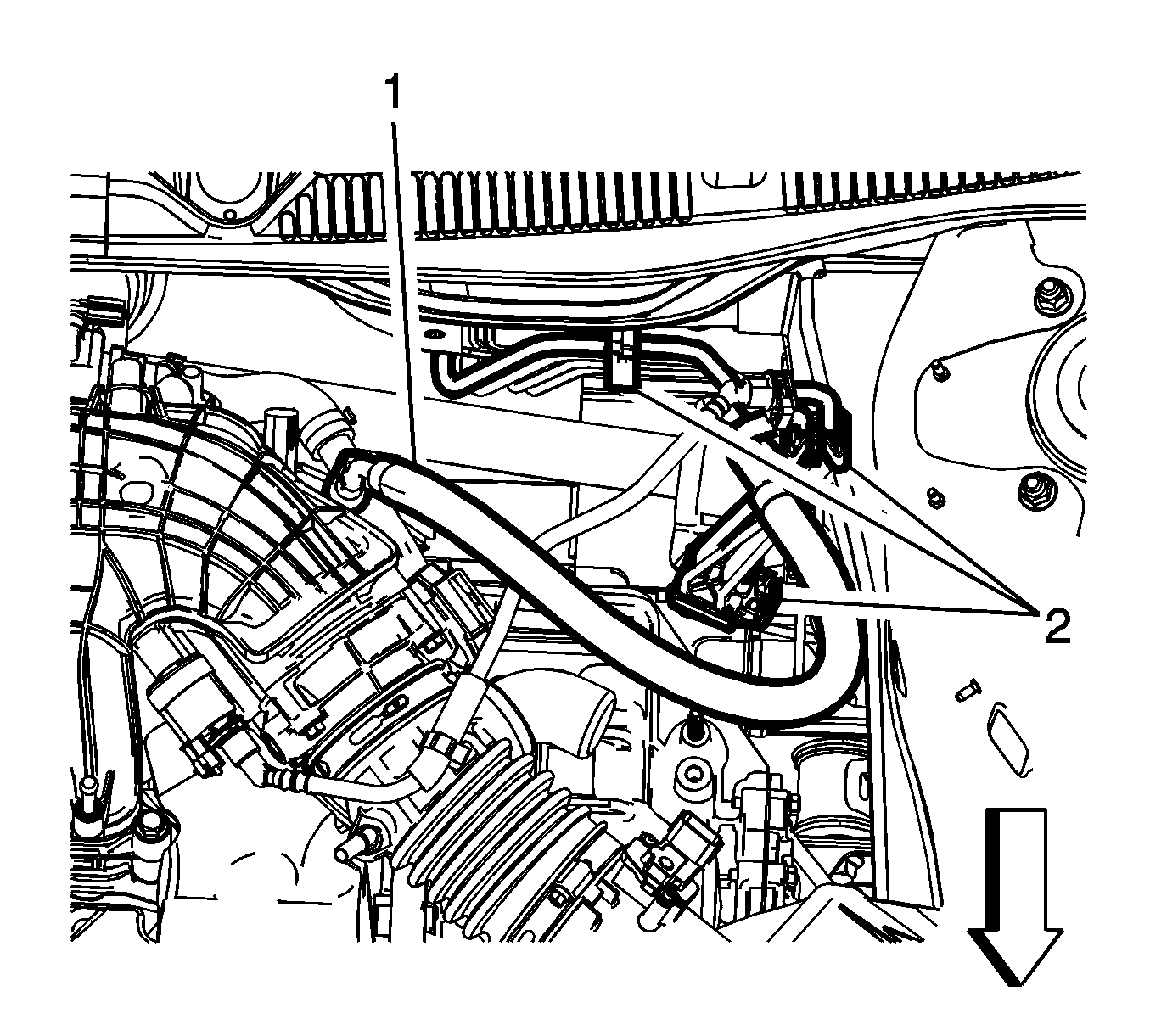

    3. Fig 2: Fuel Line And Retainers
    GM2640732Courtesy of GENERAL MOTORS COMPANY
  3. Connect the fuel line (1) from the retainers (2). Refer to Metal Collar Quick Connect Fitting Service .
