Air Cleaner Outlet Duct Replacement
Air Cleaner Outlet Duct Replacement

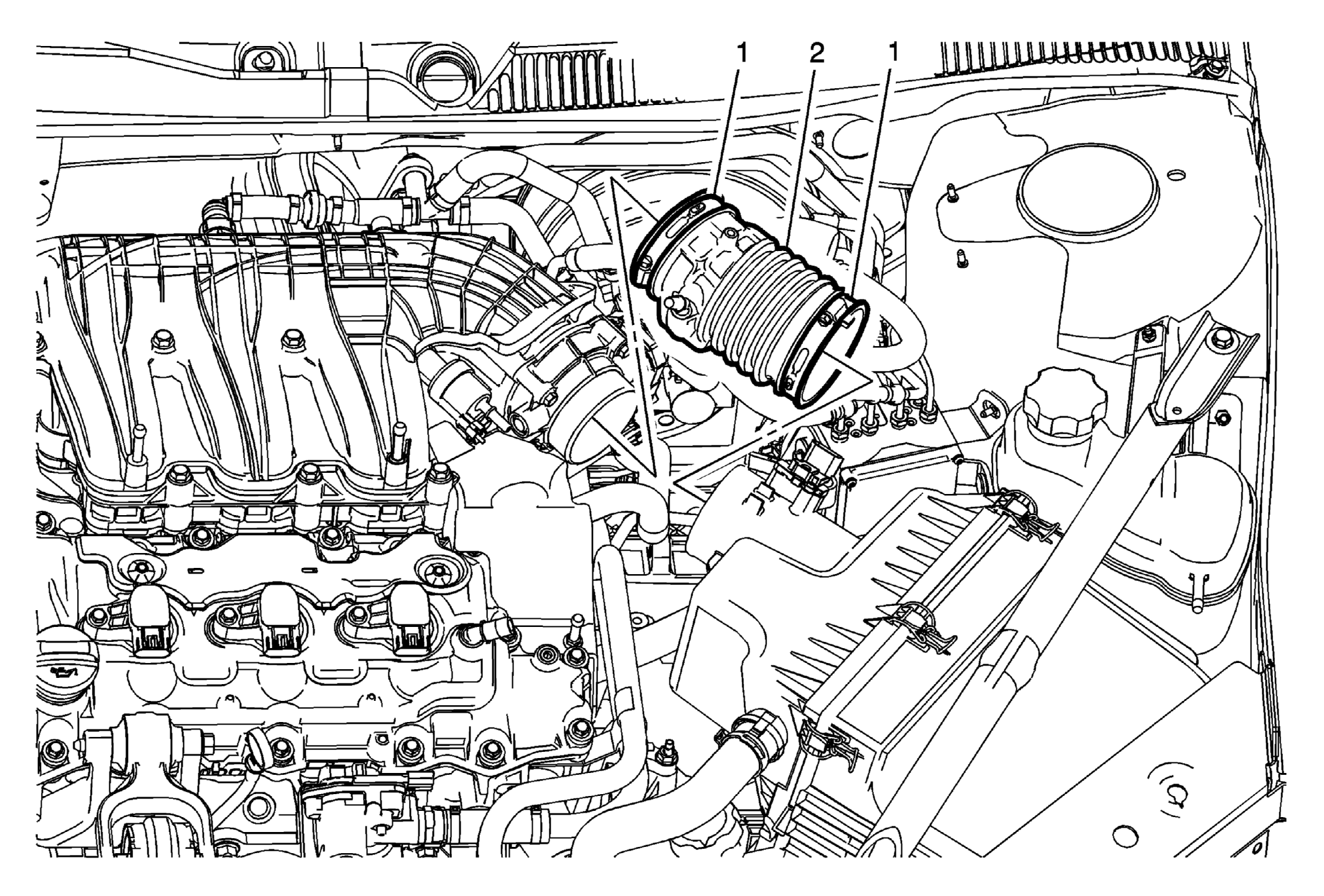

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the positive crankcase ventilatioin tube front. Refer to Positive Crankcase Ventilation Tube Replacement - Front |
|
| 1 | Air Cleaner Outlet Duct Clamps. (Qty: 2).
CAUTION:
Refer to Fastener Caution . Tighten 3 N.m (27 lb in) |
| 2 | Air Cleaner Outlet Duct |
