Installation Procedure

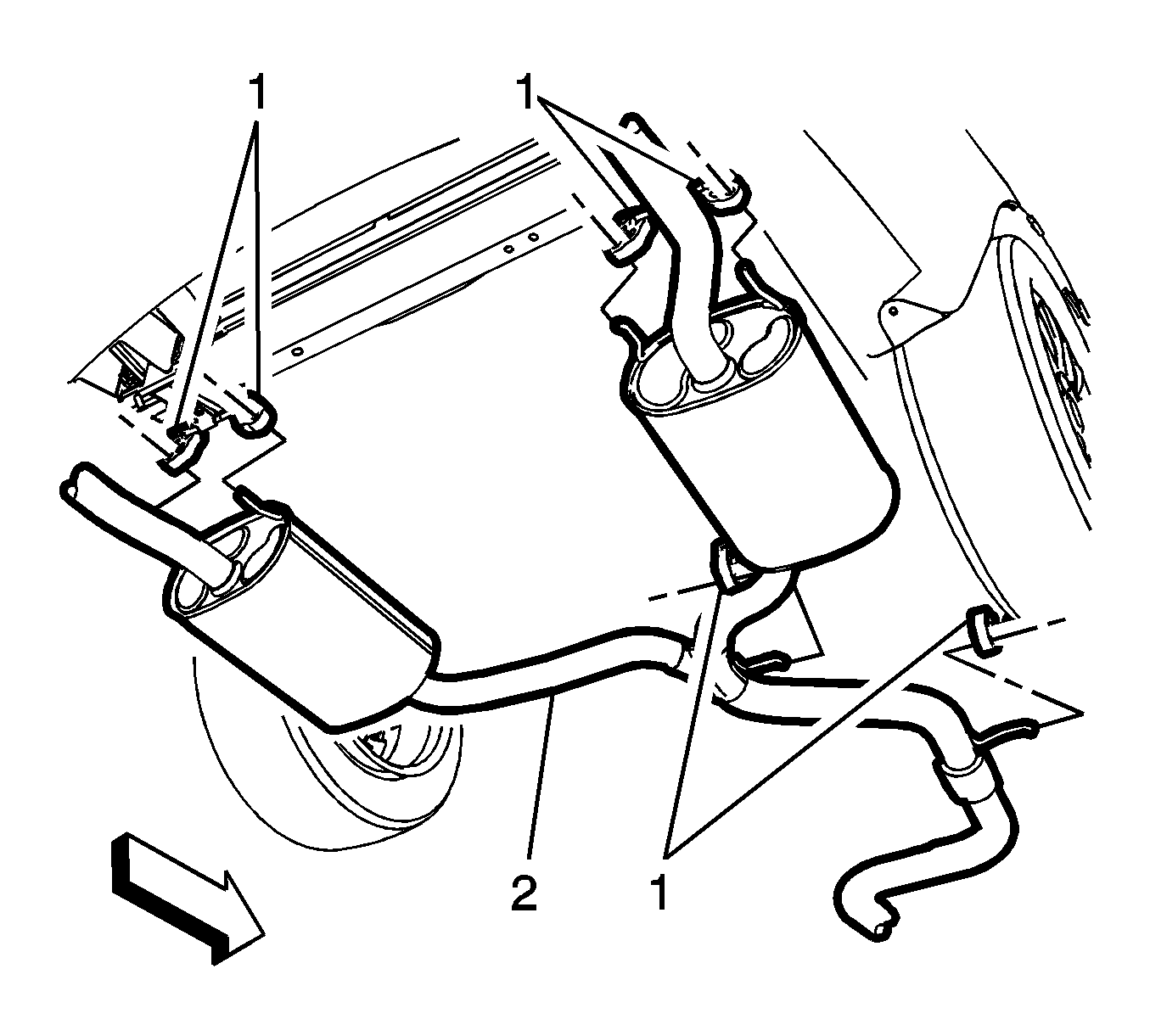

    Fig 1: Exhaust Isolators And Exhaust Muffler
    GM2632533Courtesy of GENERAL MOTORS COMPANY
  1. Install the exhaust muffler (2) into the exhaust muffler isolators (1).

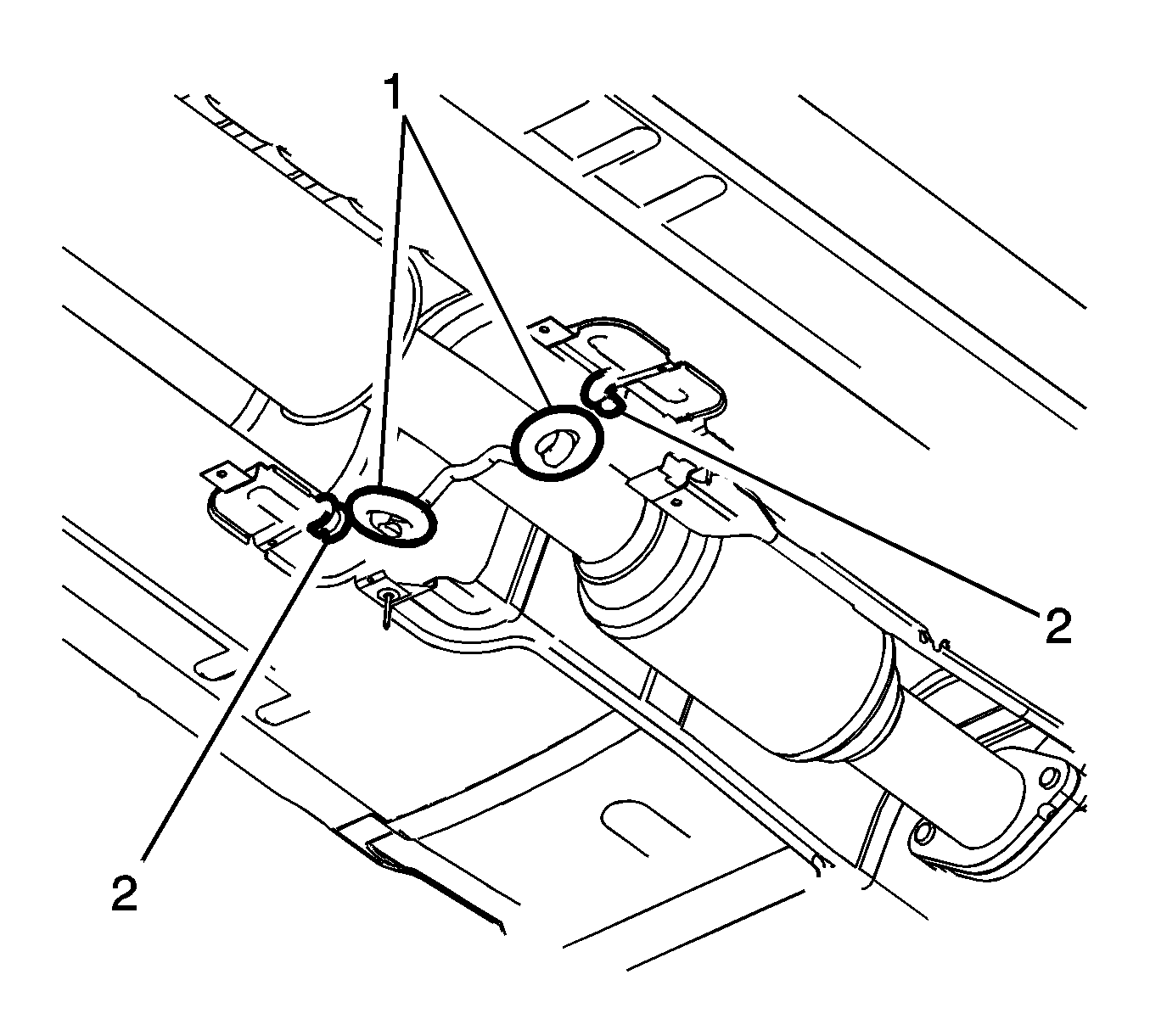

    2. Fig 2: Exhaust Muffler Hangers And Brackets
    GM2632534Courtesy of GENERAL MOTORS COMPANY
  2. Install the exhaust hangers (1) into the exhaust bracket hangers (2).
    3. Fig 3: Exhaust Gasket, Rear Muffler Pipe And Fasteners
    GM2632537Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the exhaust muffler (3) into the exhaust front pipe with a NEW gasket (2). Tighten the fasteners (1) to 43 N.m (32 lb ft).
  4. Inspect the exhaust system for leaks.
