Steering Wheel Secondary/Configurable Control

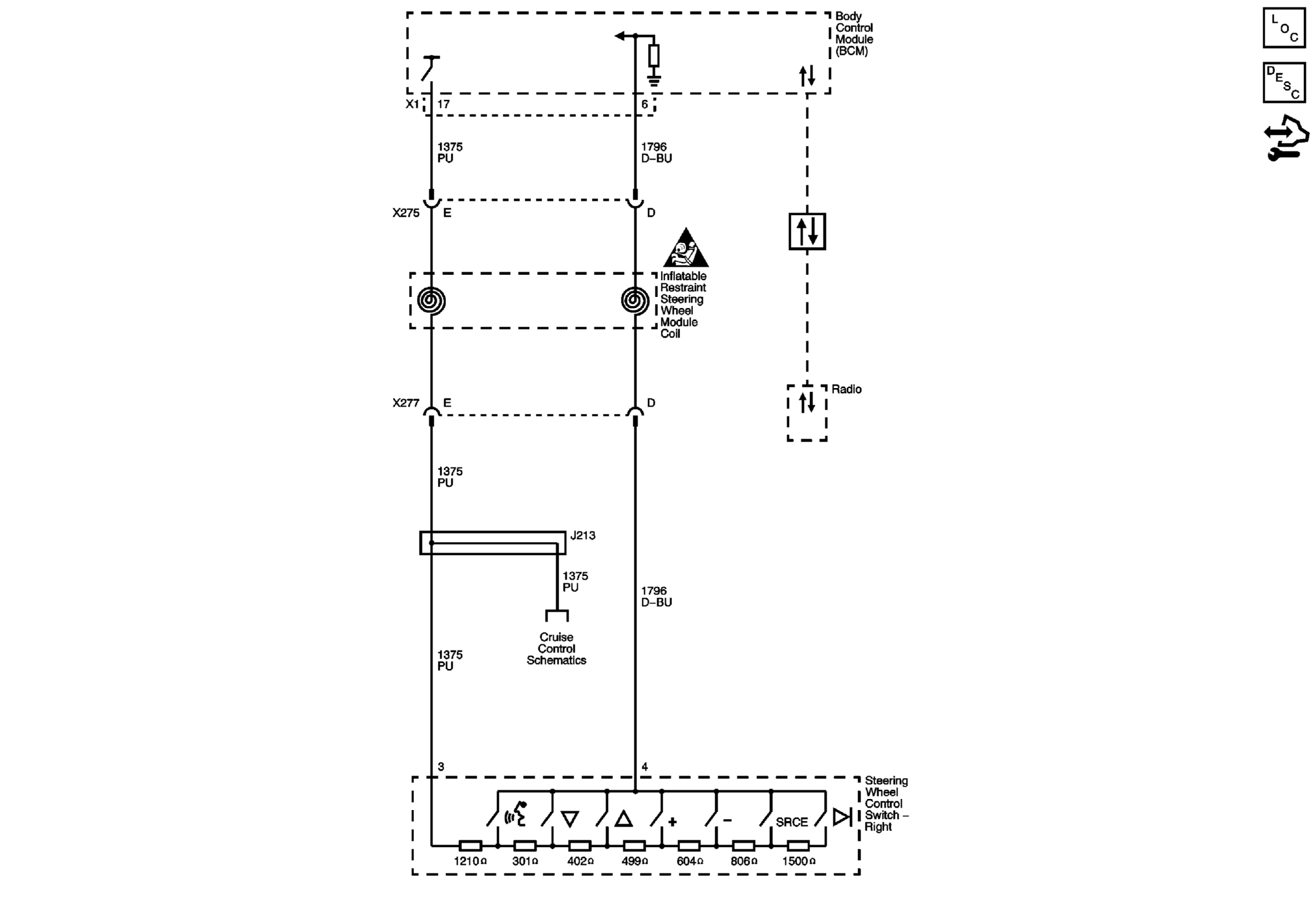

Fig 1: Steering Wheel Secondary/Configurable Control Wiring Schematic

GM2583157

Courtesy of GENERAL MOTORS COMPANY
