Cruise Control System

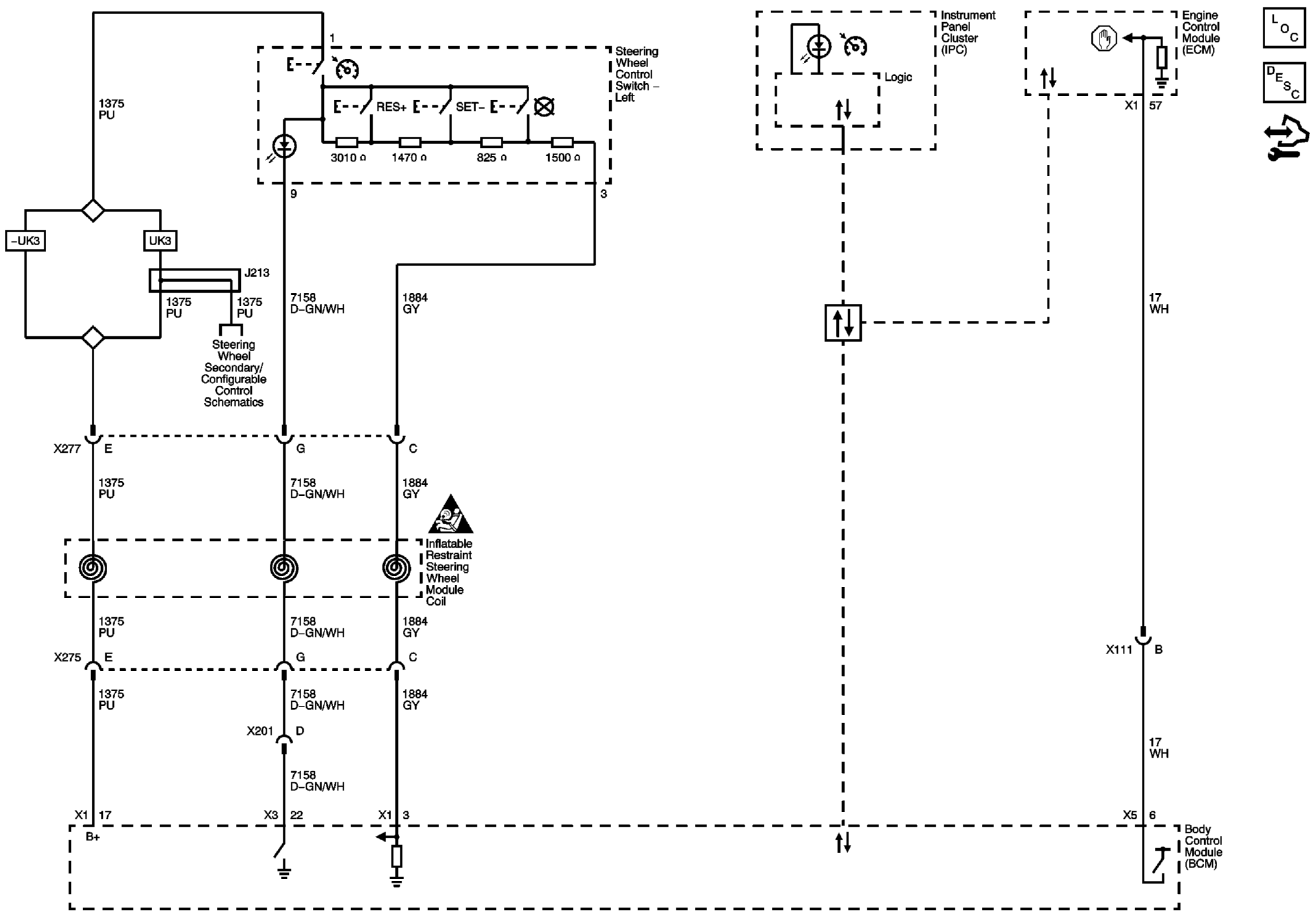

Fig 1: Cruise Control System Wiring Schematic

GM2583061

Courtesy of GENERAL MOTORS COMPANY
