Chevrolet
>>
2012
>>
Equinox LS, AWD, Gas
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communications System
>>
Wiring Schematics
>>
Data Communication Wiring Schematics
>>
Chassis Expansion Bus
Chassis Expansion Bus

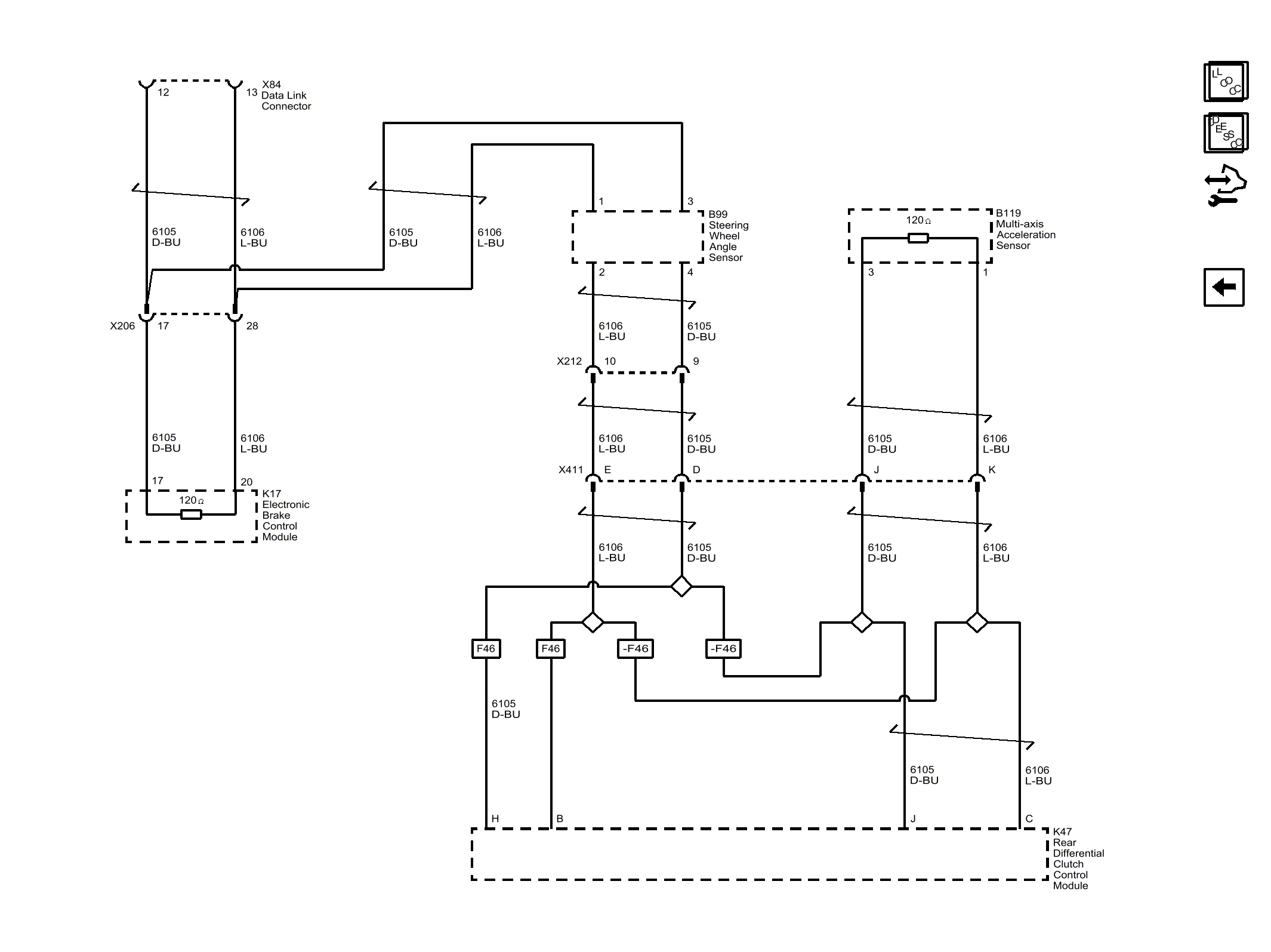

Fig 1: Chassis Expansion Bus Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
