Fuel Tank Pressure Sensor Replacement (NU6)

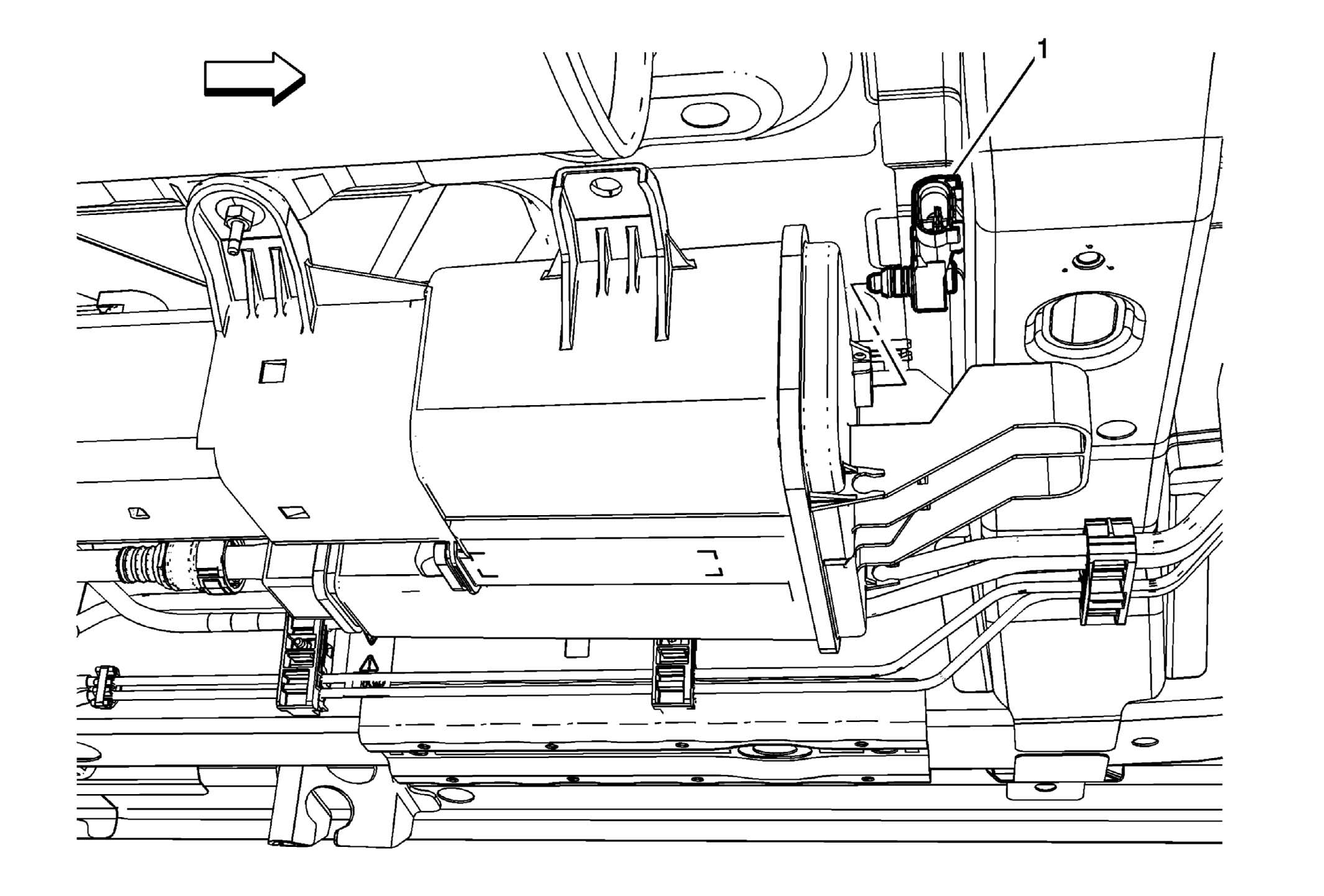

Fig 1: Fuel Tank Pressure Sensor
GM2667383Courtesy of GENERAL MOTORS COMPANY
Fuel Tank Pressure Sensor Replacement (NU6)

Callout Component Name
Preliminary Procedure
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1 Fuel Tank Pressure Sensor

Procedure

  1. Use a flat bladed tool to remove the sensor.
  2. Disconnect the electrical connector.
