Fuel Feed Hose Replacement

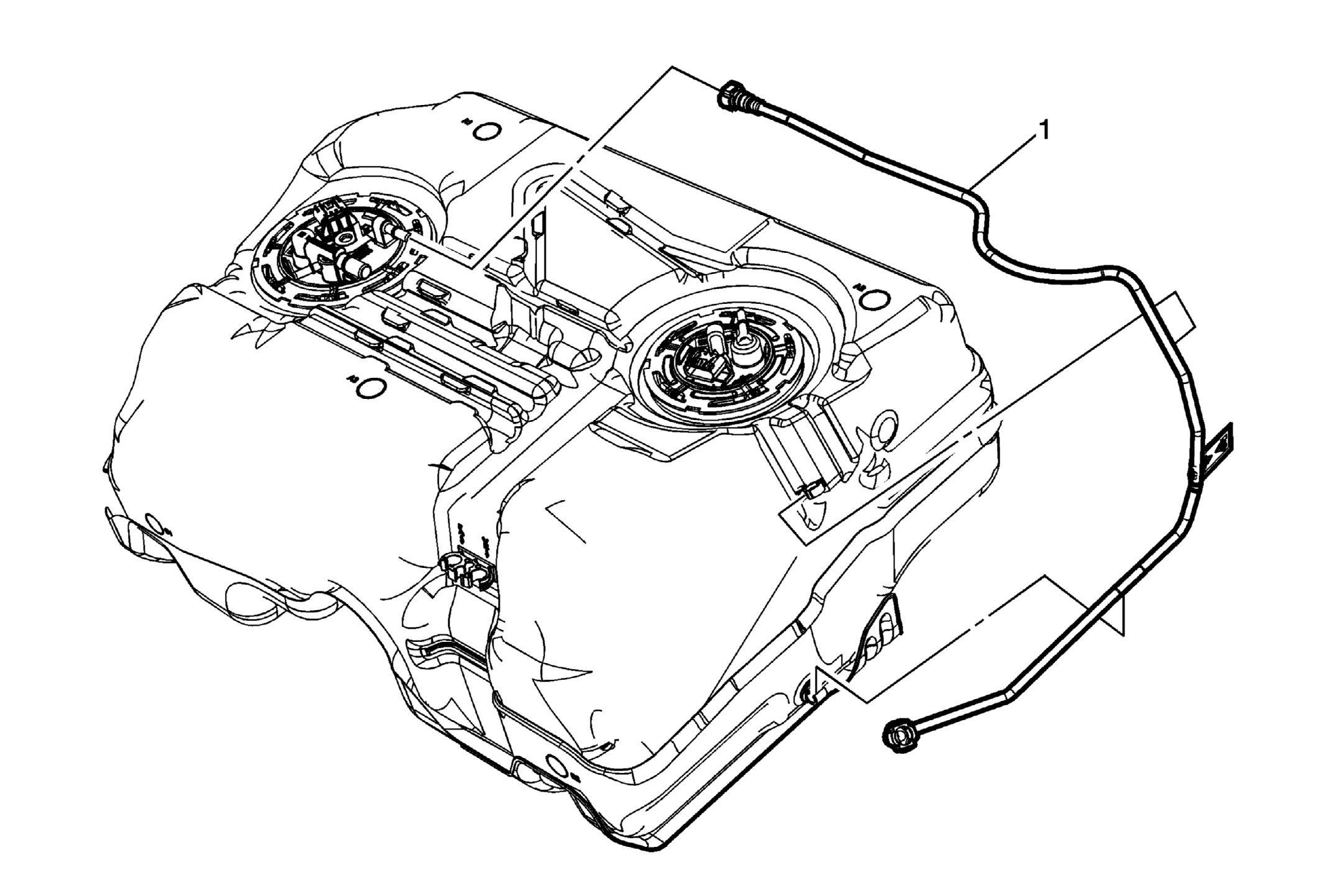

Fig 1: Fuel Feed Hose
GM2747423Courtesy of GENERAL MOTORS COMPANY
Fuel Feed Hose Replacement

Callout Component Name

Preliminary Procedures

  1. Relieve the fuel system pressure. Refer to Fuel Pressure Relief .
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  3. Remove the fuel tank. Refer to Fuel Tank Replacement (AWD) , Fuel Tank Replacement (FWD)
  4. Disconnect the quick connectors. Refer to Plastic Collar Quick Connect Fitting Service .
1 Fuel Feed Hose
Procedure
Disengage the hose from the plastic retainers.
