Flexible Fuel Sensor Replacement
Courtesy of GENERAL MOTORS COMPANY Flexible Fuel Sensor Replacement

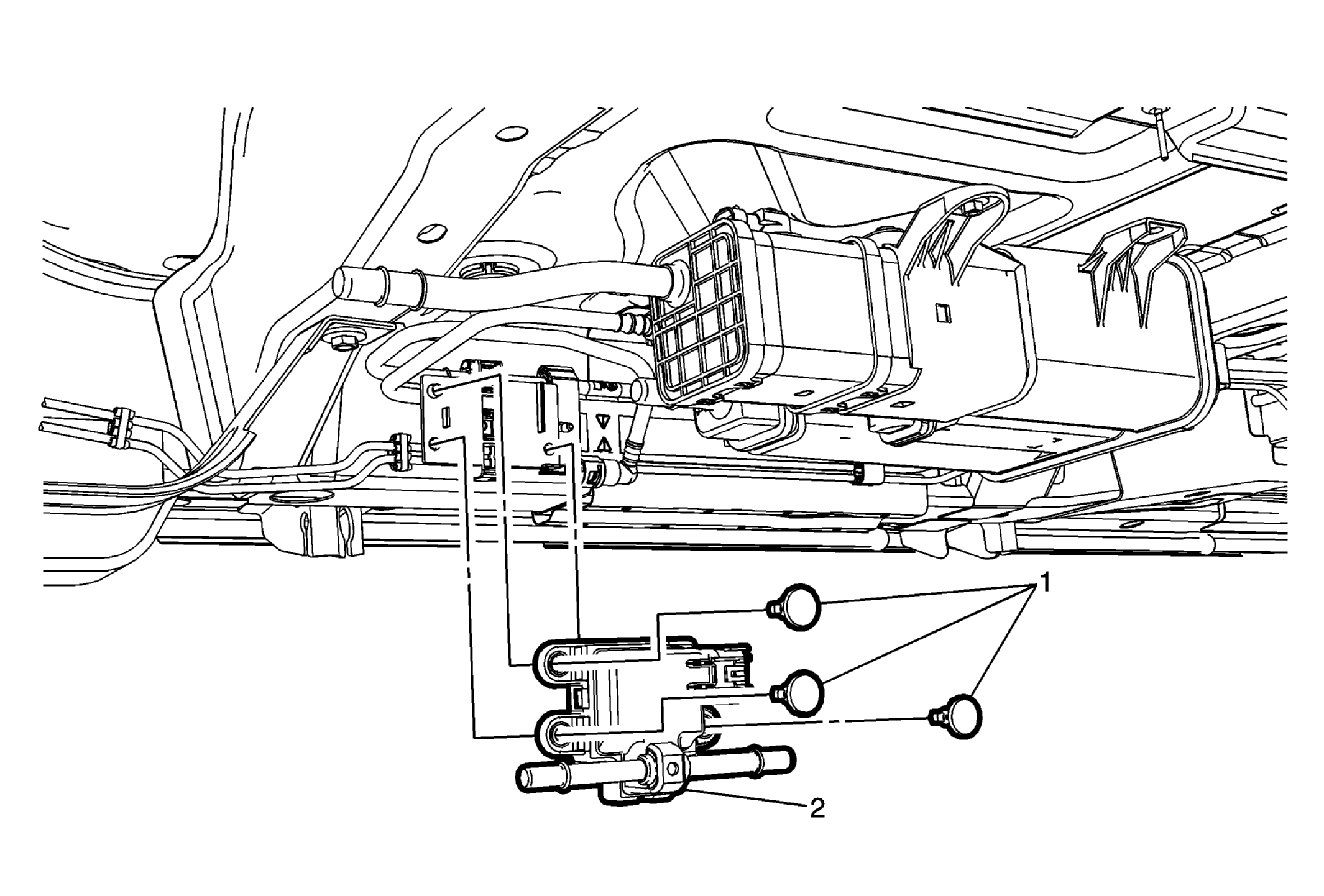

| Callout |
Component Name |
|
Preliminary Procedure
- Relieve the fuel system pressure. Refer to Fuel Pressure Relief
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
.
|
| 1 |
Plastic Retainers
Procedure
Squeeze the plastic retainers from the back in order to release. |
| 2 |
Flex Fuel Sensor Procedure
- Disconnect the fuel line connectors. Refer to Plastic Collar Quick Connect Fitting Service .
- Release the plastic retaining tab.
- Disconnect the electrical connector.
|
