Installation Procedure

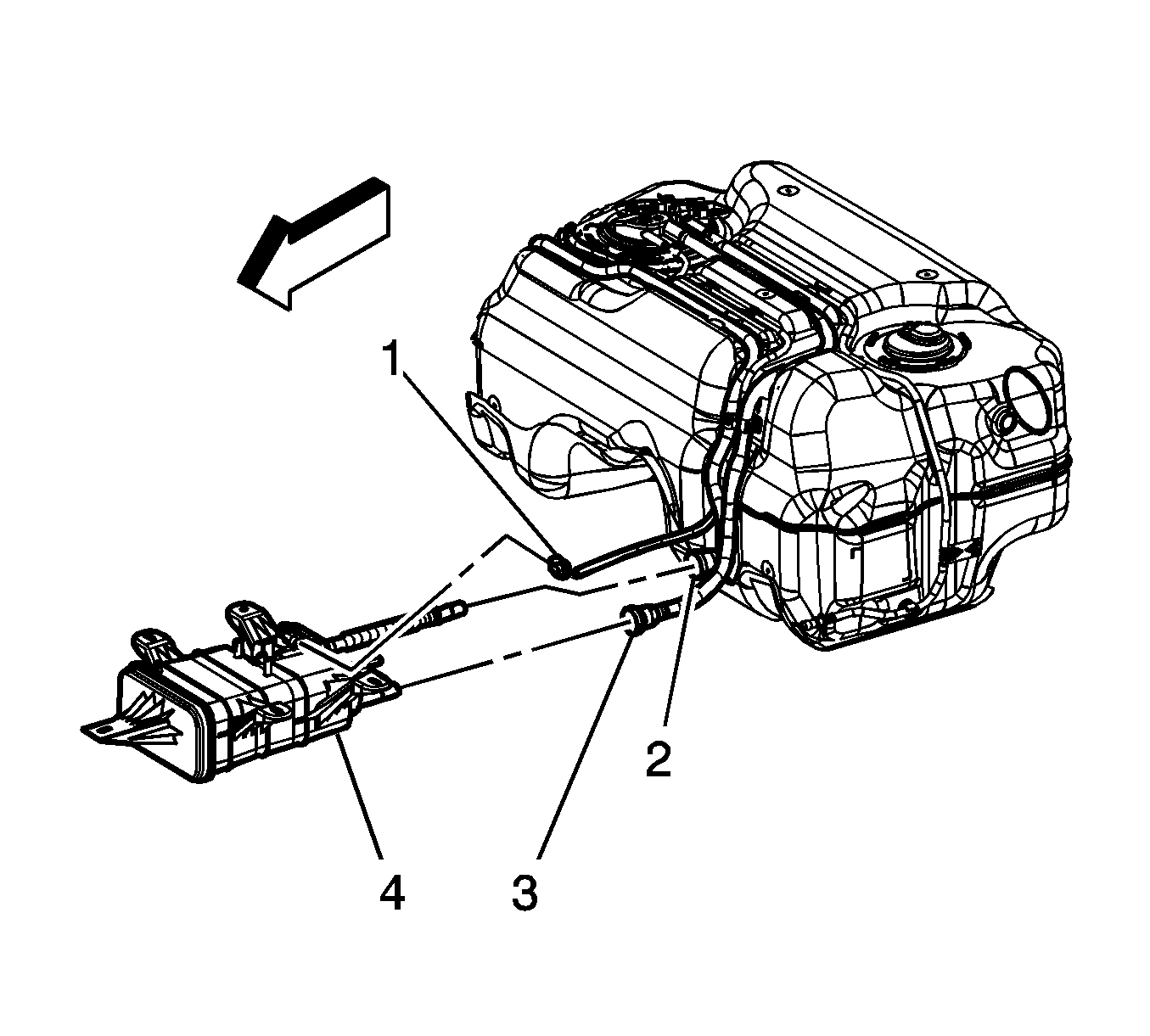

    Fig 1: EVAP Canister, Hose/Pipes And EVAP Vent Solenoid Electrical Connector
    GM1371134Courtesy of GENERAL MOTORS COMPANY
  1. Connect the EVAP vent solenoid electrical connector (1).
  2. Install the EVAP canister (4) to the underbody of the vehicle.
    3. Fig 2: EVAP Canister Underbody Nuts
    GM1371133Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the EVAP canister-to-underbody nuts (3).

    Tighten

    Tighten the nuts to 9 N.m (80 lb in).

  4. Connect the EVAP canister purge hose/pipe (1) to the EVAP canister.
    5. Fig 3: EVAP Canister, Hose/Pipes And EVAP Vent Solenoid Electrical Connector
    GM1371134Courtesy of GENERAL MOTORS COMPANY
  5. Connect the EVAP canister vent hose/pipe (3) to the EVAP canister. Refer to Plastic Collar Quick Connect Fitting Service .
  6. Connect the EVAP canister fresh air hose/pipe to the fuel tank fresh air hose/pipe (2). Refer to Plastic Collar Quick Connect Fitting Service .
  7. Lower the vehicle.
