Air Cleaner Assembly Replacement

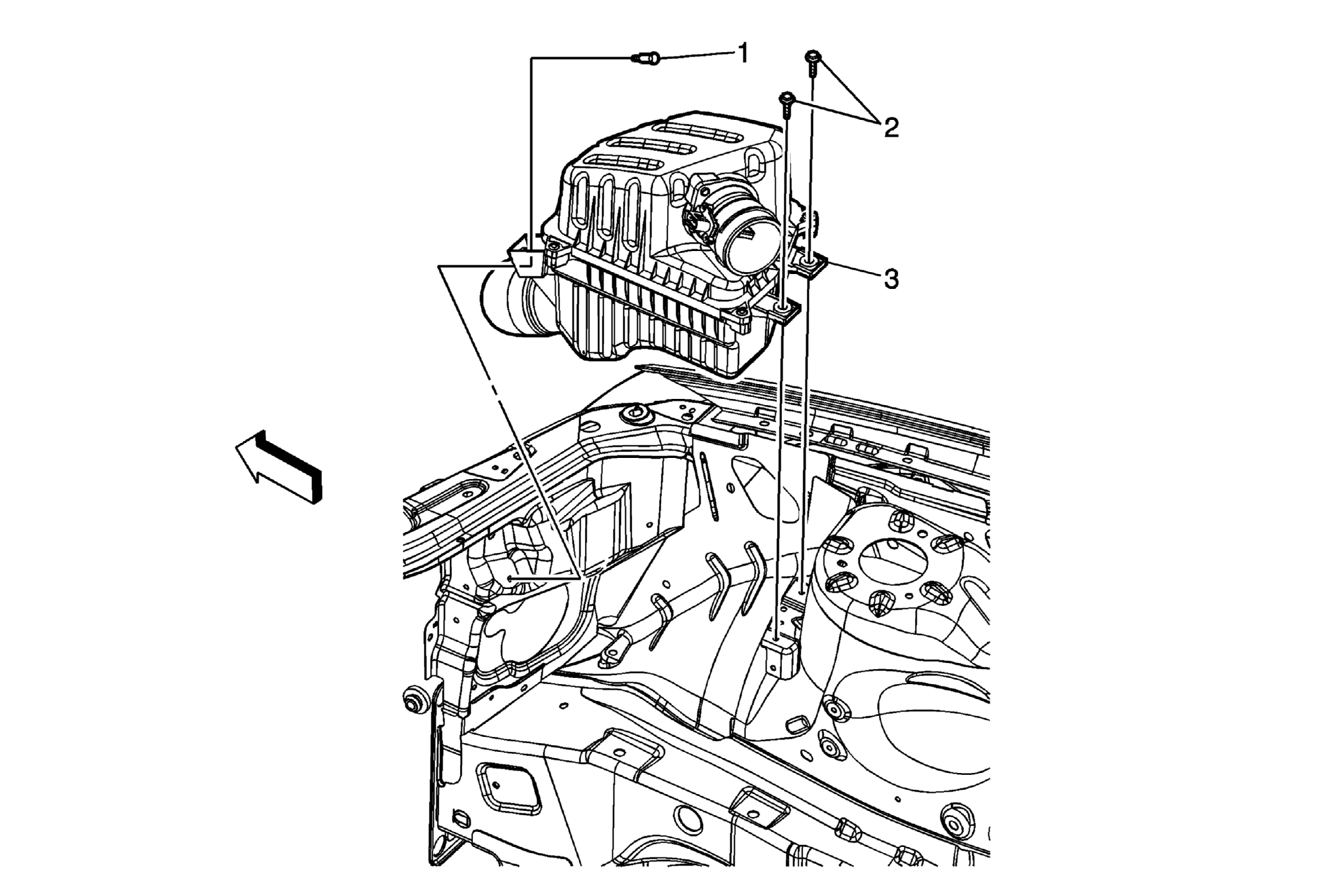

Fig 1: Air Cleaner Assembly
GM1875931Courtesy of GENERAL MOTORS COMPANY
Air Cleaner Assembly Replacement

Callout Component Name
Preliminary Procedures
Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
1 Air Cleaner Assembly Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
8 N.m (71 lb in)
2 Air Cleaner Assembly Bolt (Qty: 2)
Tighten
6 N.m (53 lb in)
3 Air Cleaner Assembly

Procedure

  1. Disconnect any electrical connectors as needed.
  2. Transfer any parts as needed.
