Module Power, Ground, Serial Data And Memory Controls (LTZ Or SLT)

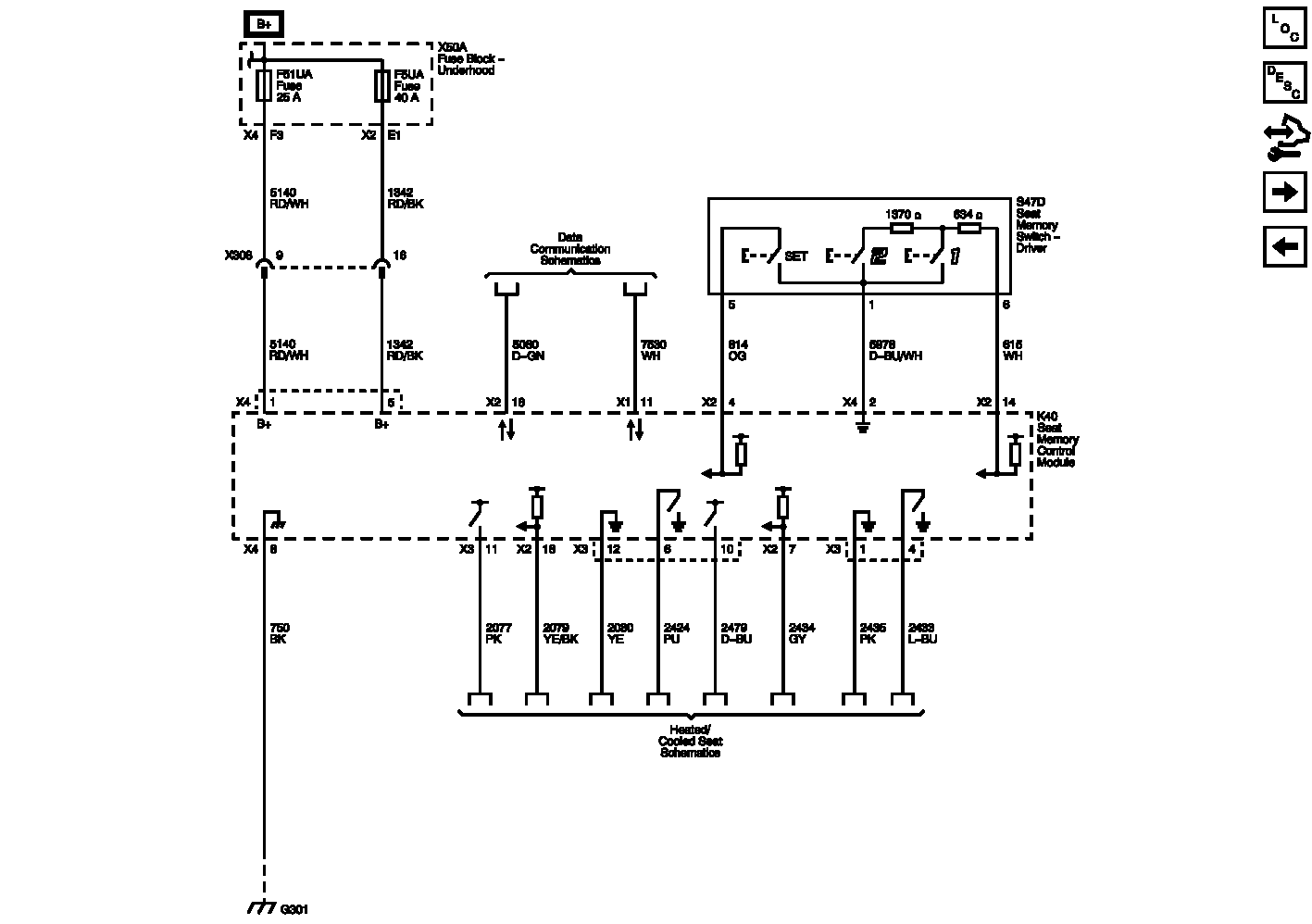

Fig 1: Module Power, Ground, Serial Data And Memory Controls (LTZ Or SLT) Wiring Schematic

GM2619625

Courtesy of GENERAL MOTORS COMPANY
