Steering Wheel Secondary/Configurable Control Wiring Schematics: UK3

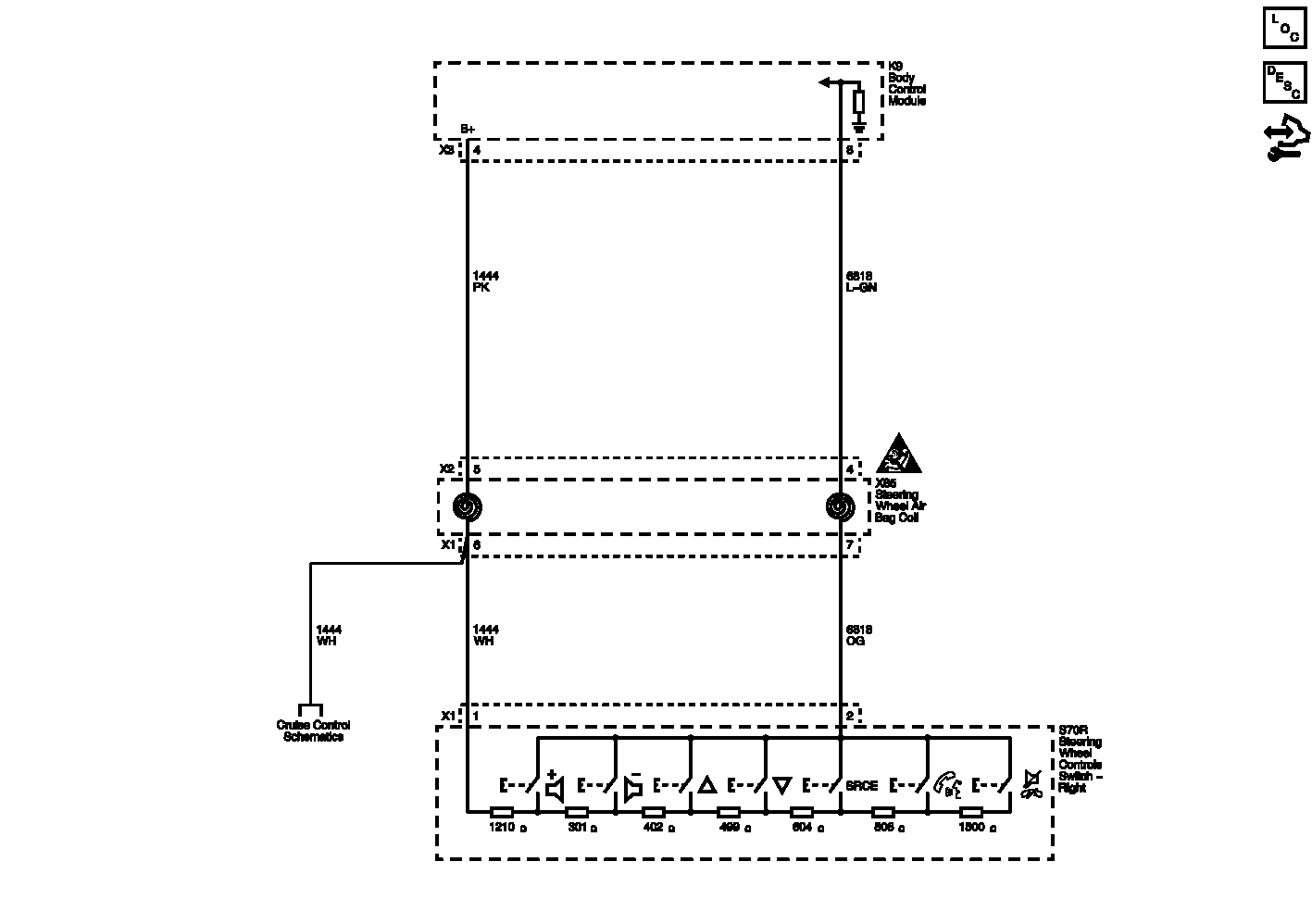

Fig 1: Steering Wheel Secondary/Configurable Control (UK3) Wiring Schematic

GM2618419

Courtesy of GENERAL MOTORS COMPANY
