Module Power, Ground, Serial Data And Front Switch (TB5)

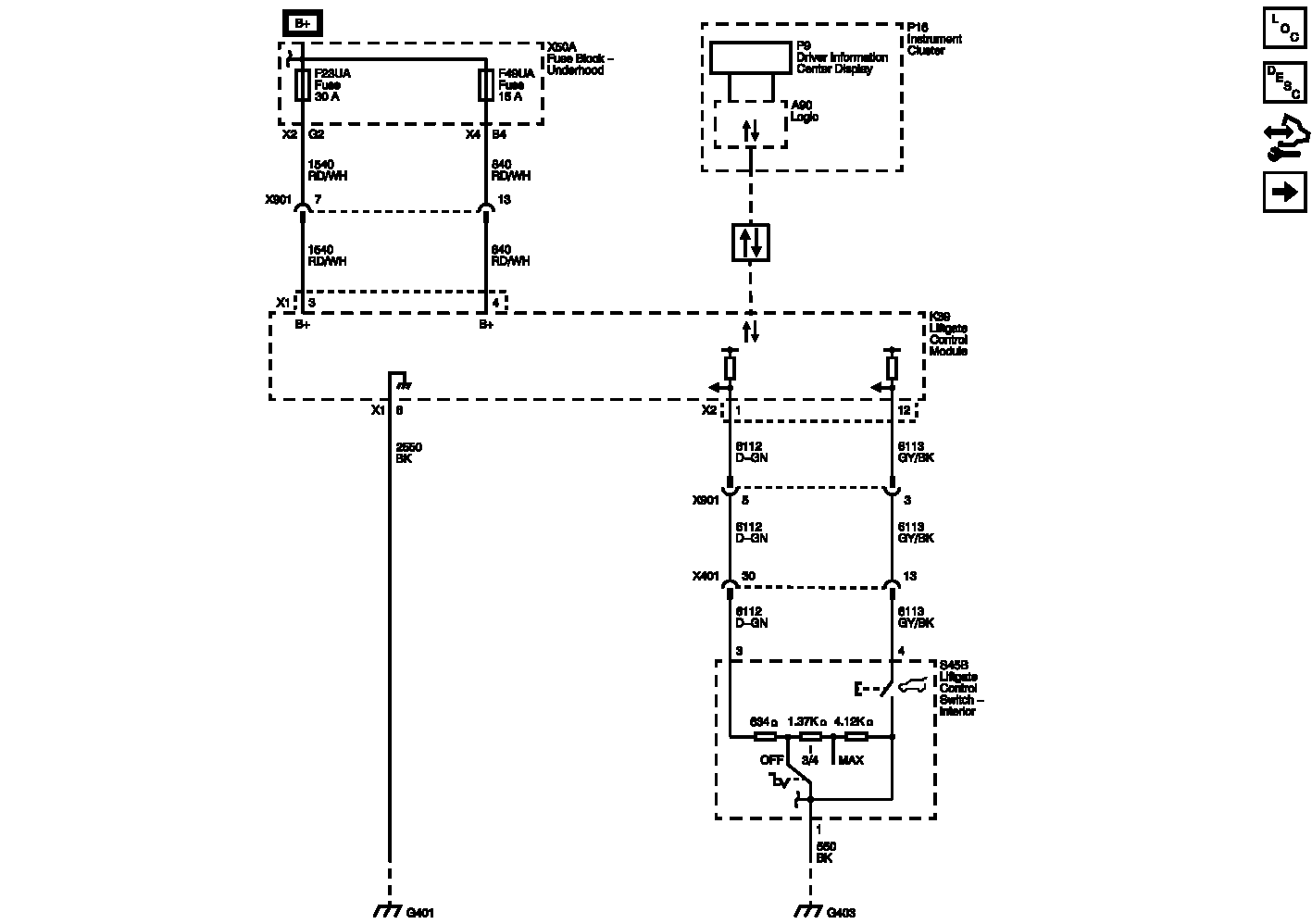

Fig 1: Module Power, Ground, Serial Data And Front Switch (TB5) Wiring Schematic

GM2617642

Courtesy of GENERAL MOTORS COMPANY
