Engine Compartment Components (2 Of 3)

Engine Compartment Components (2 Of 3)

Component Name Callout
G10R Cooling Fan Motor - Right (LFW) 1
G10L Cooling Fan Motor - Left (LFW) 2
R10 Cooling Fan Resistor (LEA) 3
G10 Cooling Fan Motor (LEA) 4
B9 Ambient Air Temperature Sensor 5

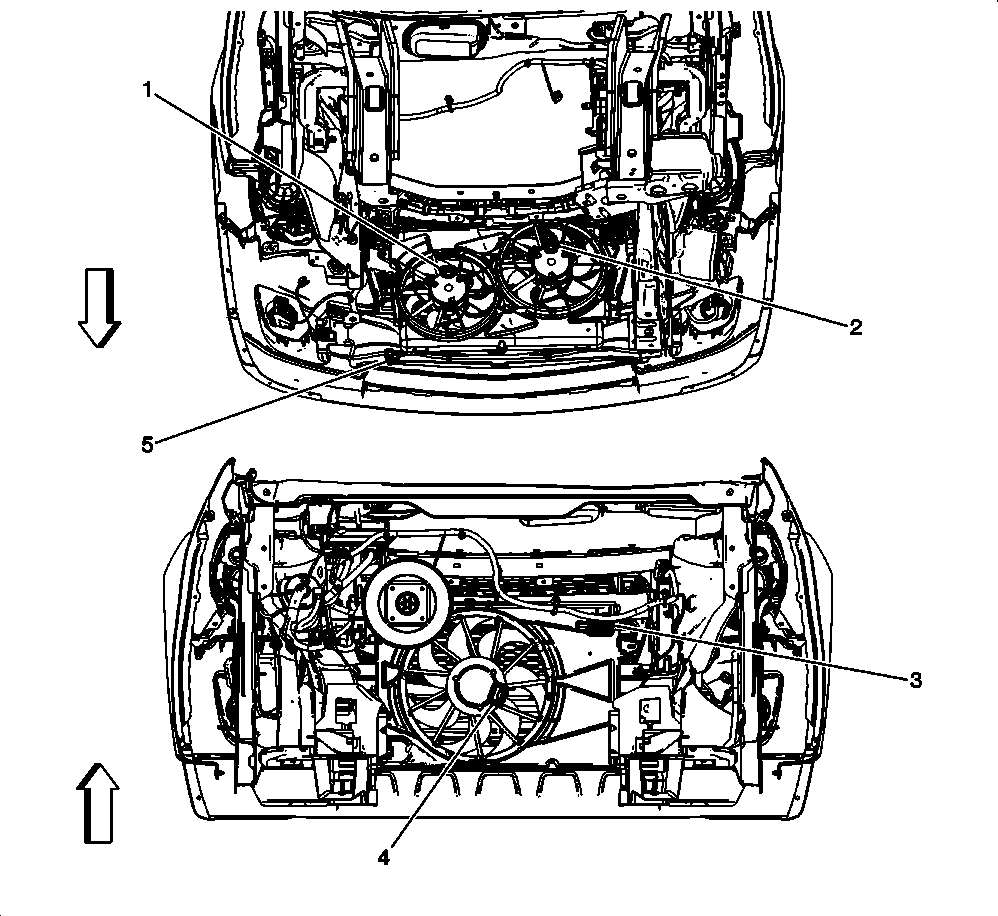

Fig 1: Engine Compartment Components (2 Of 3)
GM2551922Courtesy of GENERAL MOTORS COMPANY
