Chevrolet
>>
2012
>>
Equinox LS, AWD, Gas/Ethanol
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Antilock Brake System
>>
Wiring Schematics
>>
Antilock Brake System Wiring Schematics
>>
Power, Ground, Serial Data And Traction Control
Power, Ground, Serial Data And Traction Control

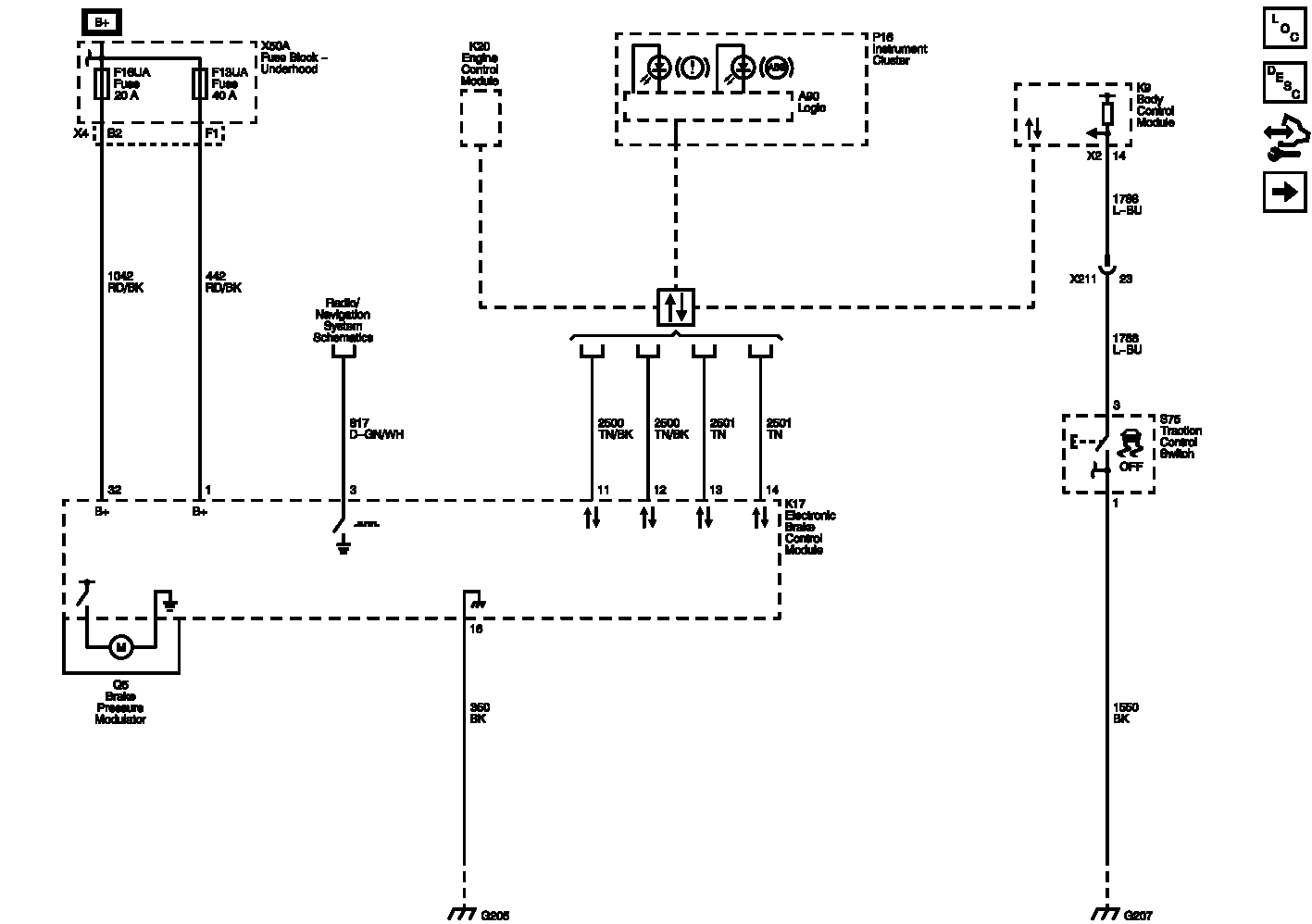

Fig 1: Power, Ground, Serial Data And Traction Control Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
