Instrument Panel Inflatable Restraint Module Bracket Replacement

WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

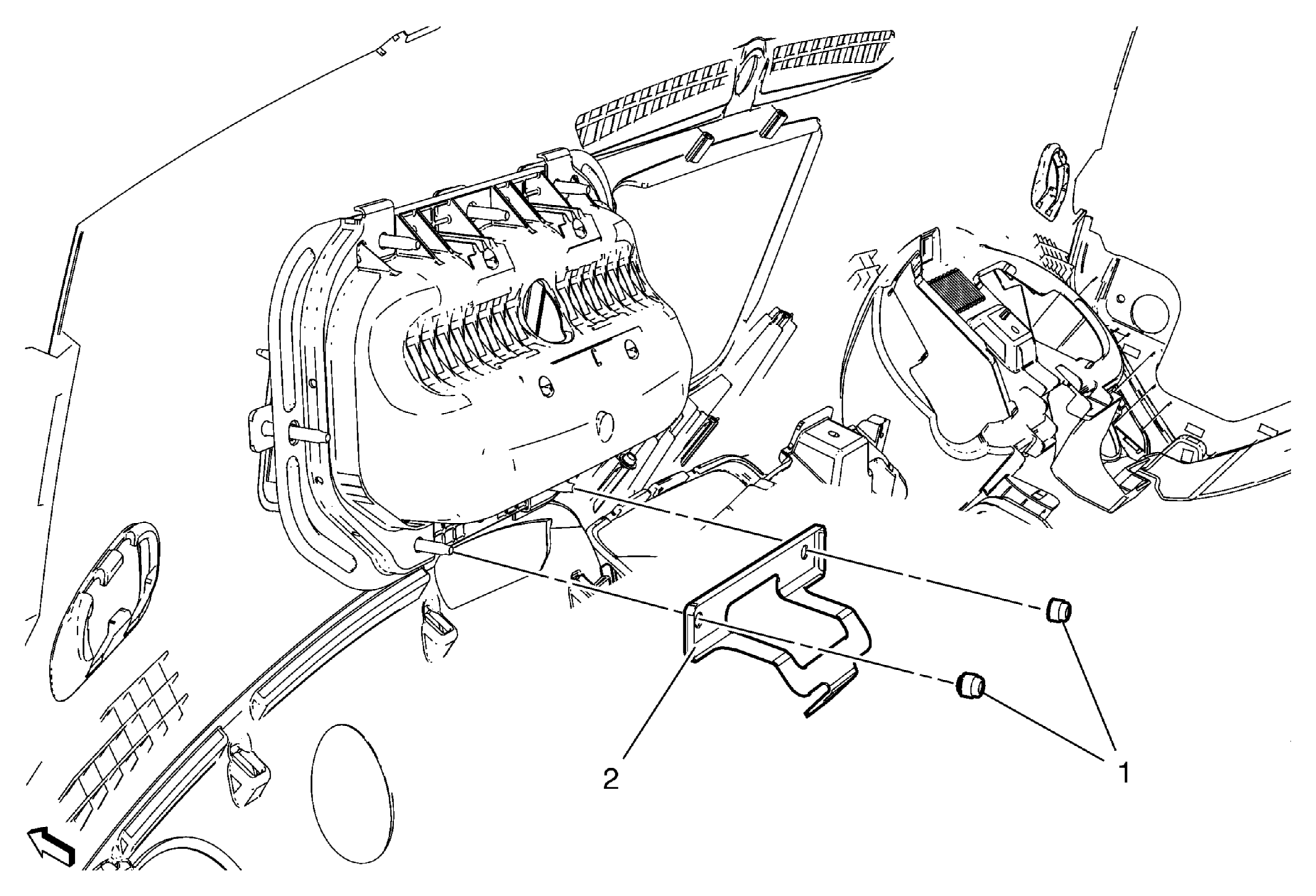

Fig 1: View Of Instrument Panel Inflatable Restraint Module Bracket Assembly And Nuts
GM2027433Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedures:
Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement .
1 Instrument Panel Inflatable Restraint Module Bracket Nut (Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten:  9 N.m (80 lb in)
2 Instrument Panel Inflatable Restraint Module Bracket Assembly
