Front Side Turn Signal Lamp Replacement

WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

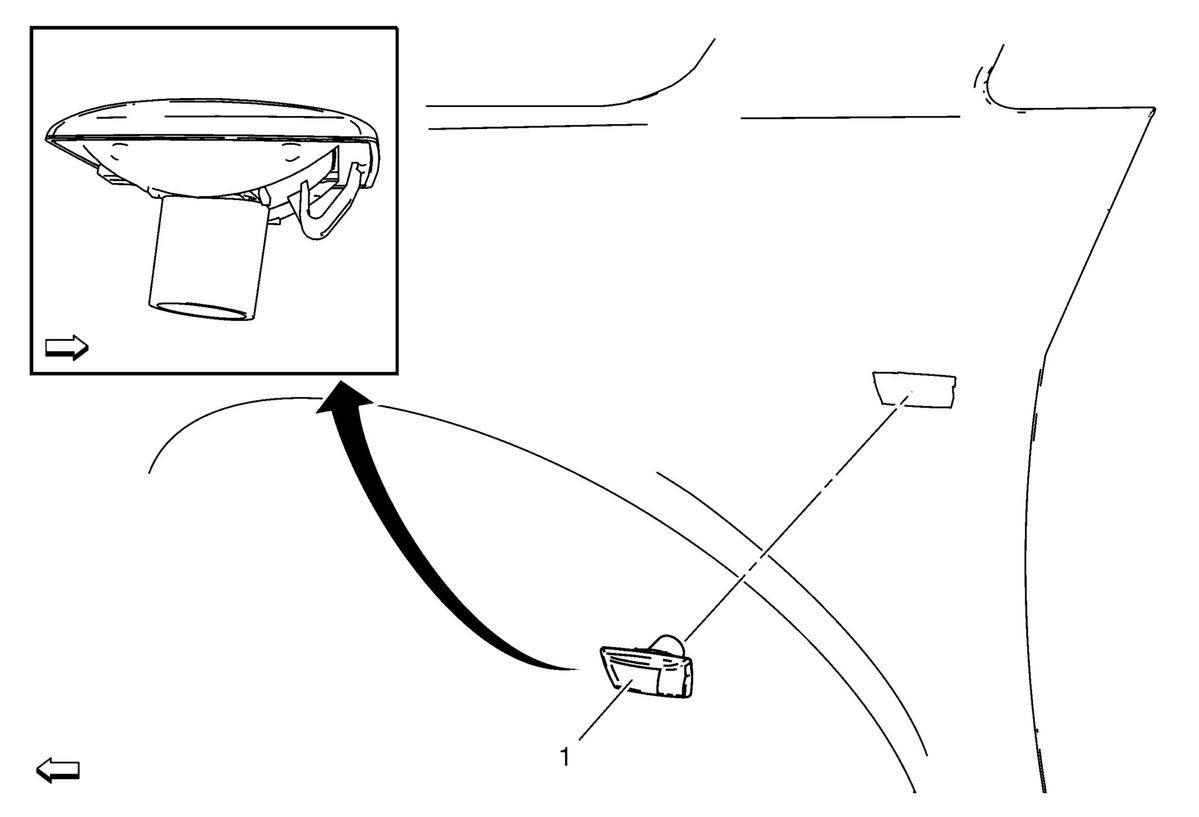

Fig 1: Front Side Turn Signal Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
1	Front Turn Signal Lamp Assembly Procedure Disconnect electrical connector. Replace the bulb, as needed.

Callout

Component Name

Preliminary Procedures:
Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .

Front Turn Signal Lamp Assembly

Procedure

Disconnect electrical connector.
Replace the bulb, as needed.
