Front Side Marker Lamp Bulb Replacement

WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

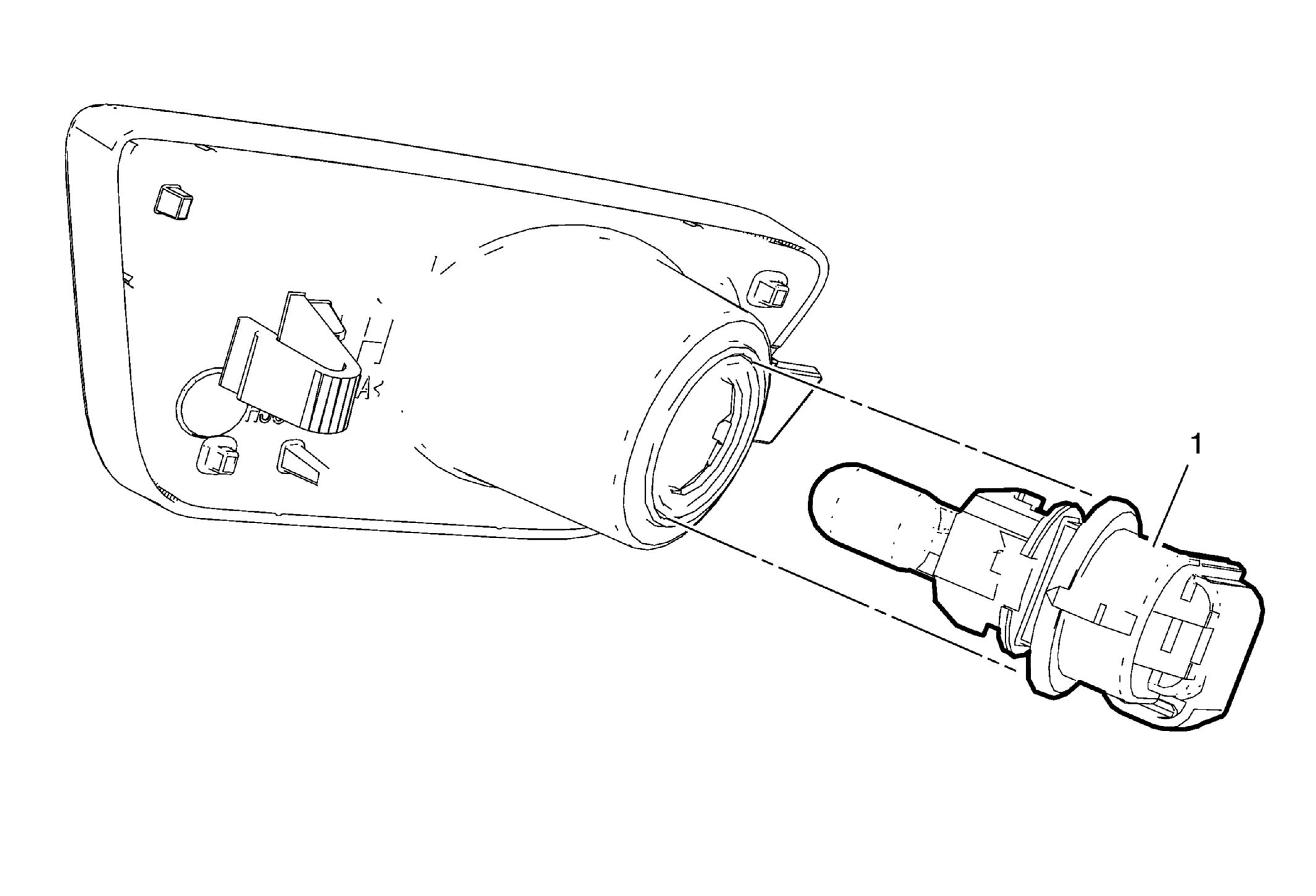

Fig 1: Front Side Marker Lamp Bulb
GM2372581Courtesy of GENERAL MOTORS CORP.
callout Component Name
Preliminary Procedure:
Remove the front side marker lamp. Refer to Front Side Marker Lamp Replacement
1 Front Side Marker Lamp Bulb Socket
Procedure:
Remove the front side marker lamp bulb from the bulb socket.
