Installation Procedure

    Fig 1: Engine Coolant Fan Resistor
    GM1936663Courtesy of GENERAL MOTORS COMPANY
  1. Install the engine coolant fan.
    2. CAUTION:

    Refer to Fastener Caution

  2. Install the 3 engine coolant fan engine bolts (3) to the engine coolant fan and tighten.
  3. Clip in the engine coolant fan resistor wiring harness (arrows) to the shroud.
  4. Install the engine coolant fan resistor (1) by clipping the retainer clip (2).

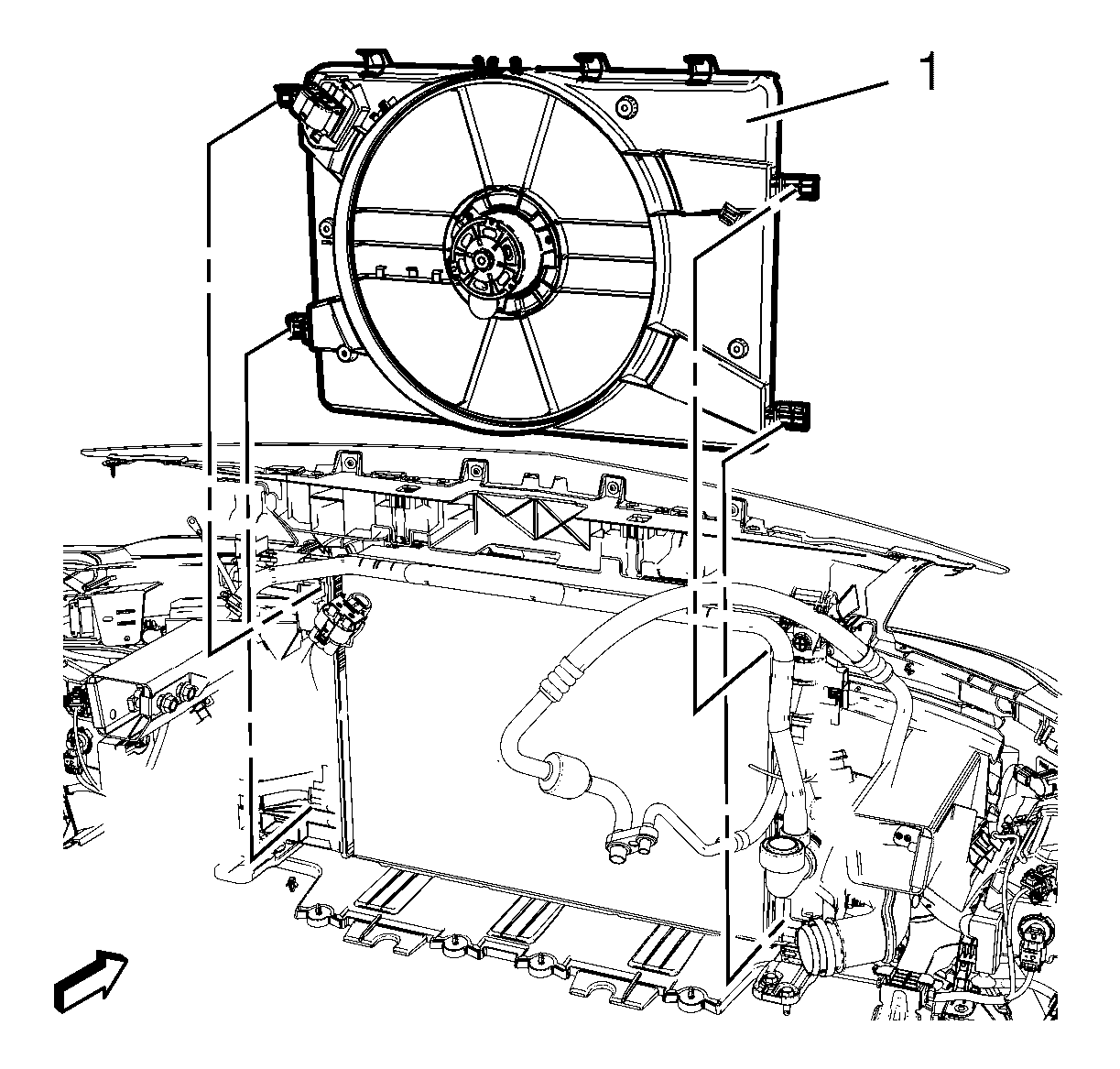

    5. Fig 2: Engine Coolant Fan Shroud
    GM2191512Courtesy of GENERAL MOTORS COMPANY
  5. Install the engine coolant fan shroud (1).
    1. Lower the right hand side of the engine coolant fan shroud (1) behind the radiator.
    2. Slide the engine coolant fan shroud (1) toward the left side of the vehicle.
  6. Clip in the engine coolant fan shroud (1) to the four mounting points shown.

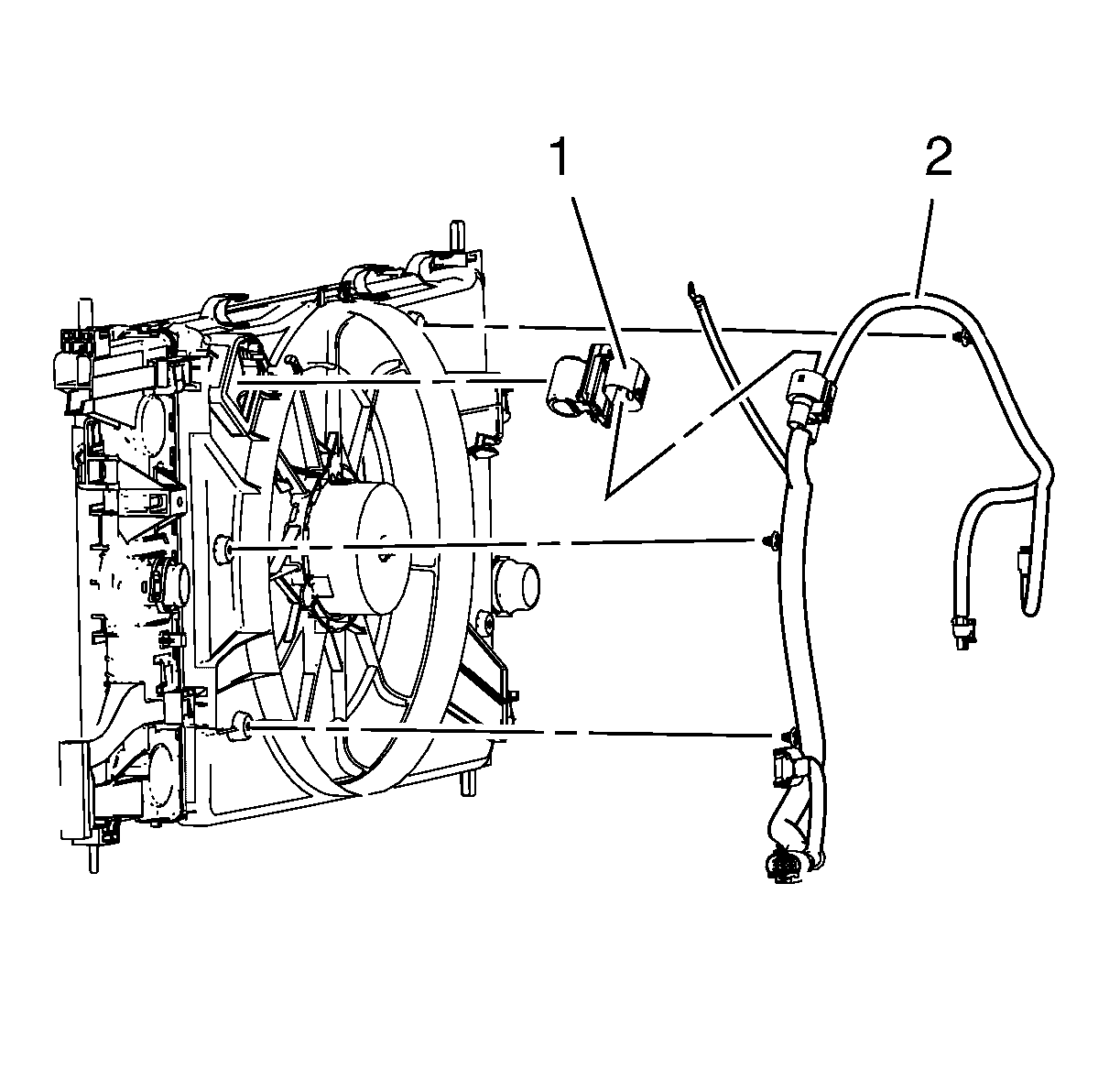

    7. Fig 3: Engine Coolant Fan Resistor Wiring Harness Connector
    GM2028322Courtesy of GENERAL MOTORS COMPANY
  7. Connect the engine coolant fan resistor wiring harness connector (1).
  8. Install the wiring harness (3) and clips.
  9. Install the front end upper tie bar. Refer to Front End Upper Tie Bar Replacement .
  10. Install the left and right side radiator air baffles.
  11. Install the radiator upper air seal.
  12. Connect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
