Shoulder Belt Replacement - Rear

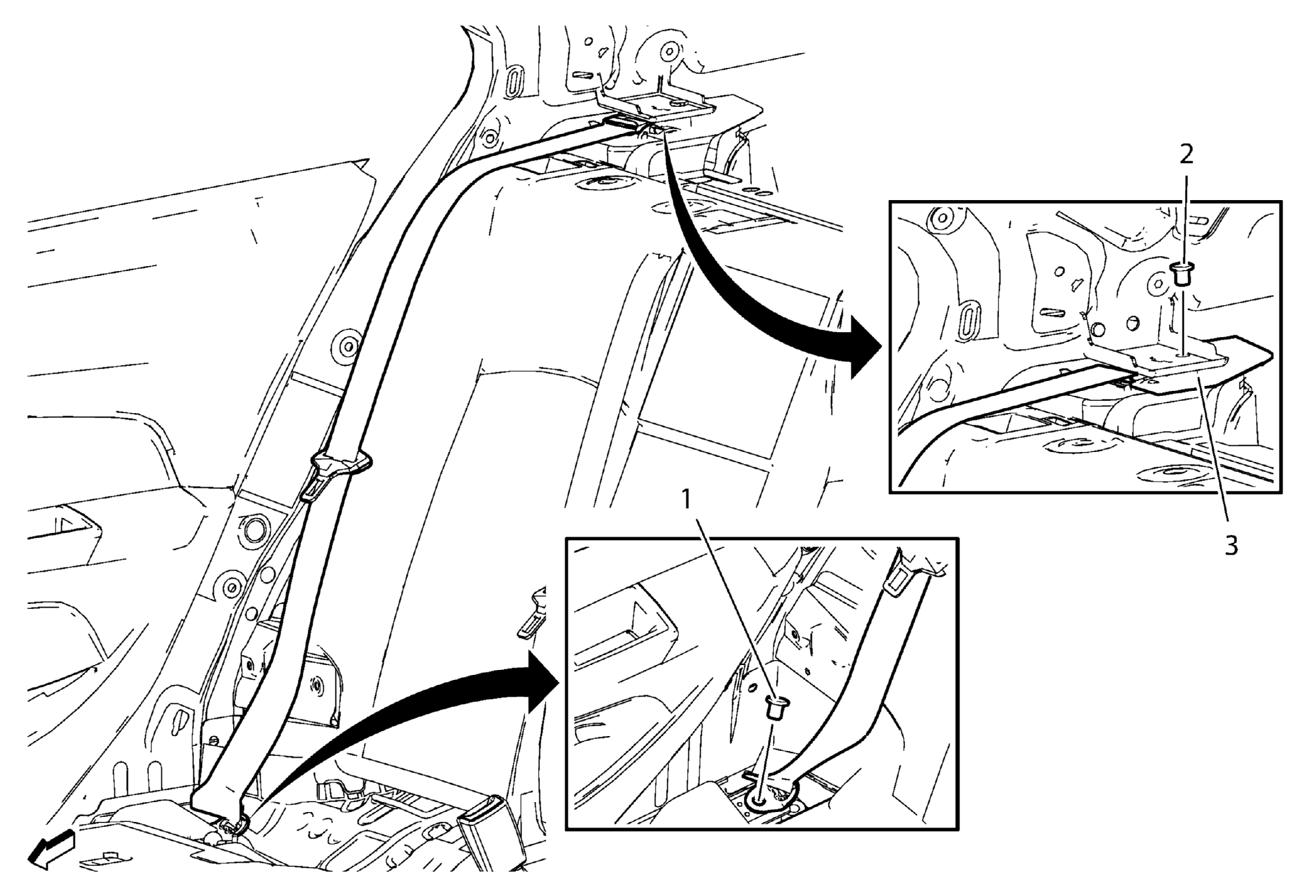

Fig 1: Rear Seat Shoulder Belt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the rear seat back cushion bolster. Refer to Rear Seat Back Cushion Bolster Replacement . Remove the rear seat back. Refer to Rear Seat Removal and Installation (60 Percent Seat) , Rear Seat Removal and Installation (40 Percent Seat) . Remove the quarter window garnish molding. Refer to Quarter Window Garnish Molding Replacement . Remove the rear side door sill trim plate. Rear Side Door Sill Trim Plate Replacement . Remove the body side trim panel. Refer to Body Side Trim Panel Replacement . Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement .
1	Rear Seat Shoulder Belt Anchor Plate Bolt CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Rear Seat Shoulder Belt Retractor Bolt Tighten 45 N.m (33 lb ft)
3	Rear Seat Shoulder Belt
