Front Seat Belt Buckle Replacement

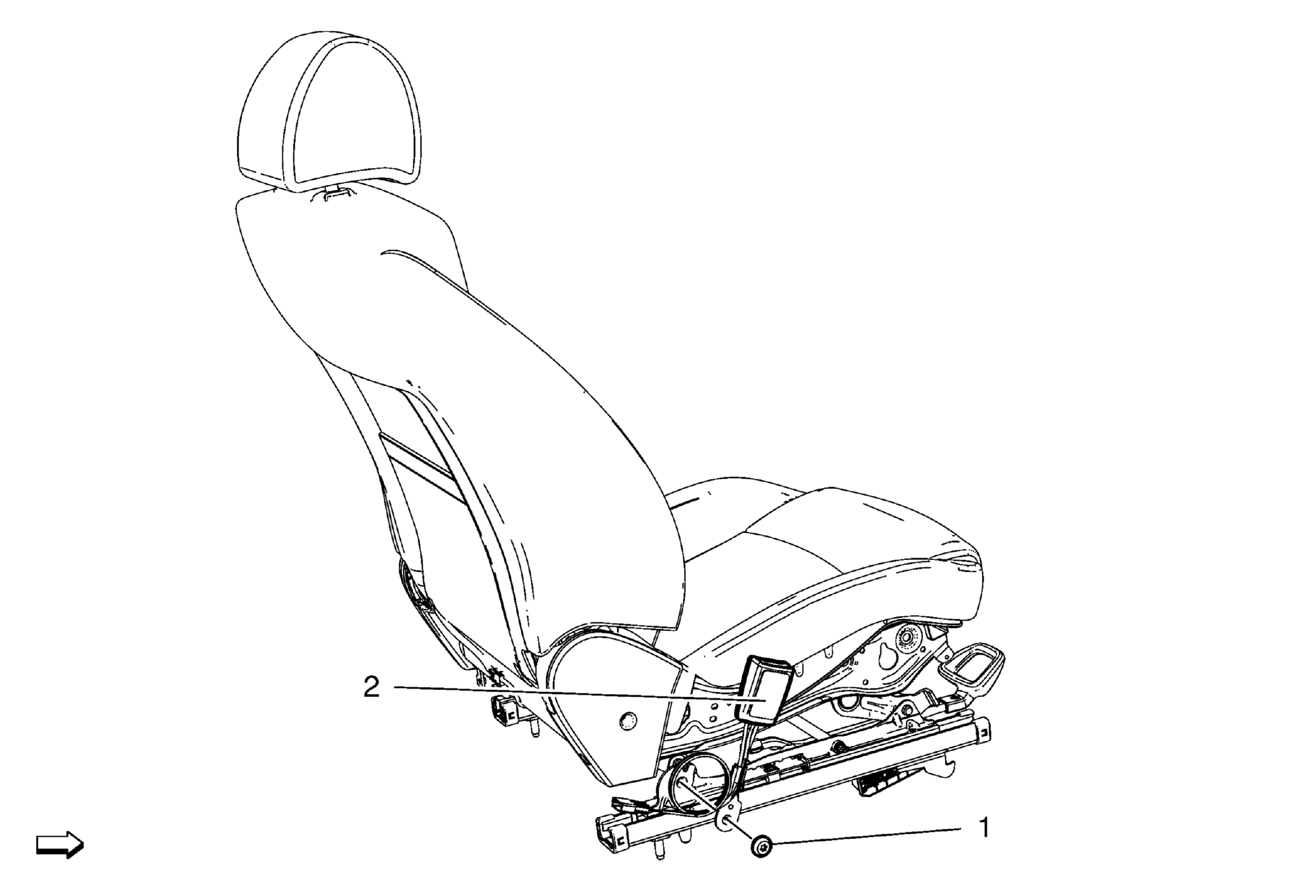

Fig 1: Seat Belt Buckle
GM2027055Courtesy of GENERAL MOTORS COMPANY
Front Seat Belt Buckle Replacement

Callout Component Name
Preliminary Procedures
Remove the front seat. Refer to Driver or Passenger Seat Removal and Installation .
1 Front Seat Belt Buckle Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
45 N.m (33 lb ft)
2 Front Seat Belt Buckle
