GPS Antenna Removal/Installation

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

Remove the audio-navigation unit (see AUDIO-NAVIGATION UNIT REMOVAL/INSTALLATION ).
Remove the gauge control module (see GAUGE CONTROL MODULE REPLACEMENT ).
Remove the wire harness clips (A), the screws, and the GPS antenna (B).

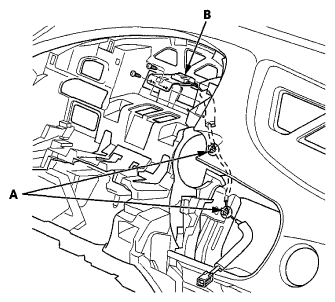

Fig 1: Identifying GPS Antenna And Wire Harness Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the antenna in the reverse order of removal.
