Installation Procedure
WARNING: This page is about a different car, the 2014 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

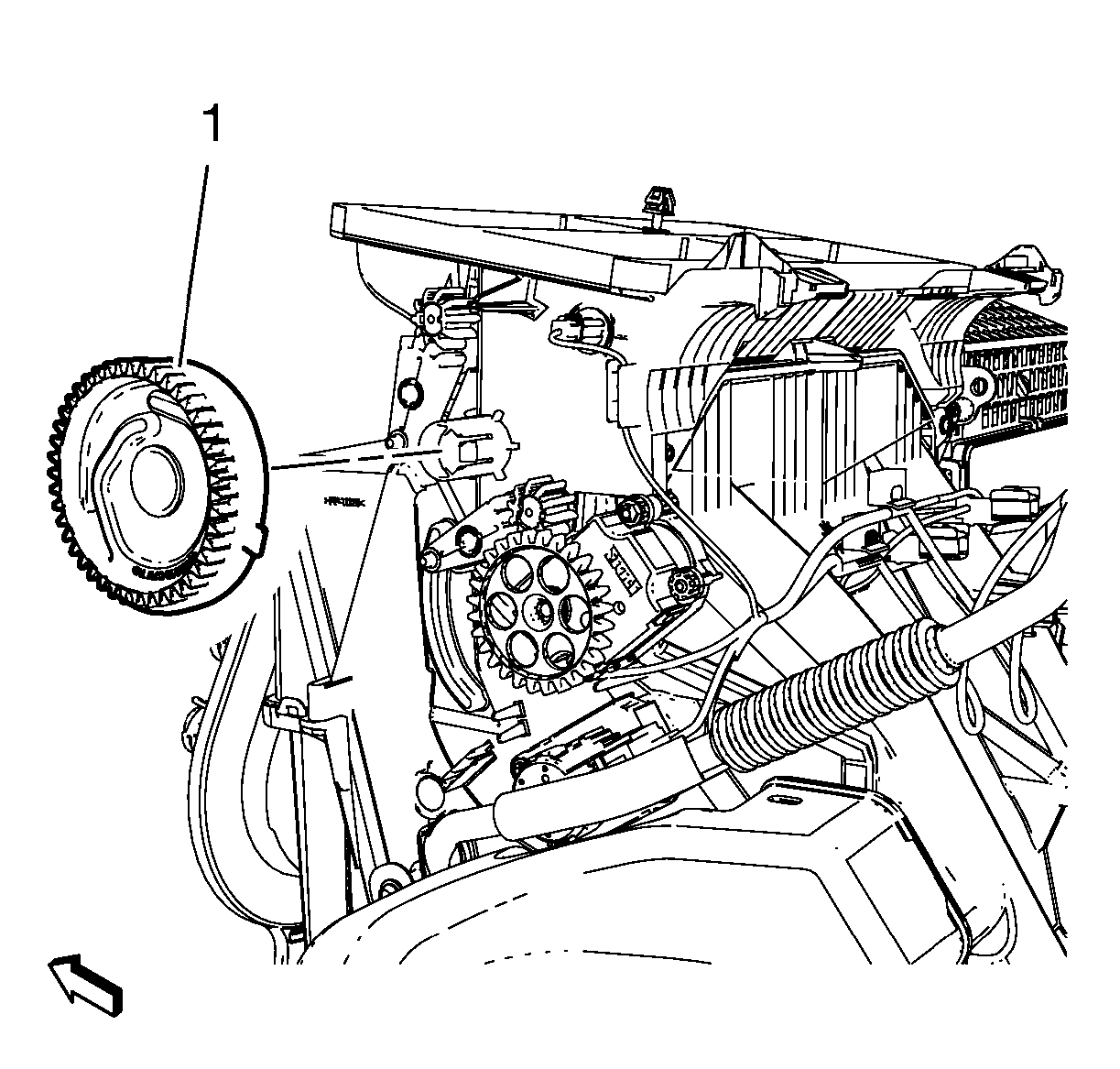

- Install mode control cam (1).
- Install the mode control cam actuator. Refer to Mode Control Cam Actuator Replacement
- Install the brake, accelerator and clutch pedal. Refer to Brake, Accelerator and Clutch Pedal Replacement .
NOTE:
The mode control cam can only be fitted in one position.
