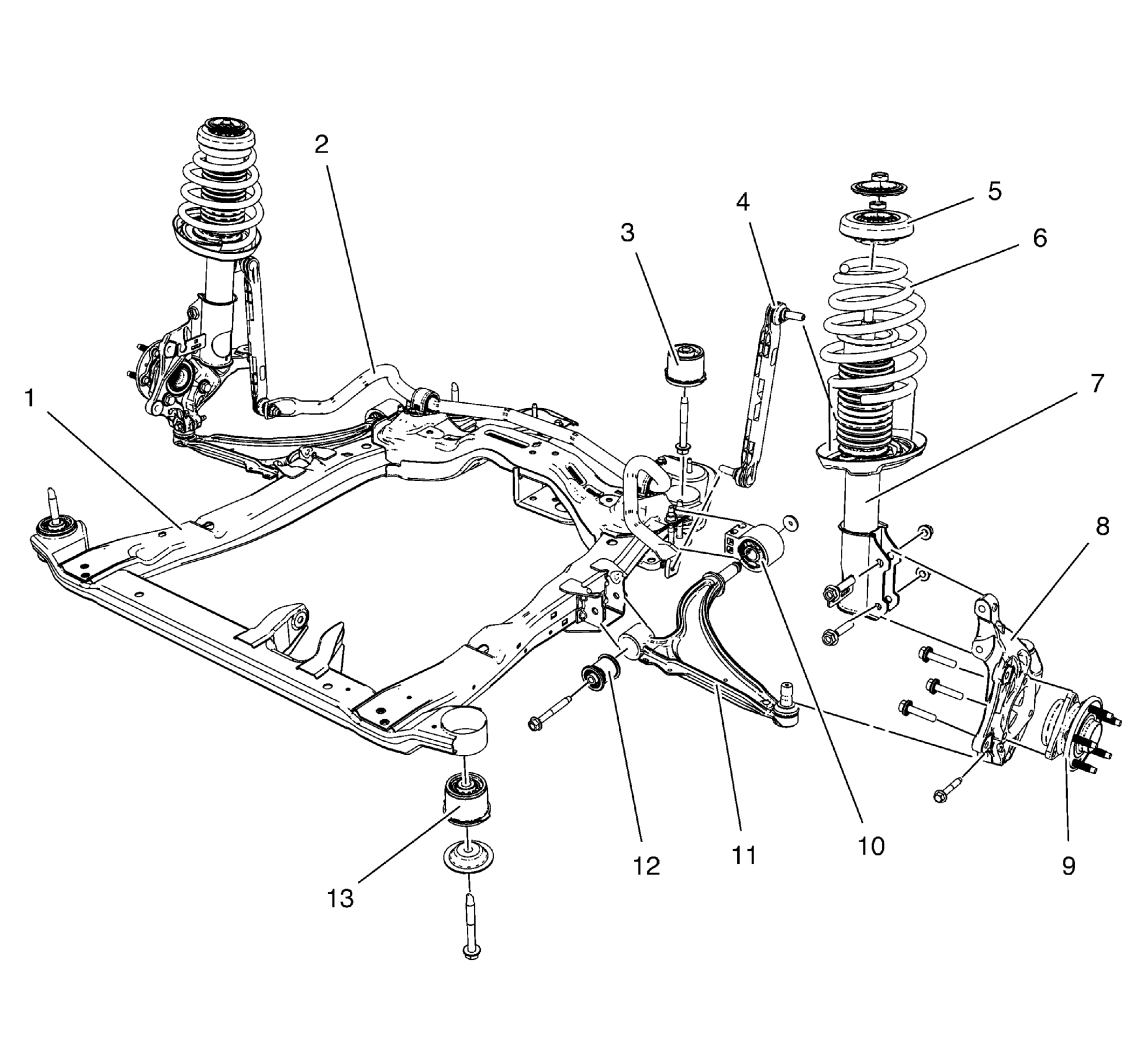

Front Suspension Components
WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Drivetrain and Front Suspension Frame |
| 2 | Front Stabilizer Shaft |
| 3 | Drivetrain and Front Suspension Frame Rear Insulator |
| 4 | Front Stabilizer Shaft Link |
| 5 | Front Suspension Strut Insulator Assembly |
| 6 | Front Spring |
| 7 | Shock Absorber Assembly |
| 8 | Steering Knuckle |
| 9 | Front Wheel Bearing/Hub Assembly |
| 10 | Front Lower Control Arm Rear Bushing |
| 11 | Front Lower Control Arm |
| 12 | Front Lower Control Arm Bushing |
| 13 | Drivetrain and Front Suspension Frame Rear Insulator |
