Inflatable Restraint Side Impact Sensor Replacement

WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

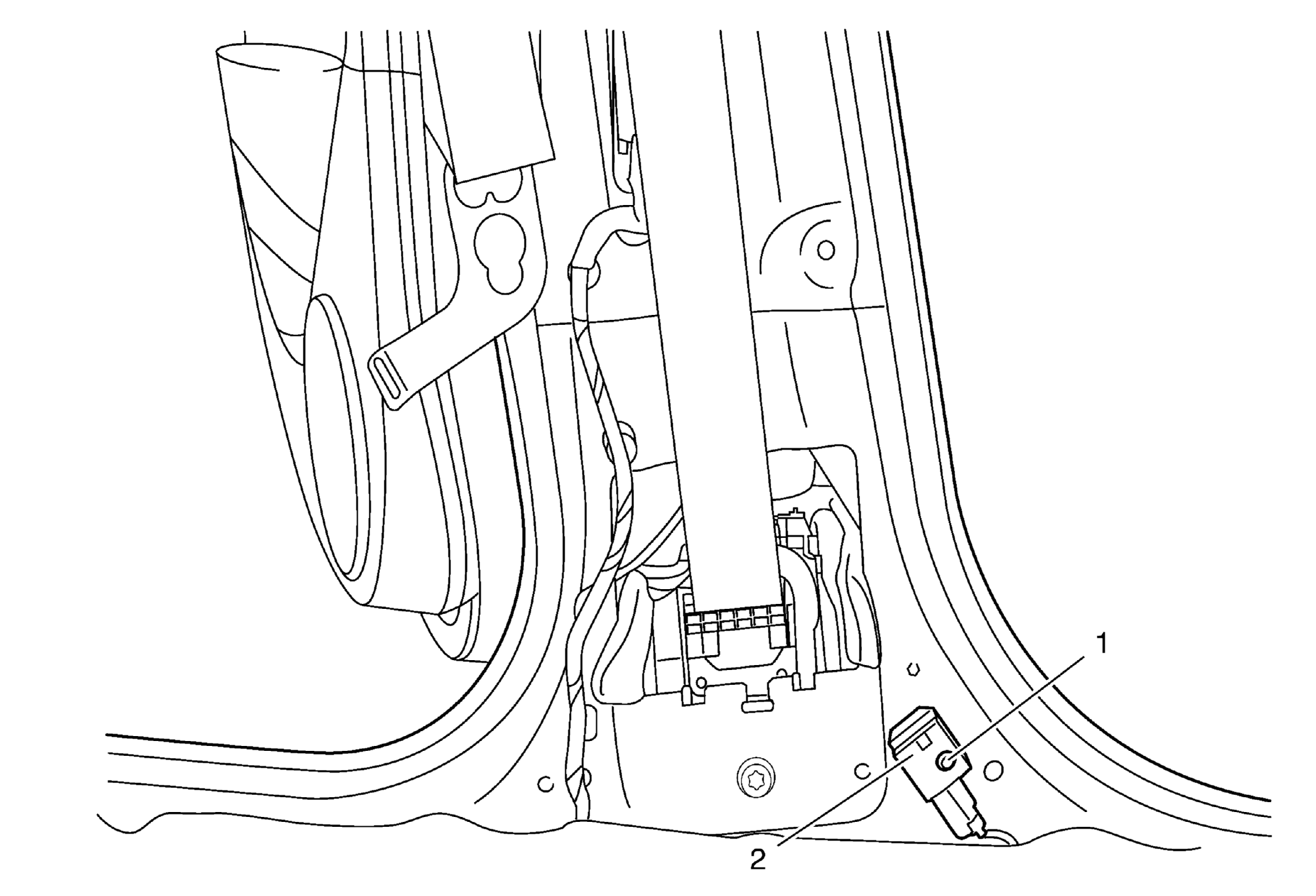

Fig 1: Inflatable Restraint Side Impact Sensor And Screw
GM2027731Courtesy of GENERAL MOTORS CORP.
Callout Component Name
WARNING: Refer to SIR Warning .
WARNING: Refer to SIR Inflator Module Handling and Storage Warning .
WARNING: Following the deployment of a side impact air bag, inspect the following parts for damage. Replace these parts if necessary:
  • The seat cushion frame
  • The seat recliner, if equipped
  • The seat adjuster
  • The seat back frame

Failure to do so may cause future personal injury.

Preliminary Procedures

  1. Disable the SIR system. Refer to SIR Disabling and Enabling .
  2. Remove the center pillar lower garnish molding. Refer to Center Pillar Lower Garnish Molding Replacement .
1 Inflatable Restraint Side Impact Sensor Screw
CAUTION: Refer to Fastener Caution .

Tighten:  7.5 N.m (66 lb in)
2 Inflatable Restraint Side Impact Sensor

Procedure

  1. Disconnect electrical connector.
  2. Loosen the bolts and slide the sensor out of the keyhole slots.

Tip:  The bolt is integral to the sensor assembly, DO NOT remove separately.
