Windshield Washer Solvent Container Filler Tube Replacement
WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

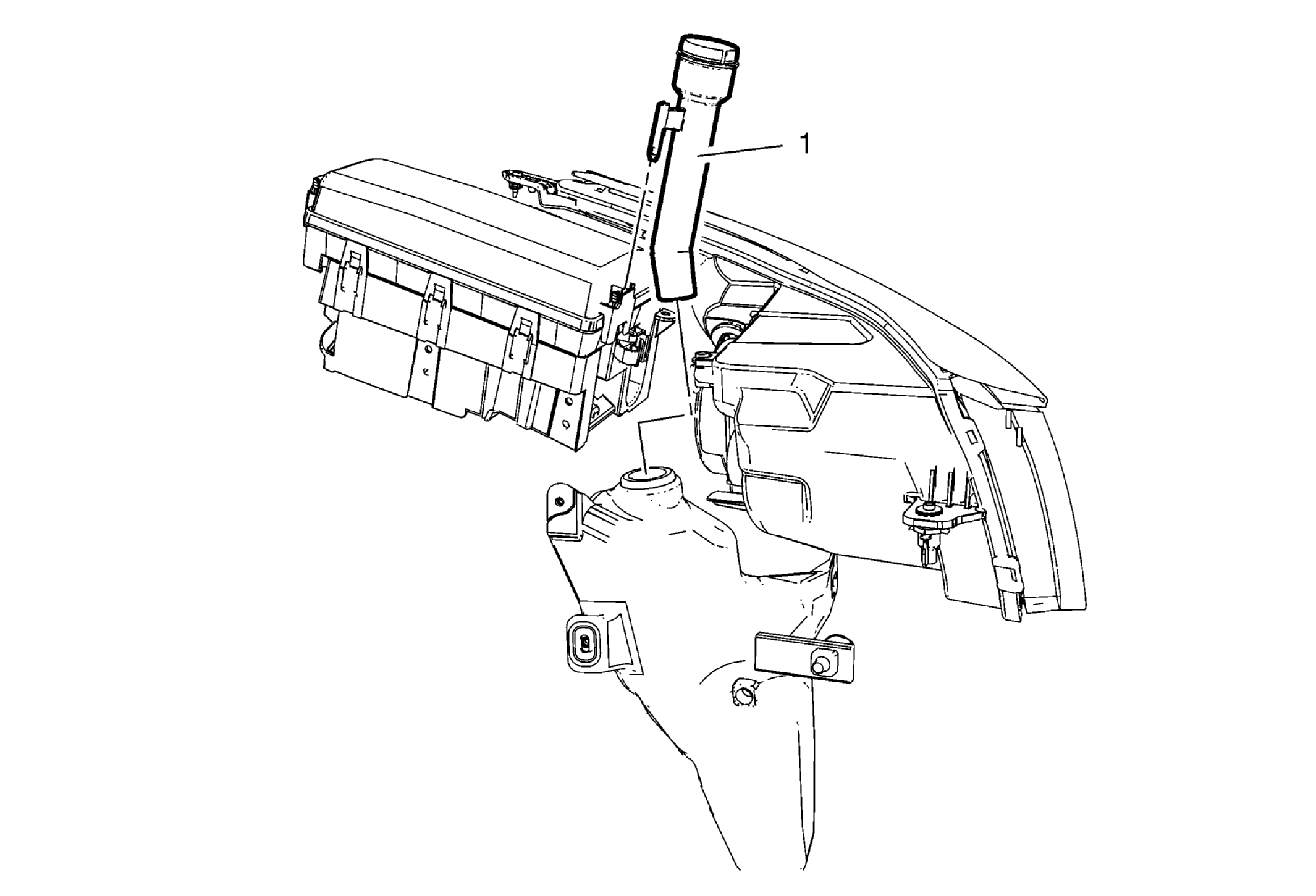

| Callout |
Component Name |
| 1 |
Windshield Washer Solvent Container Filler Tube Assembly Procedure
- Pull the upper tube assembly from the lower washer container and inspect the grommet, replace if damaged.
- Insert the tube rib flush to the top seal at the lower container.
|
