Reading Lamp Bulb Replacement
WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

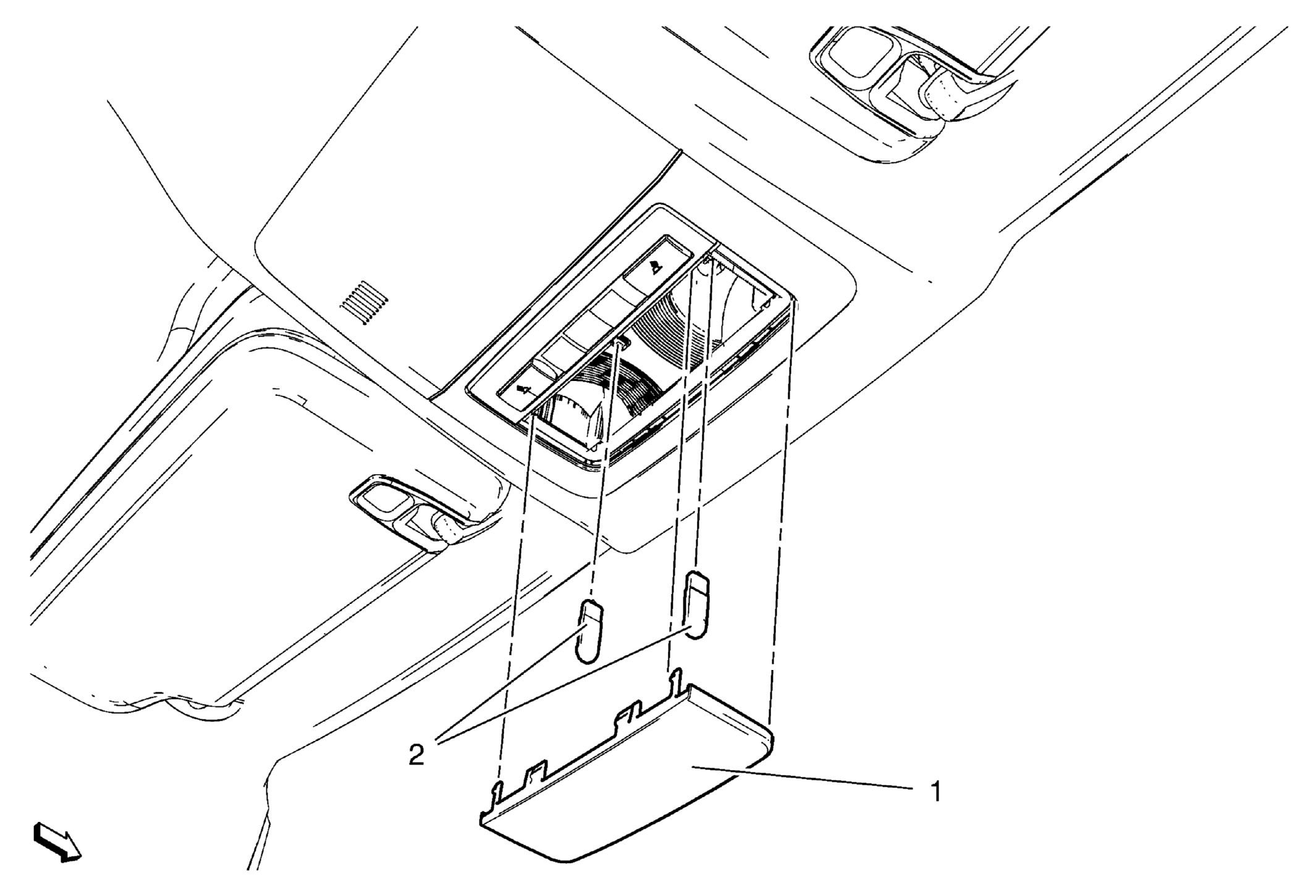

| Callout |
Component Name |
| 1 |
Reading Lamp Lens
Procedure:
Using a plastic flat-bladed tool, gently pry the rear edge of the reading lamp lens to remove. |
| 2 |
Reading Lamp Bulb (Qty: 2)
Procedure:
Pull to release bulb from socket. |
