Headlamp Replacement

WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

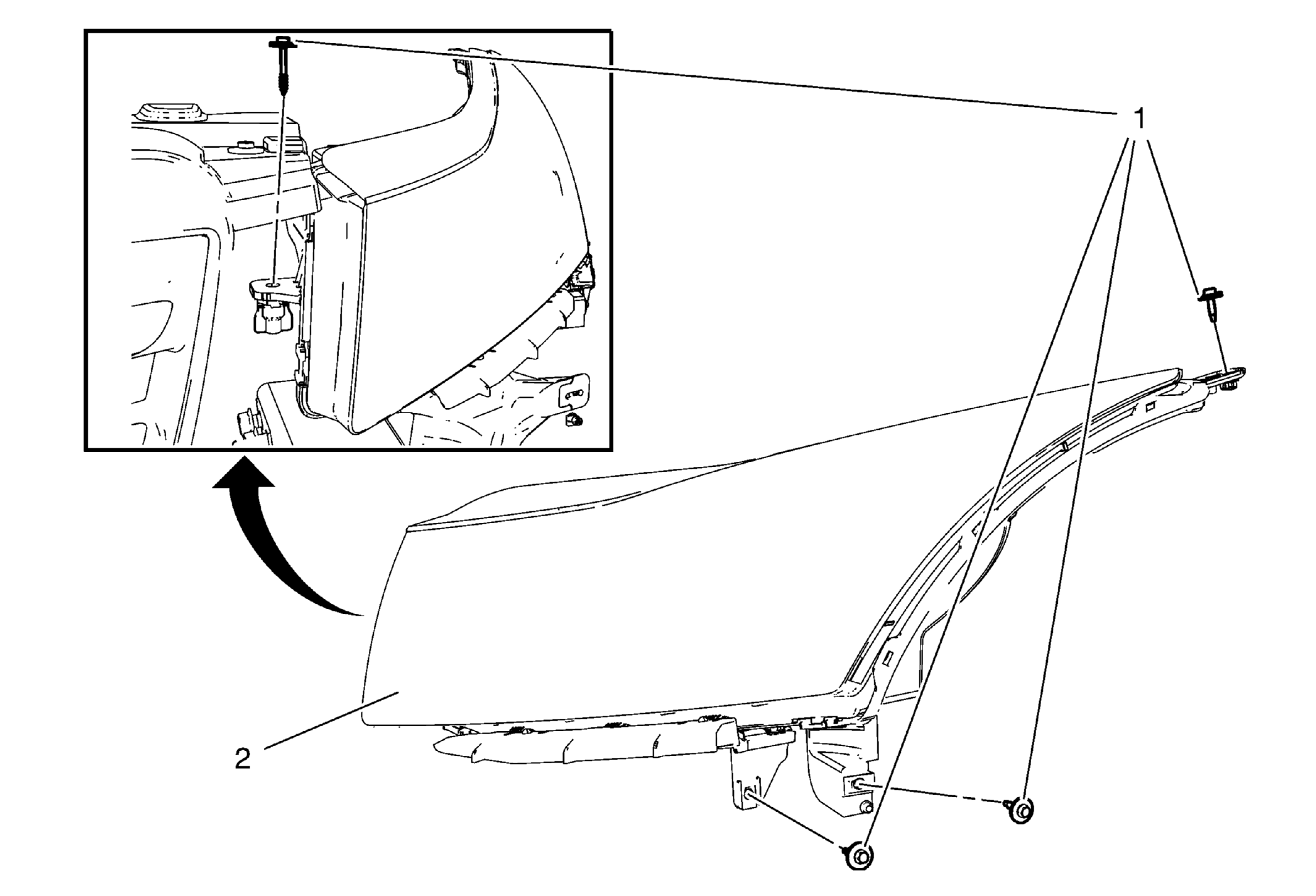

Fig 1: Headlamp
GM2027532Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedures:
Remove the front bumper fascia guide. Refer to Front Bumper Fascia Guide Replacement .
1 Headlamp Screw (Qty: 4)
CAUTION: Refer to Fastener Caution .

Procedure:
Secure the headlamp fasteners in sequence, as indicated.

Tighten:  2.5 N.m (22 lb in)
2 Headlamp Assembly

Procedure

  1. Pull forward on the outside edge of the headlamp in order to release the up and down locator tabs on the backside of the headlamp.
  2. Pull forward on the top inside edge of the headlamp to release the inboard up/down locator.
  3. Pull the headlamp assembly down.
  4. Pull the headlamp assembly forward far enough to access the electrical connection.
  5. Disconnect the headlamp electrical connector from the forward lamp harness connector.
  6. Remove the headlamp assembly.
  7. Aim the headlamps after installation. Refer to Headlamp Aiming .
