Front Fog Lamp Replacement
WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

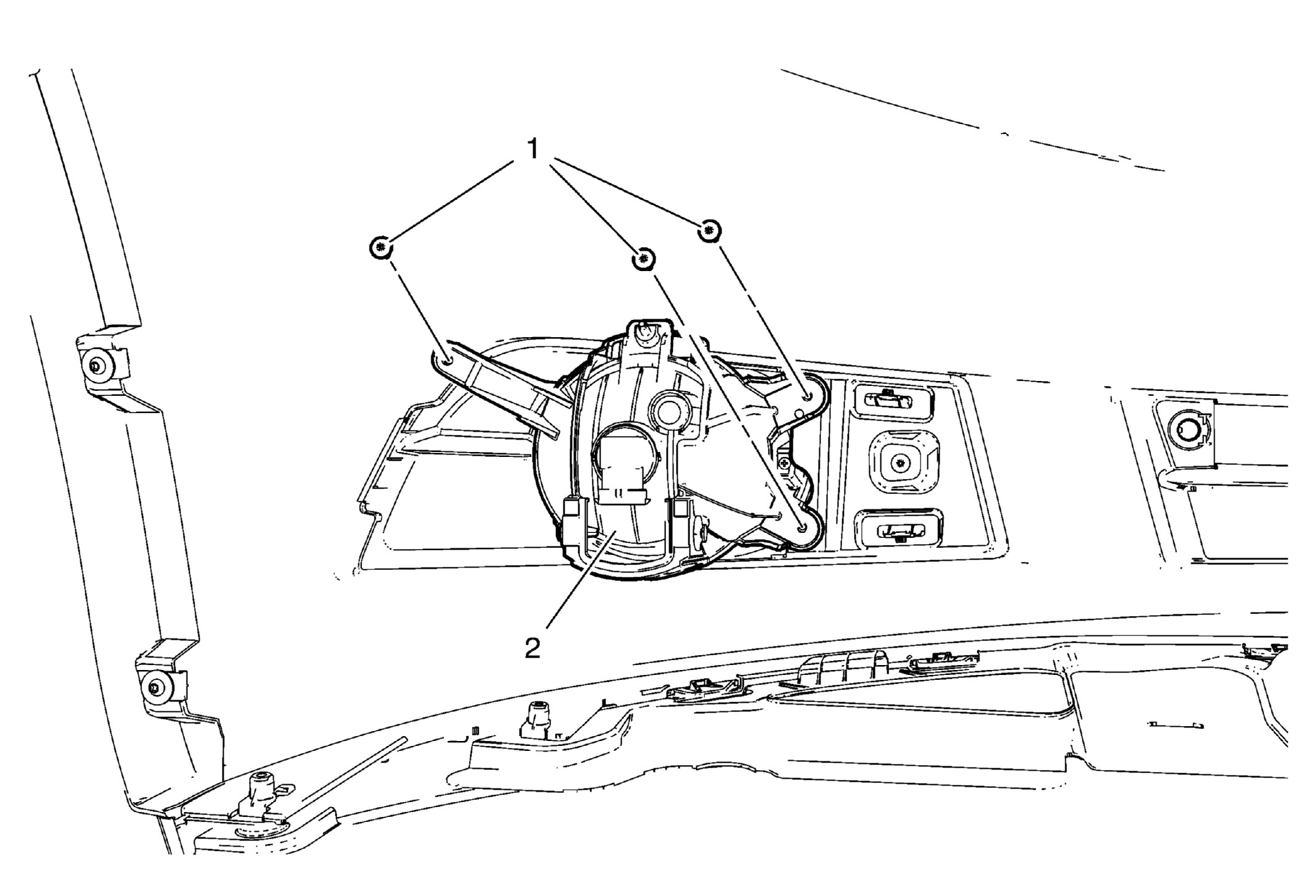

| Callout | Component Name |
|---|---|
| Preliminary Procedures: Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . |
|
| 1 | Front Fog Lamp Screws (Qty: 3)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2.5 N.m (22 lb in) |
| 2 | Front Fog Lamp Assembly Procedure: Aim the fog lamp after installation. Refer to Fog Lamp Aiming . |
