Backup Lamp Replacement

WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

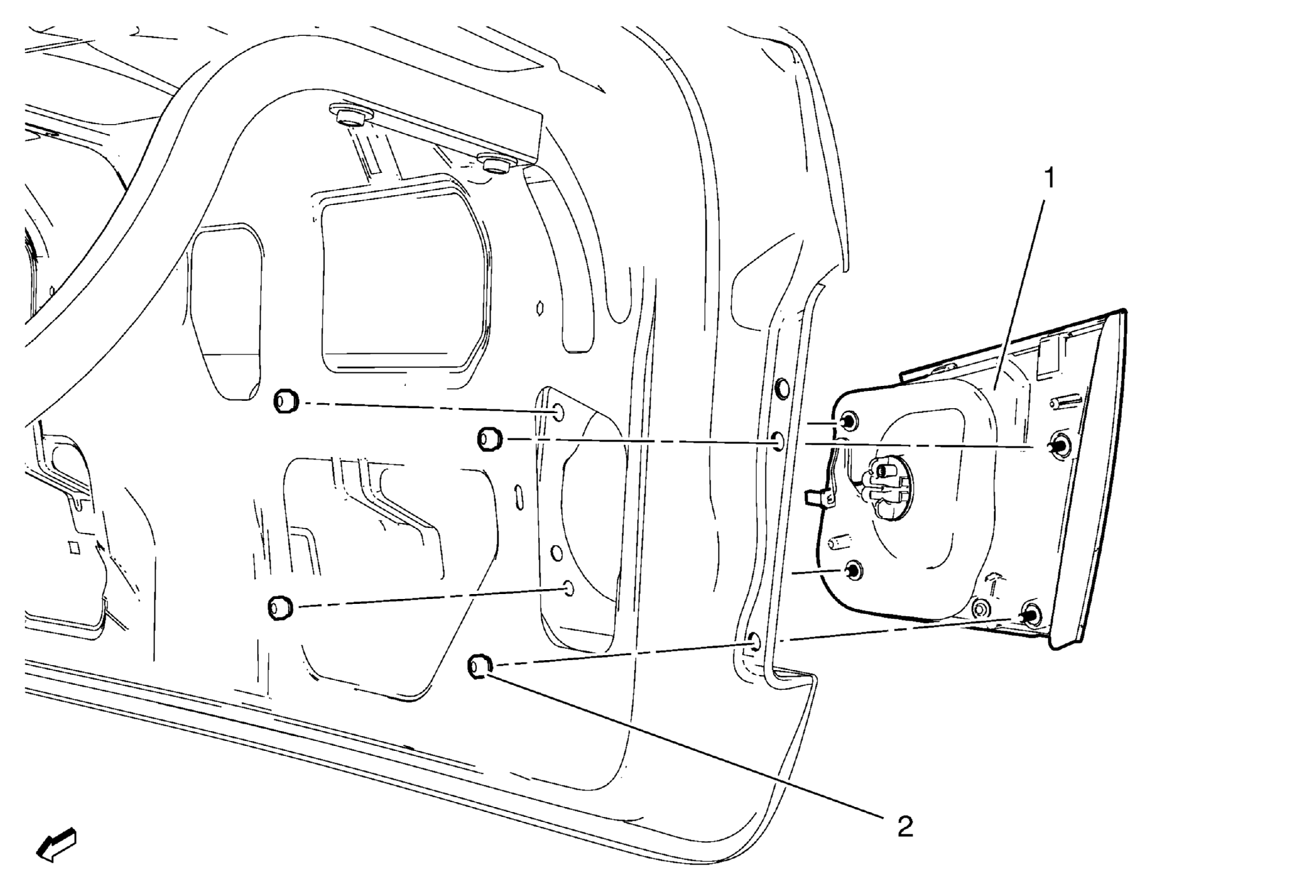

Fig 1: Backup Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1	Back Up Lamp Nut (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 5 N.m (44 lb ft)
2	Back Up Lamp Assembly WARNING: Refer to Glass and Sheet Metal Handling Warning . WARNING: Refer to Halogen Bulb Warning . Procedure Disconnect electrical connectors. Reach inside the rear compartment lid inner panel and remove the lower and upper retainer nuts securing the lamp assembly to the outer rear compartment lid panel. Push the inside edge of the lamp assembly outward from the rear outer compartment lid panel. Remove and transfer the bulb socket from the back up lamp assembly.

Callout

Component Name

Preliminary Procedures:
Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .

Back Up Lamp Nut (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten: 5 N.m (44 lb ft)

Back Up Lamp Assembly

WARNING: Refer to Glass and Sheet Metal Handling Warning .

WARNING: Refer to Halogen Bulb Warning .

Procedure

Disconnect electrical connectors.
Reach inside the rear compartment lid inner panel and remove the lower and upper retainer nuts securing the lamp assembly to the outer rear compartment lid panel.
Push the inside edge of the lamp assembly outward from the rear outer compartment lid panel.
Remove and transfer the bulb socket from the back up lamp assembly.
