Starting and Charging Wiring Schematics: Charging

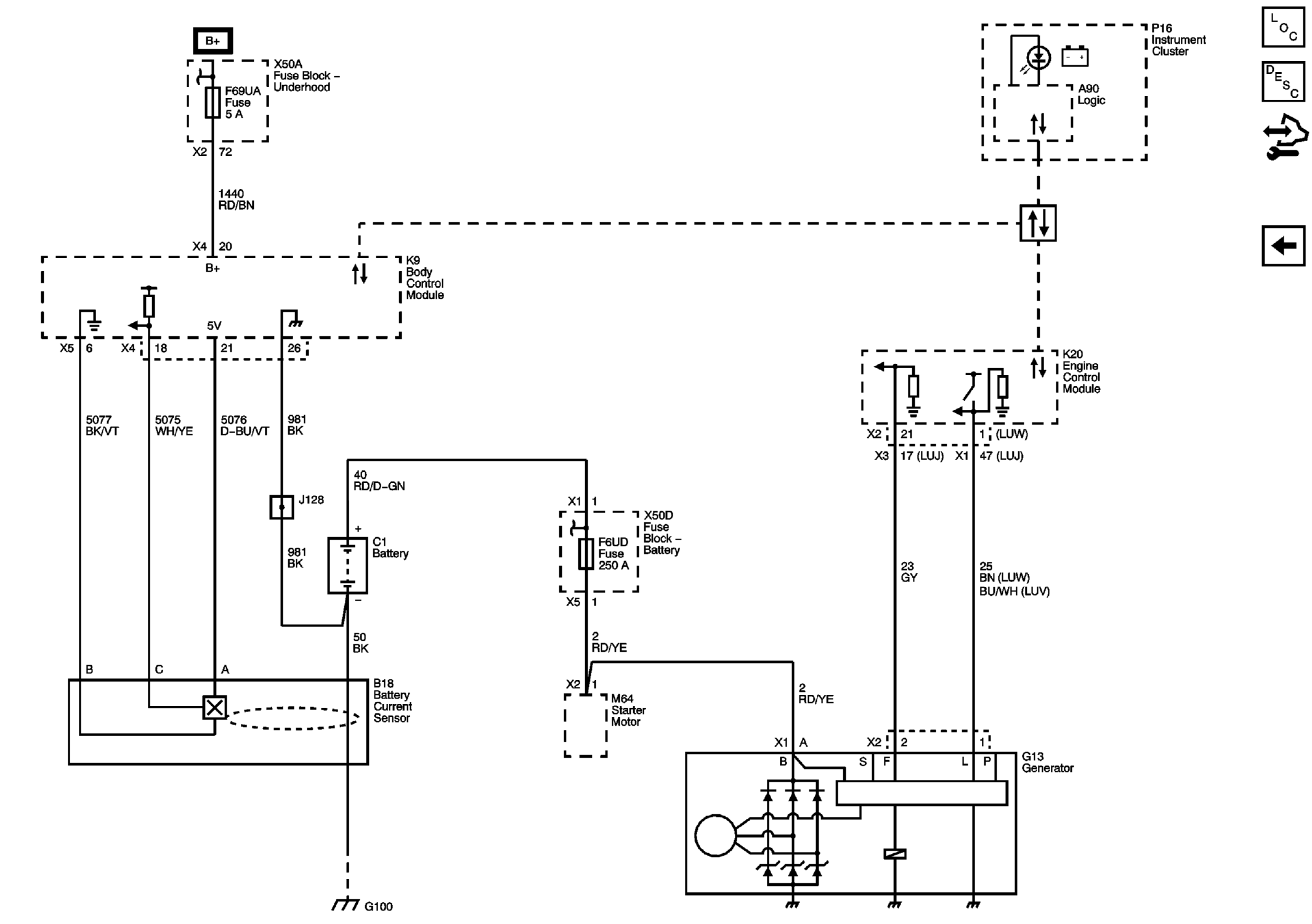

Fig 1: Charging Wiring Schematic

GM2587636

Courtesy of GENERAL MOTORS COMPANY
