Exhaust Heat Shield Replacement

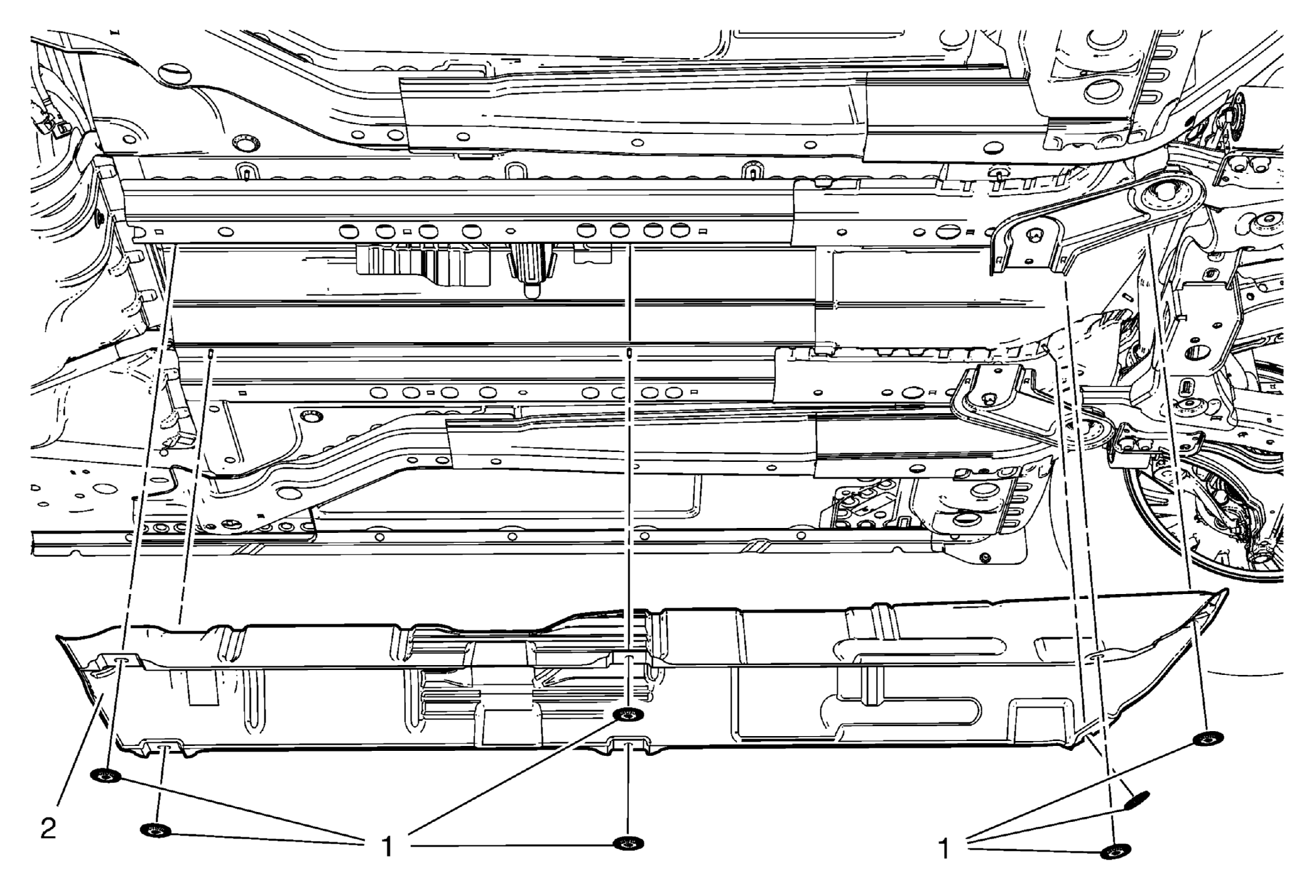

Fig 1: Exhaust Heat Shield And Retainers

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool. WARNING: Always wear protective goggles and gloves when removing exhaust parts as falling rust and sharp edges from worn exhaust components could result in serious personal injury. Preliminary Procedure Remove the exhaust front pipe. Refer to Exhaust Front Pipe Replacement .
1	Heat Shield Retainer (Qty: 7)
2	Heat Shield
