Engine Oil Cooler Replacement (LUW): Notes

  1. Remove the exhaust manifold. Refer to Exhaust Manifold Replacement (LUW) .
  2. Drain the cooling system. Refer to Cooling System Draining and Filling (GE-47716 Fill) , Cooling System Draining and Filling (Static Fill) .

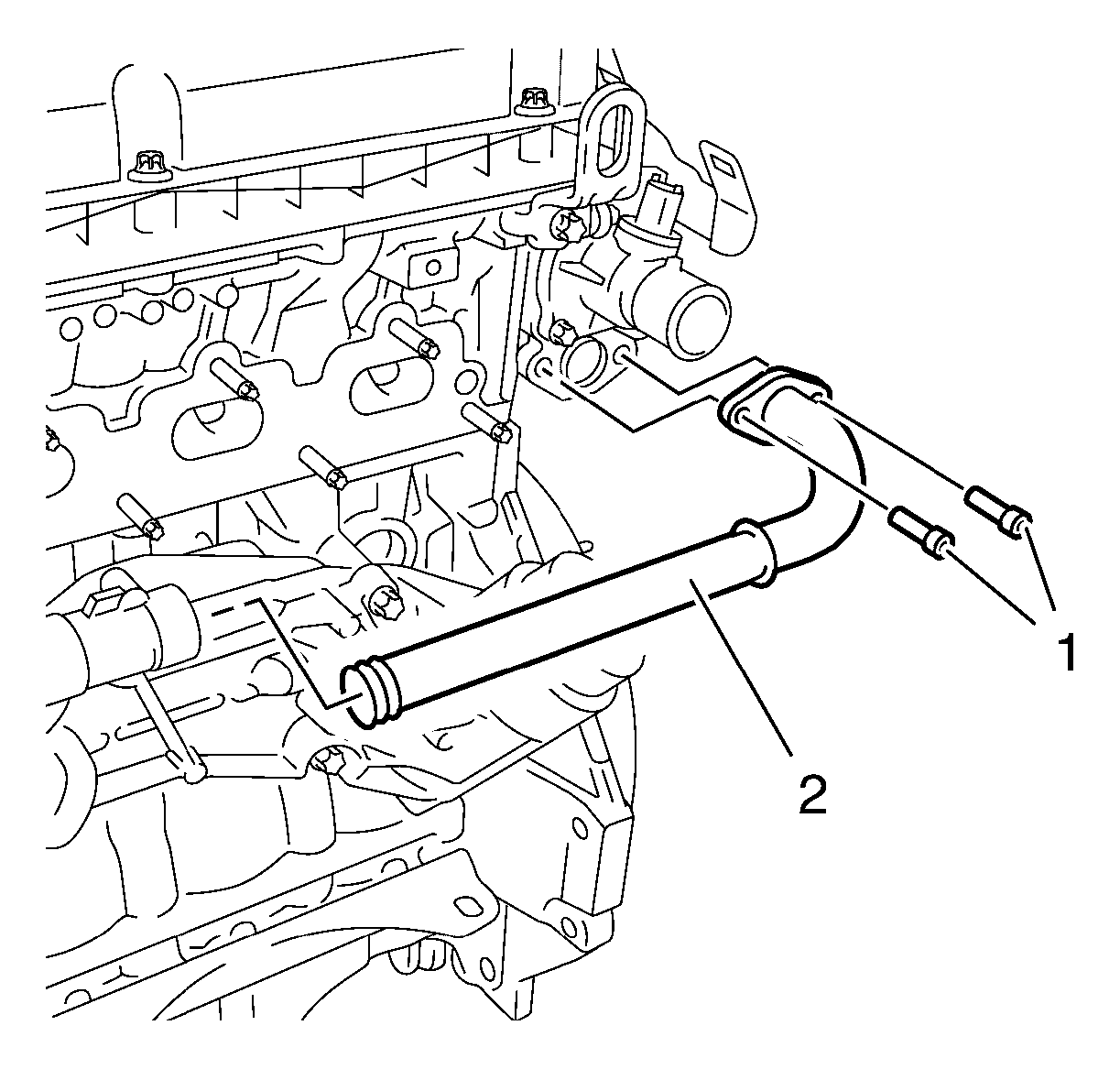

    3. Fig 1: Engine Oil Cooler Outlet Pipe And Bolts
    GM2026830Courtesy of GENERAL MOTORS COMPANY
  3. Remove the 2 engine oil cooler outlet pipe bolts (1).
  4. Remove the engine oil cooler outlet pipe (2) from the engine oil cooler housing and the engine coolant thermostat housing.
  5. Remove the 2 engine oil cooler outlet pipe gaskets.

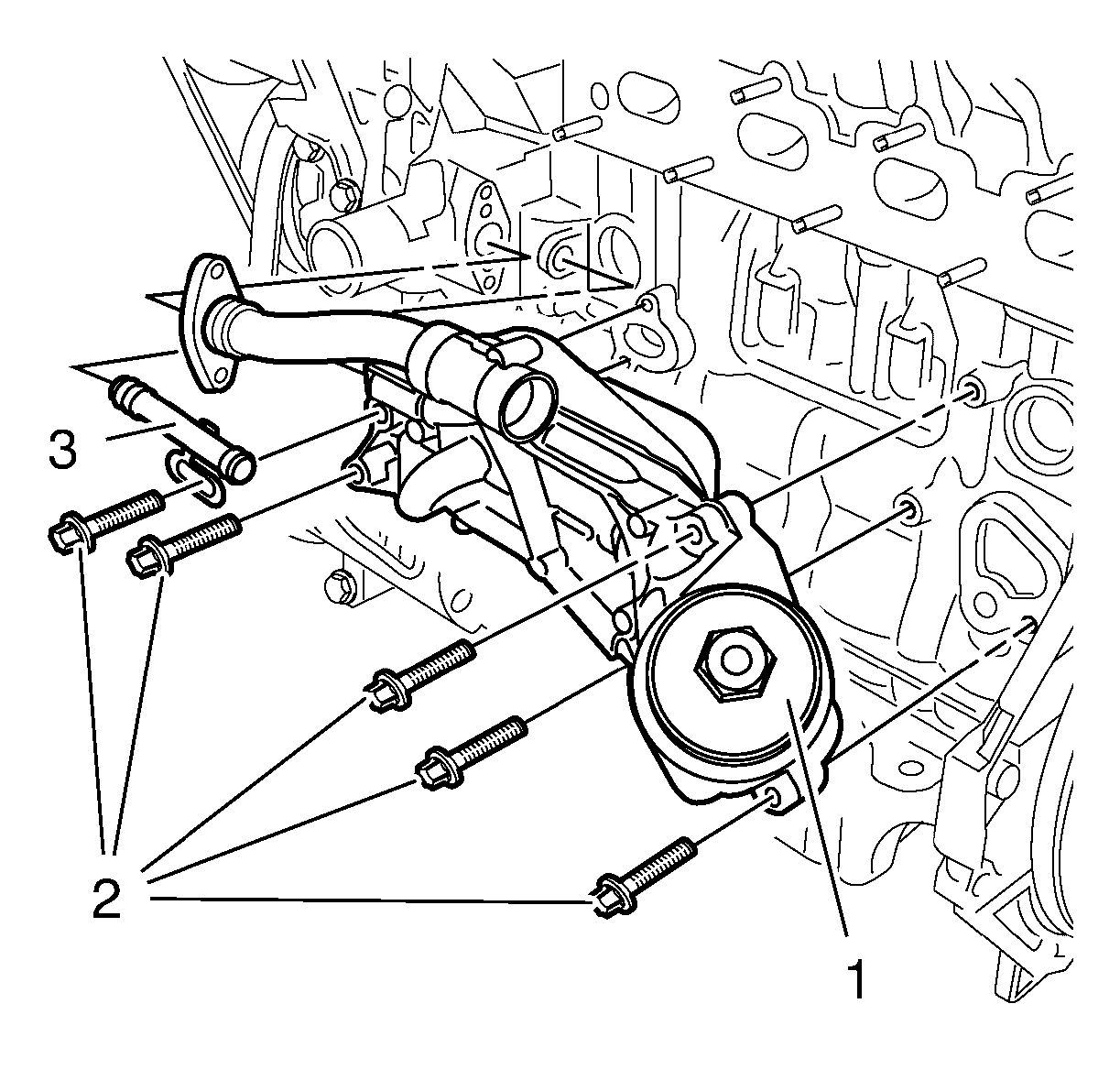

    6. Fig 2: Engine Oil Cooler Housing, Bolts And Engine Oil Cooler Inlet Pipe
    GM2026867Courtesy of GENERAL MOTORS COMPANY
  6. Remove the 5 engine oil cooler housing bolts (2).
  7. Remove the engine oil cooler housing (1).
  8. Remove the 2 engine oil cooler housing gaskets.
  9. Remove the engine oil cooler inlet pipe (3).
  10. Remove the 2 engine oil cooler inlet pipe gaskets.

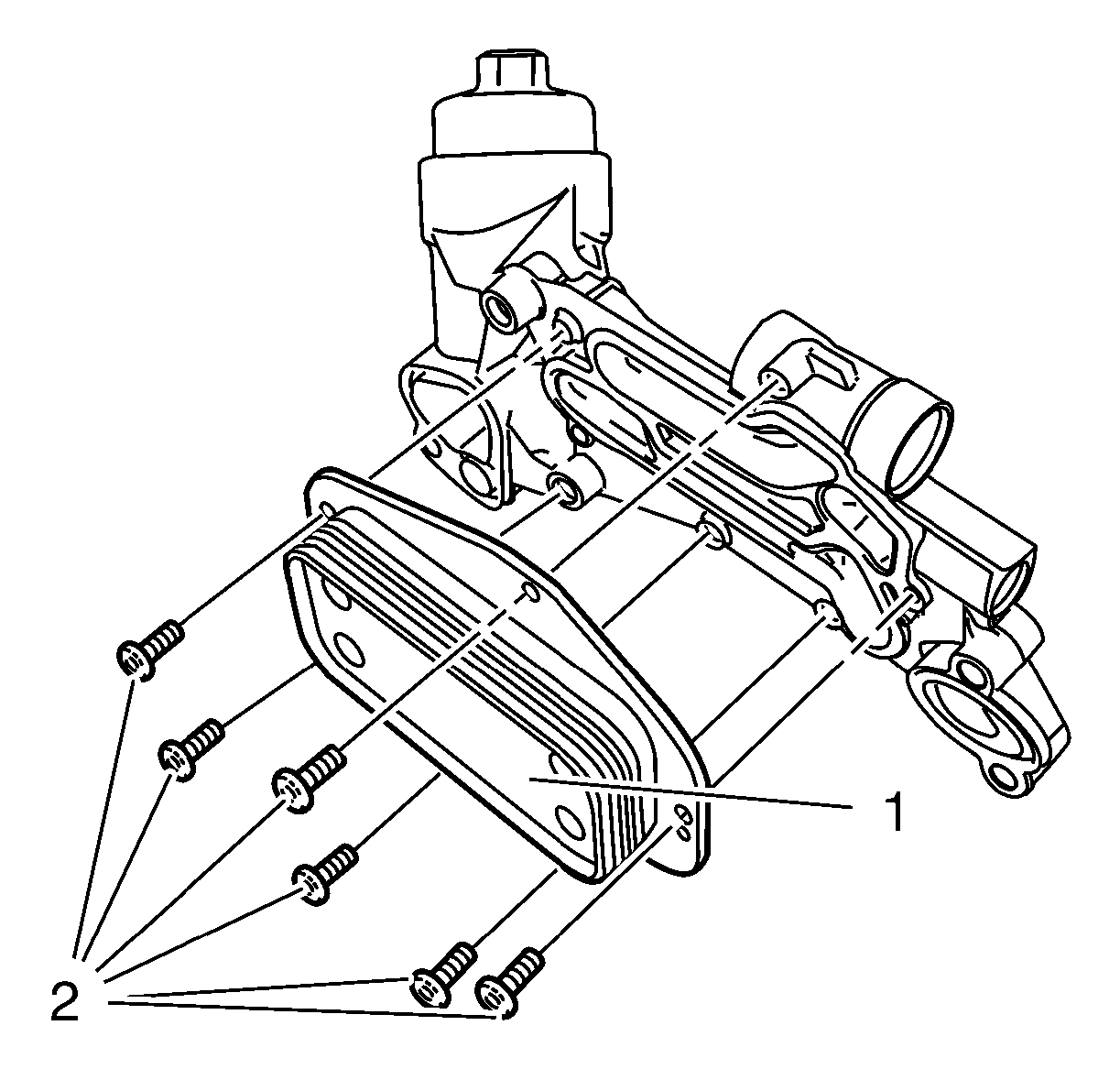

    11. Fig 3: Engine Oil Cooler And Bolts
    GM2026831Courtesy of GENERAL MOTORS COMPANY
  11. Remove the 6 engine oil cooler bolts (2) and the engine oil cooler (1) from the engine oil cooler housing.
  12. Remove the engine oil cooler gasket.
