Starter Replacement (LUW)

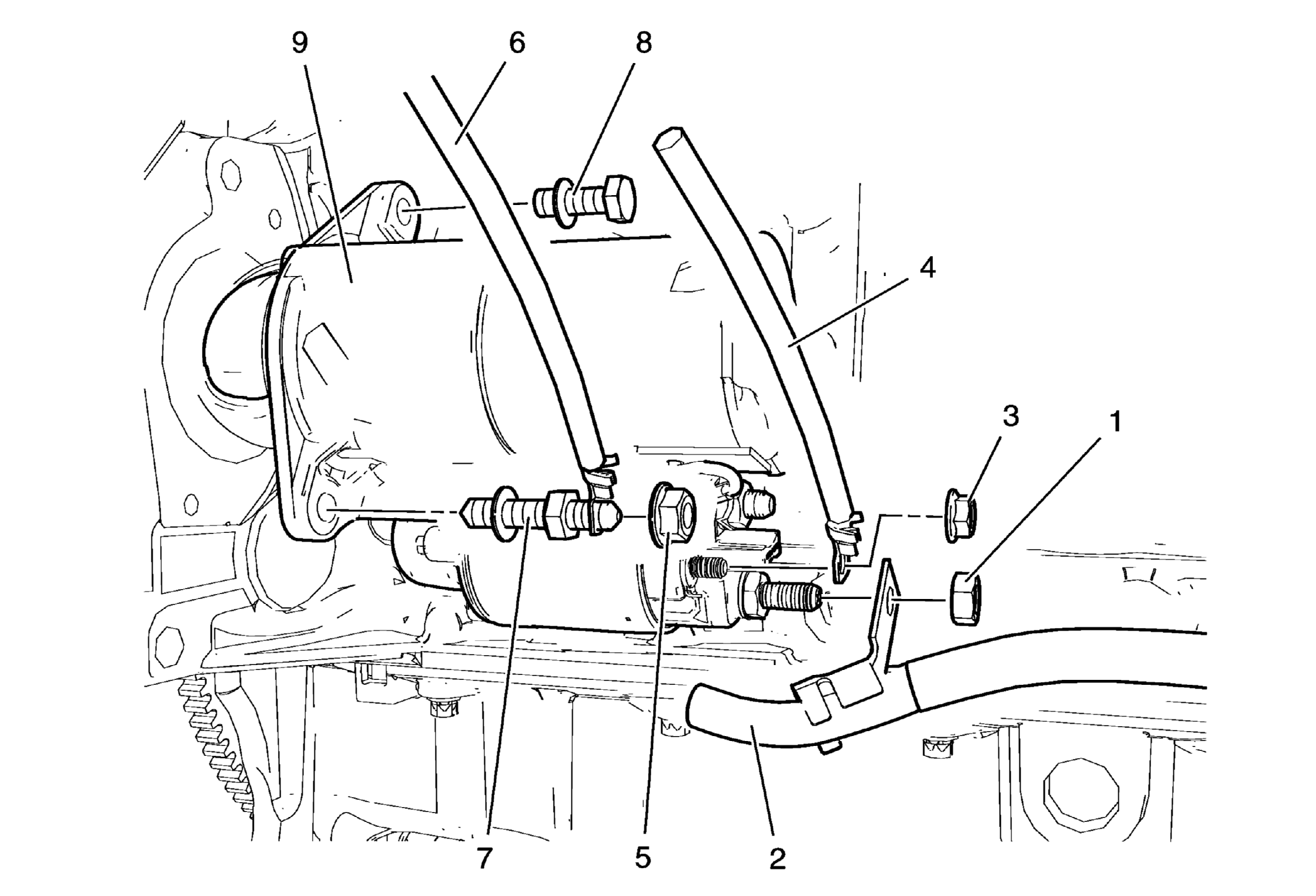

Fig 1: Starter (LUW)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative cable from the battery. Refer to Battery Negative Cable Disconnection and Connection . Remove the intake manifold brace. Refer to Intake Manifold Replacement .
1	Starter and Generator Positive Cable Nut CAUTION: Refer to Fastener Caution . Tighten 12.5 N.m (111 lb in)
2	Starter and Generator Positive Cable
3	Starter Positive Cable Nut Tighten 12.5 N.m (111 lb in)
4	Starter Positive Cable
5	Starter Ground Cable Nut Tighten 20 N.m (15 lb ft)
6	Starter Ground Cable
7	Starter Stud Tighten 25 N.m (18 lb ft)
8	Starter Bolt Tighten 25 N.m (18 lb ft)
9	Starter
