Installation Procedure

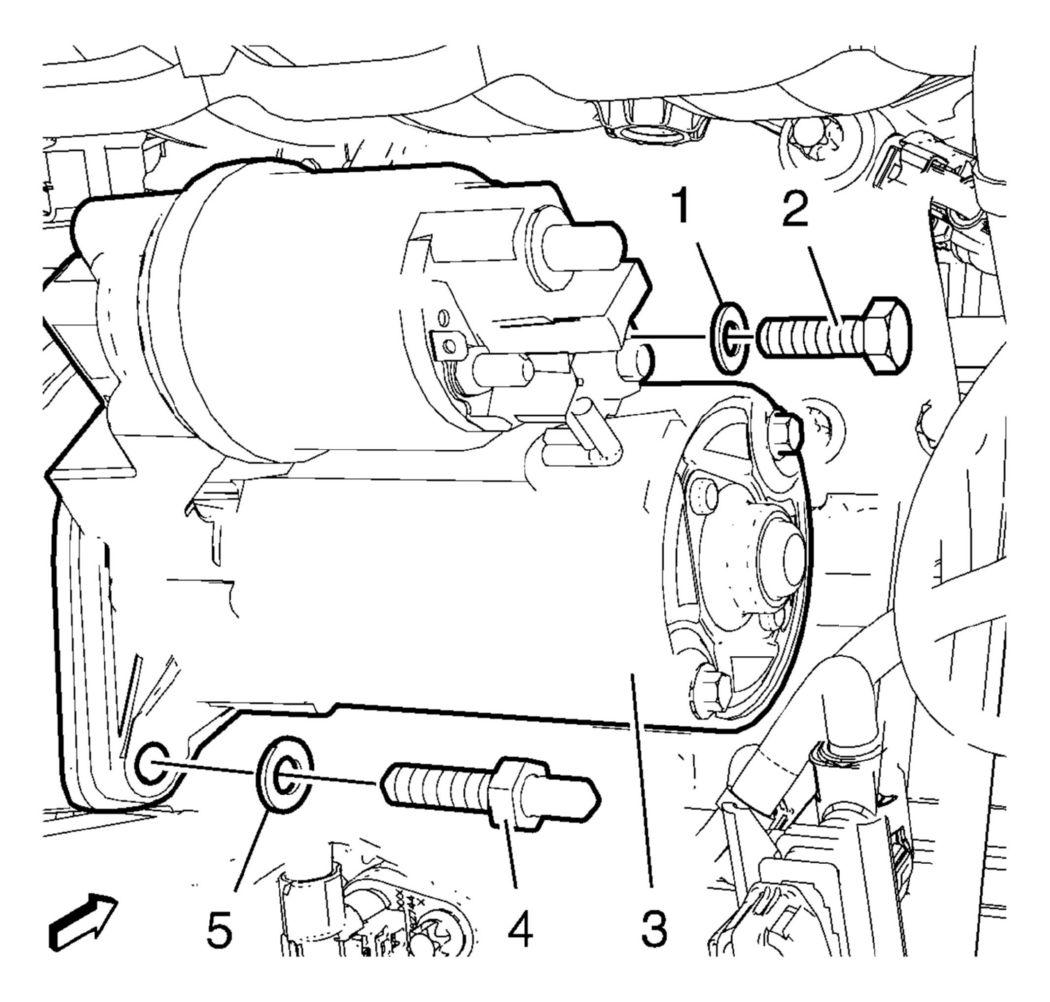

    Fig 1: Starter
    GM2191725Courtesy of GENERAL MOTORS COMPANY
  1. Install the starter (3).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the washer (5) and the starter bolt stud (4) and tighten to 25 N.m (18 lb ft).
  3. Install the upper starter bolt (2) and the washer (1) and tighten to 25 N.m (18 lb ft).

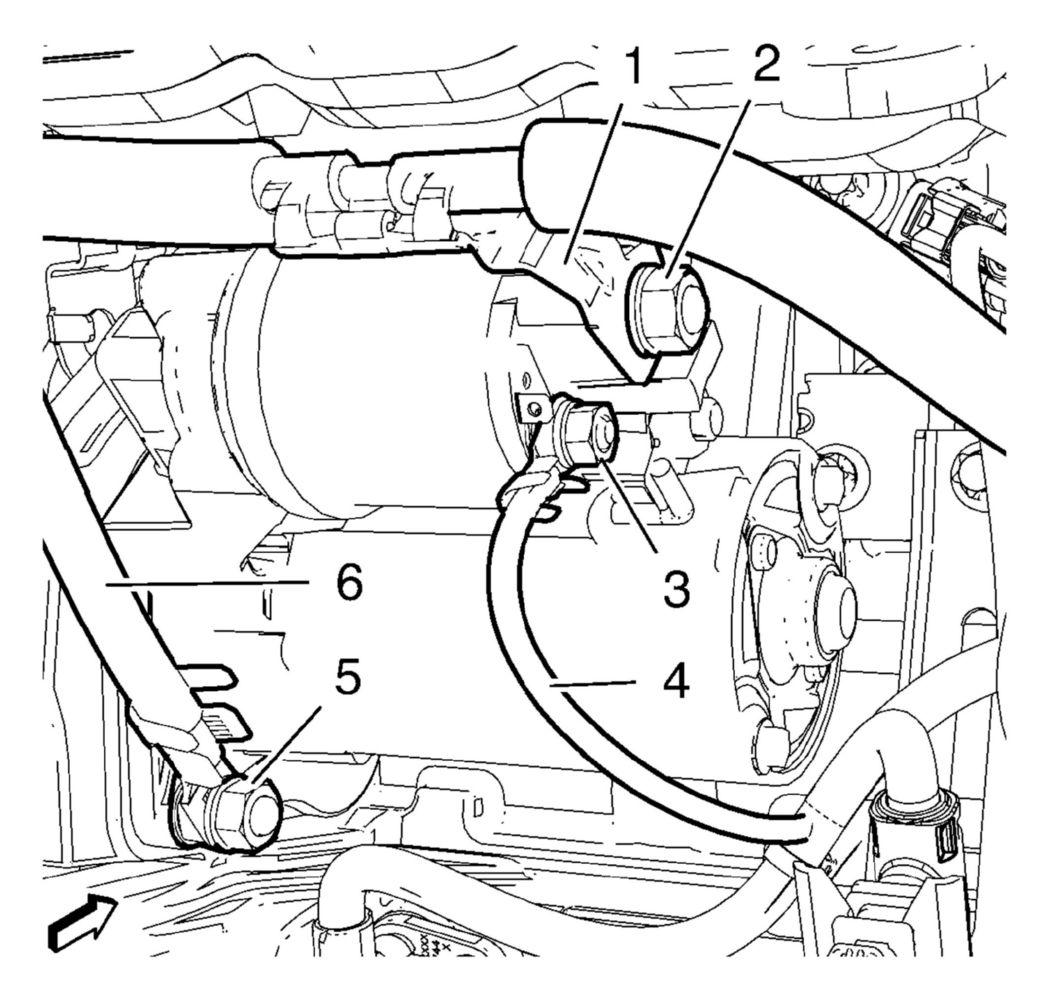

    4. Fig 2: Generator Positive Cable, Starter Positive Cable And Ground Cable
    GM2191724Courtesy of GENERAL MOTORS COMPANY
  4. Install the ground cable (6).
  5. Install the starter ground cable nut (5) and tighten to 12.5 N.m (111 lb in).
  6. Install the starter positive cable (4) to starter.
  7. Install the starter positive cable nut (3) and tighten.
  8. Install the starter and generator positive cable (1).
  9. Remove the starter and generator positive cable nut (2) and tighten to 12.5 N.m (111 lb in).
  10. If equipped, remove the front compartment splash shield. Refer to Front Compartment Insulator Replacement .
  11. If equipped, remove the engine shield.
  12. Lower the vehicle.
  13. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  14. Close the hood.
