Power, Ground, Serial Data and Traction Control

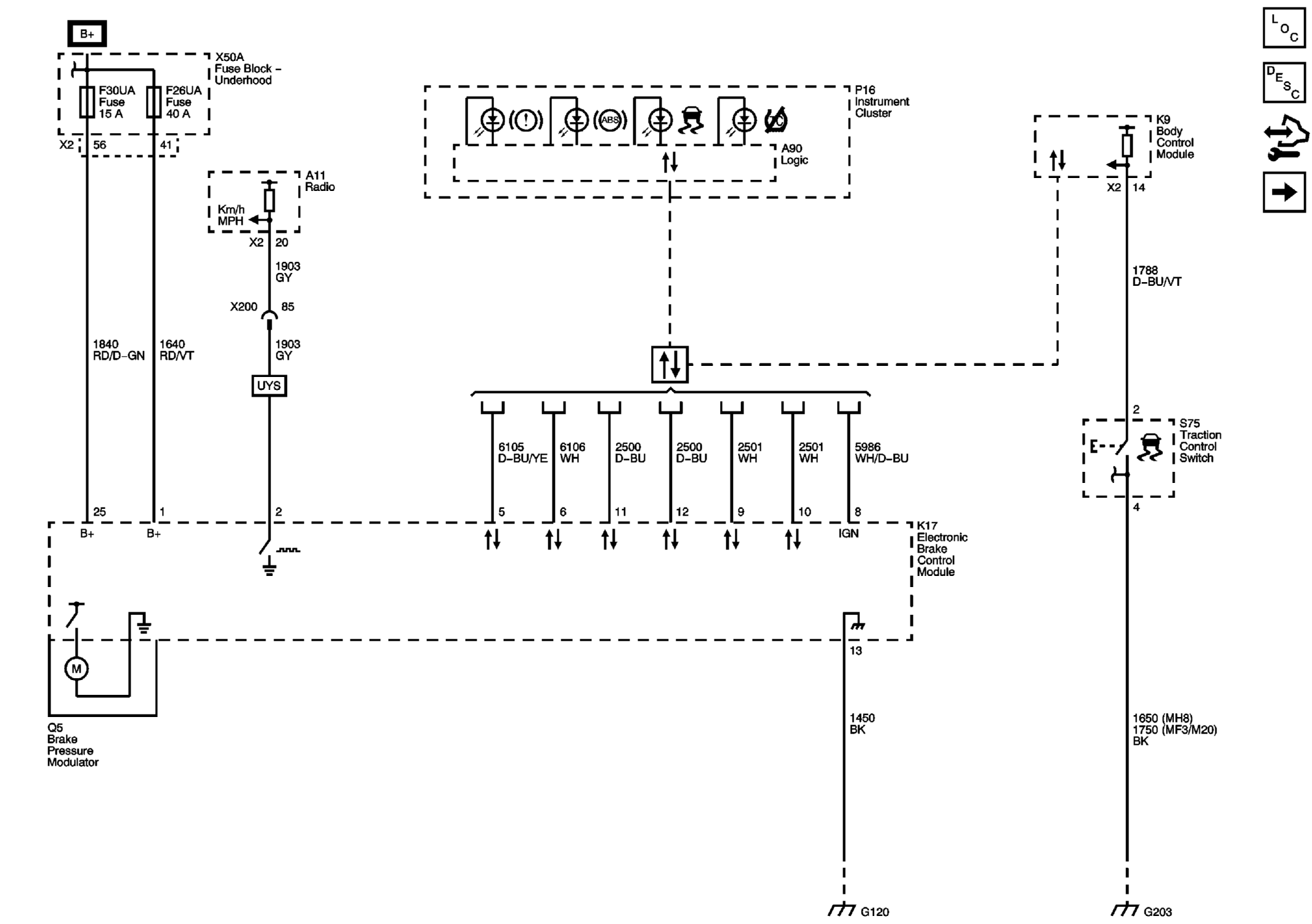

Fig 1: Power, Ground, Serial Data and Traction Control Wiring Schematic

GM2585450

Courtesy of GENERAL MOTORS COMPANY
