Keyless And Passive Entry (ATH)

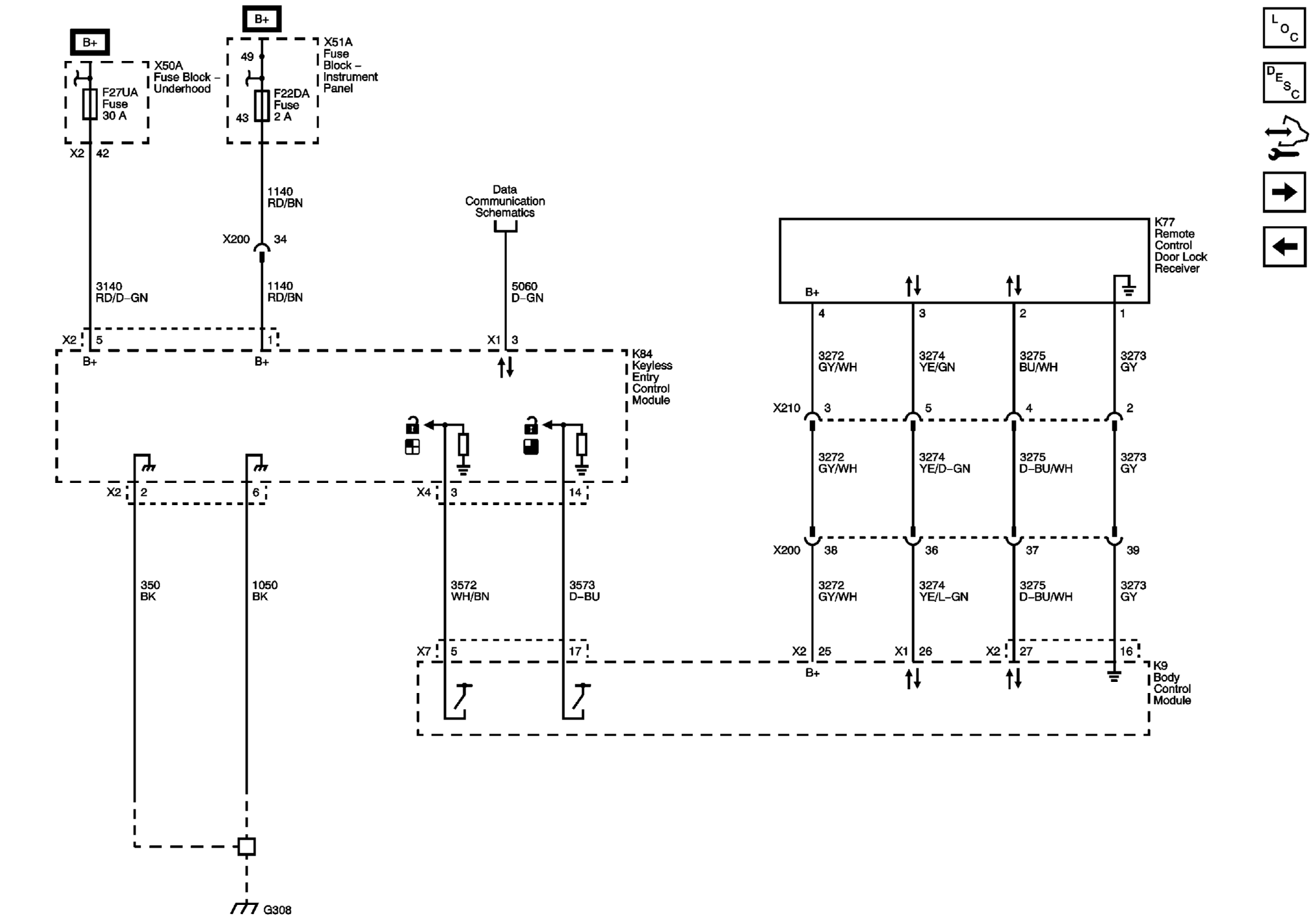

Fig 1: Keyless And Passive Entry (ATH) Wiring Schematic

GM2760029

Courtesy of GENERAL MOTORS COMPANY
