Steering Wheel Secondary/Configurable Control Wiring Schematics: W1Y

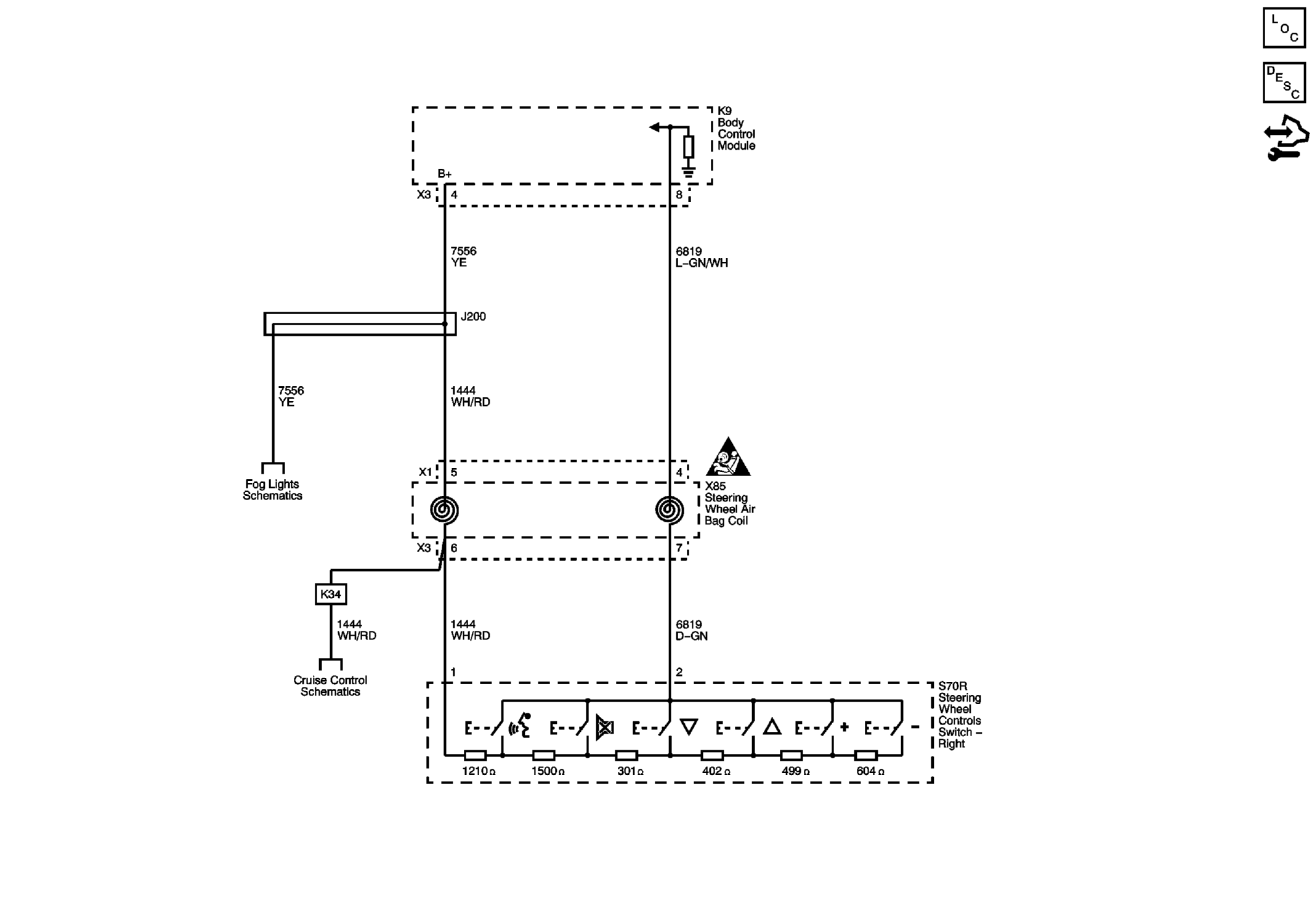

Fig 1: Steering Wheel Secondary/Configurable Control (W1Y) Wiring Schematic

GM2587579

Courtesy of GENERAL MOTORS COMPANY
