Radio Antenna Cable Replacement (Radio Cable)
Courtesy of GENERAL MOTORS COMPANY Radio Antenna Cable Replacement (Radio Cable)
| Callout |
Component Name |
Preliminary Procedures
Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement
. |

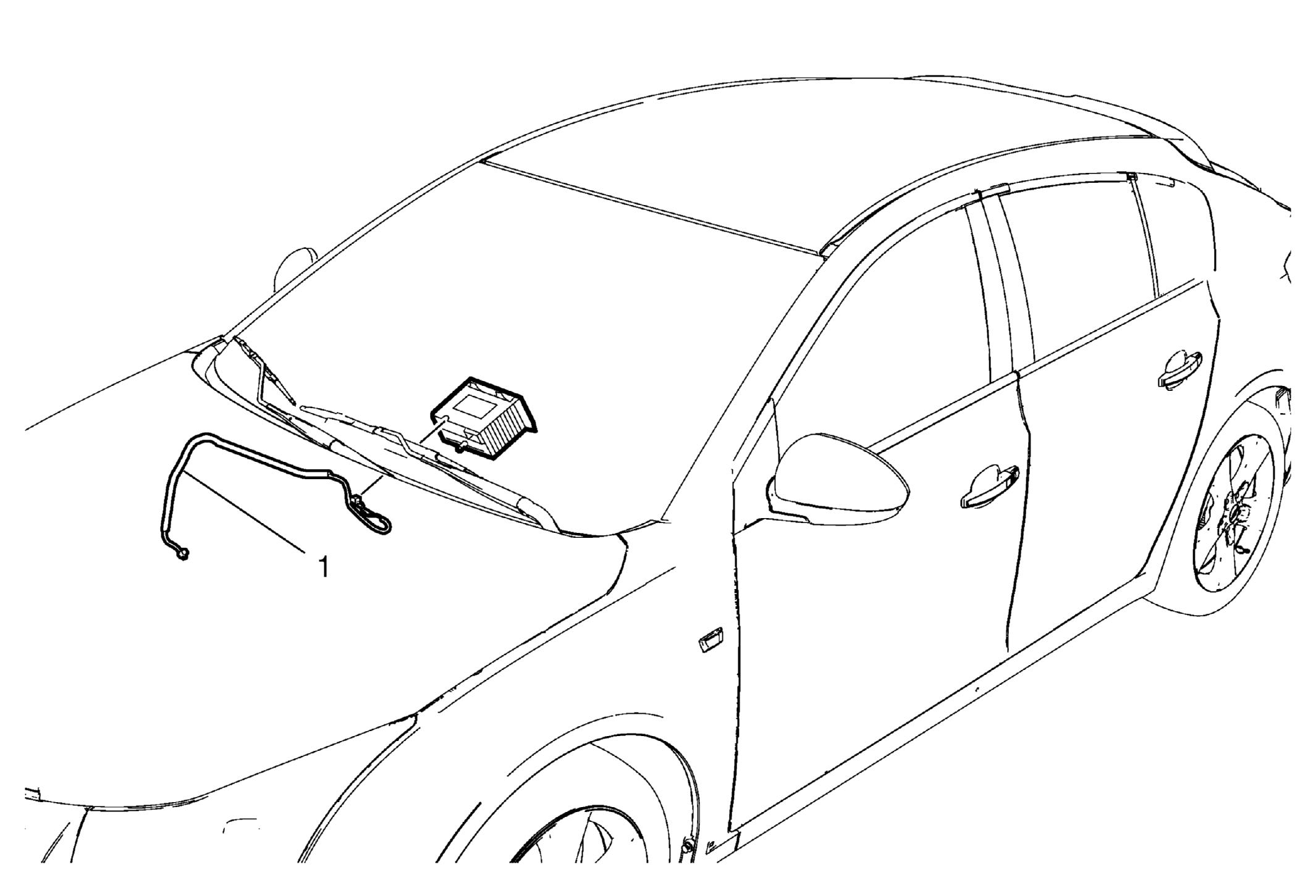

| 1 |
Radio Antenna Cable Procedures
- Locate the radio antenna cable in the instrument panel wiring harness assembly.
- Carefully cut the electrical tape.
- Disconnect electrical connectors.
- Replace the radio antenna cable.
- Secure the radio antenna cable within the electrical conduit.
|
