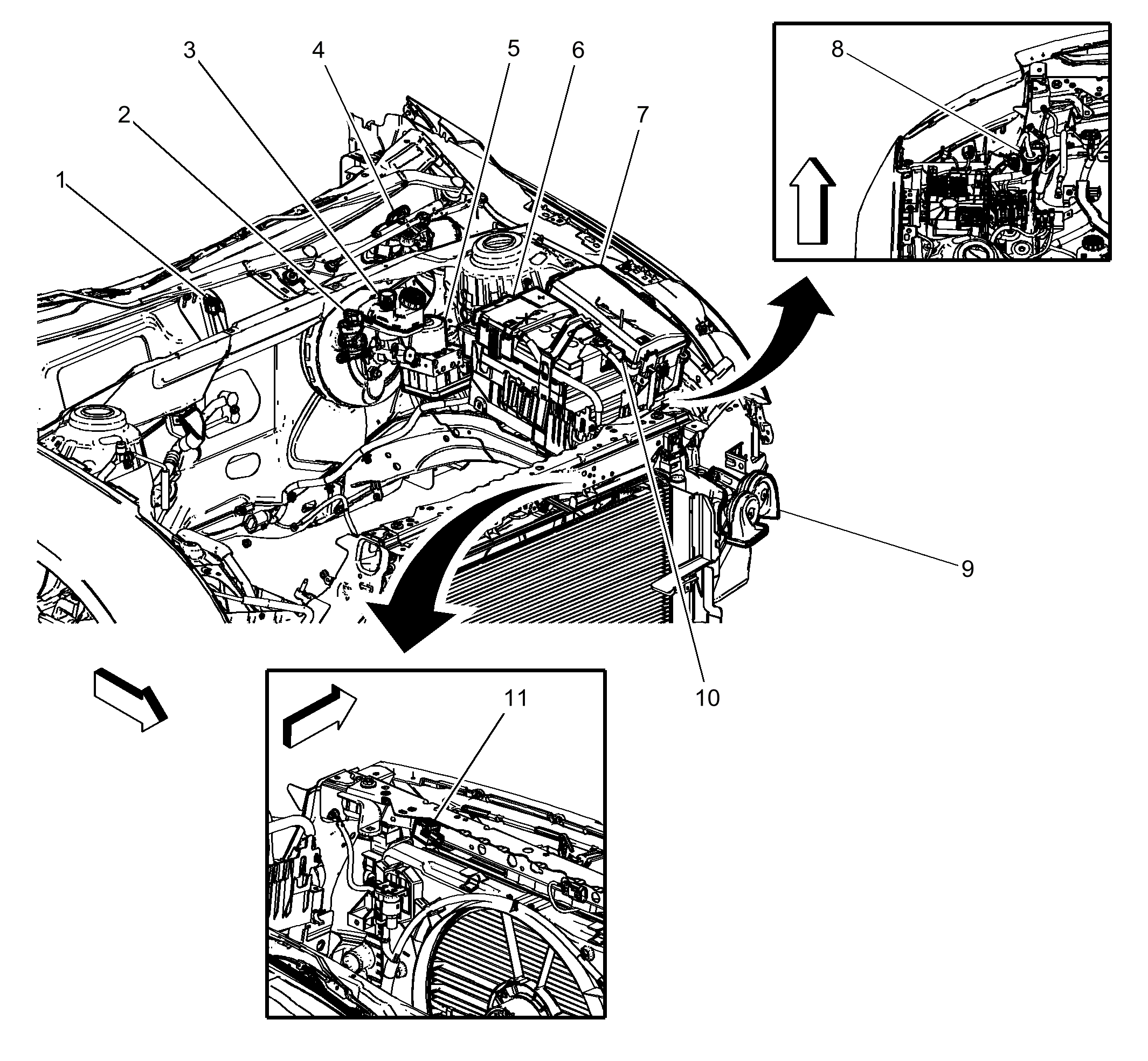

Left Side Of Engine Compartment Components
Left Side Of Engine Compartment Components
| Component Name | Callout |
|---|---|
| B108 Air Quality Sensor (C68) | 1 |
| B19C Brake Booster Vacuum Switch | 2 |
| B20 Brake Fluid Level Switch | 3 |
| M75 Windshield Wiper Motor | 4 |
| K17 Electronic Brake Control Module | 5 |
| X50D Fuse Block - Battery | 6 |
| X50A Fuse Block - Underhood | 7 |
| B18 Battery Current Sensor | 8 |
| P12 Horn | 9 |
| C1 Battery | 10 |
| B59L Front Impact Sensor - Left | 11 |
